Motherboard - ATX - LGA1200 Socket - Z590 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

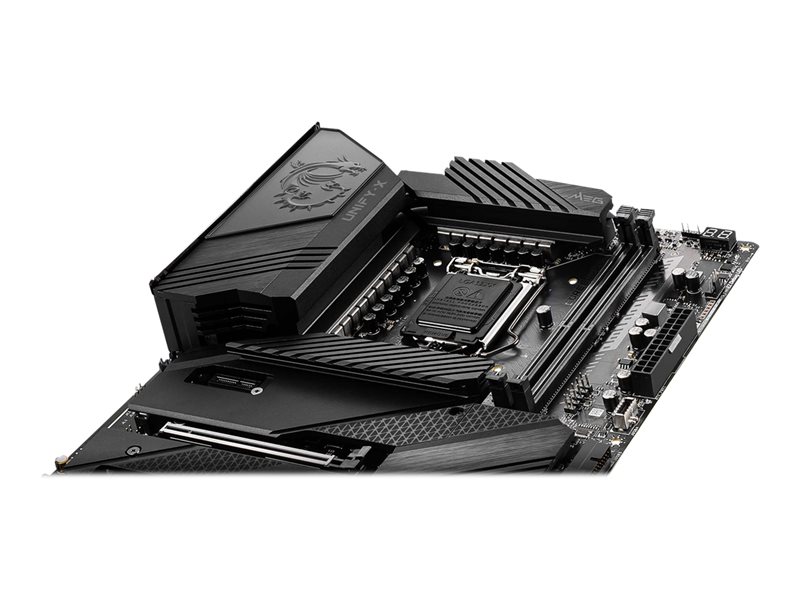

| Product Description | MSI MEG Z590 UNIFY-X - motherboard - ATX - LGA1200 Socket - Z590 |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z590 |
| Processor Socket | 1 x LGA1200 Socket |
| Compatible Processors | (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size | 64 GB |
| RAM Supported | 2 DIMM slots - DDR4, non-ECC, unbuffered |
| Storage Ports | 6 x SATA-600 (RAID), 4 x M.2 |
| USB / FireWire Ports | 1 x USB-C Gen 2x2 + 1 x USB 3.2 Gen 2 + 8 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z590 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (11th Gen Intel CPUs); PCIe 3.0 x16 mode (10th Gen Intel CPUs)) ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x4 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
| RAID Features | Intel Smart Response Technology |
| Interfaces | 8 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x USB 3.2 Gen 2 ¦ 1 x HDMI ¦ 2 x USB 2.0 ¦ 1 x USB-C Gen2x2 |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Wi-Fi antenna, Tuning controller, USB drive, case badge, MEG stickers, cable labels, 4 x M.2 screws, 4 x standoff for M.2 socket, screwdriver, cleaning brush, 1 to 2 RGB LED extension Y cable, CORSAIR RGB LED extension cable, Rainbow RGB LED extension cable |
| Cables Included | 4 x Serial ATA cable |
| Compliant Standards | FIPS, FISMA |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | AMD CrossFireX technology support, 8 Layer PCB, MSI PCIe Steel Slot, 2oz Copper PCB, 16 Phase Power Design, M.2 Shield FROZR, MSI Core Boost, Game Boost, pre-mounted I/O shield, MSI Steel Armor, Double ESD Protection, 90A Smart Power Stage, Intel Optane Memory Ready, MSI Audio Boost 5, MSI Mystic Light |
| LAN | |
| Network Controller | Intel I225-V / Intel AX210 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Supported RAM | |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 4800 MHz (O.C.), 5600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
