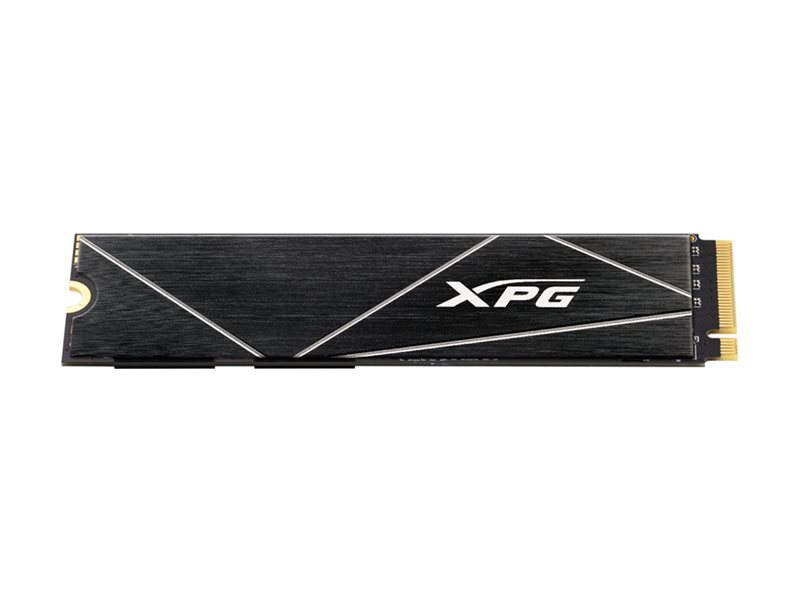

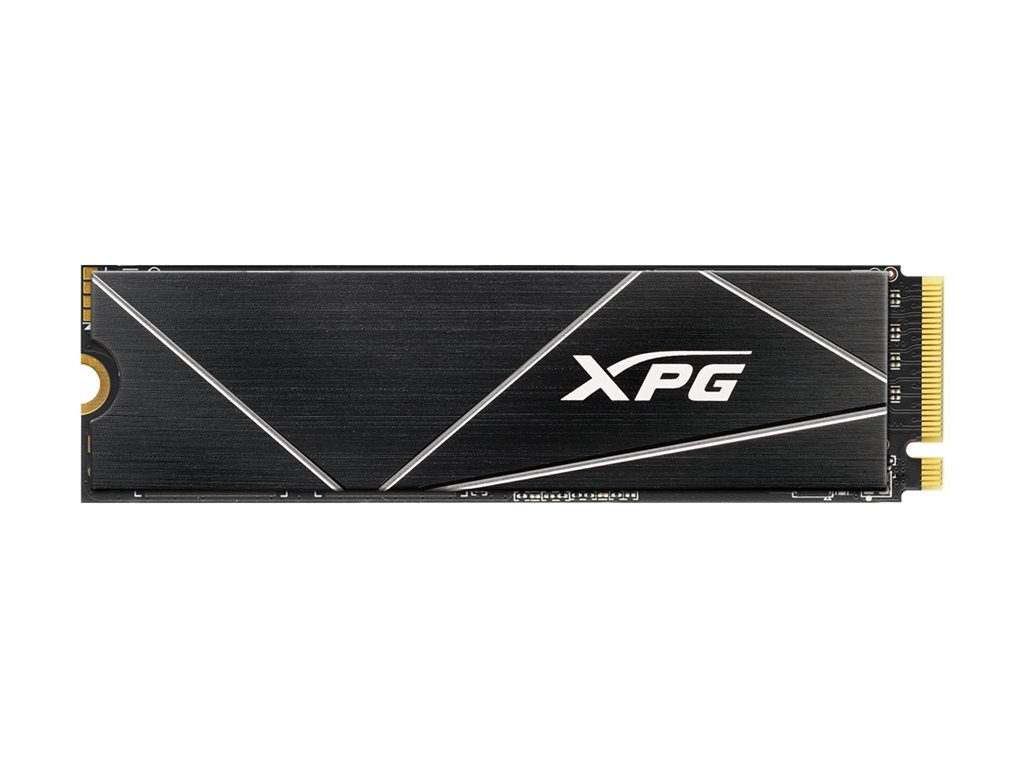

SSD - 2 TB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe) - 256-bit AES
| Main Specifications | |
|---|---|

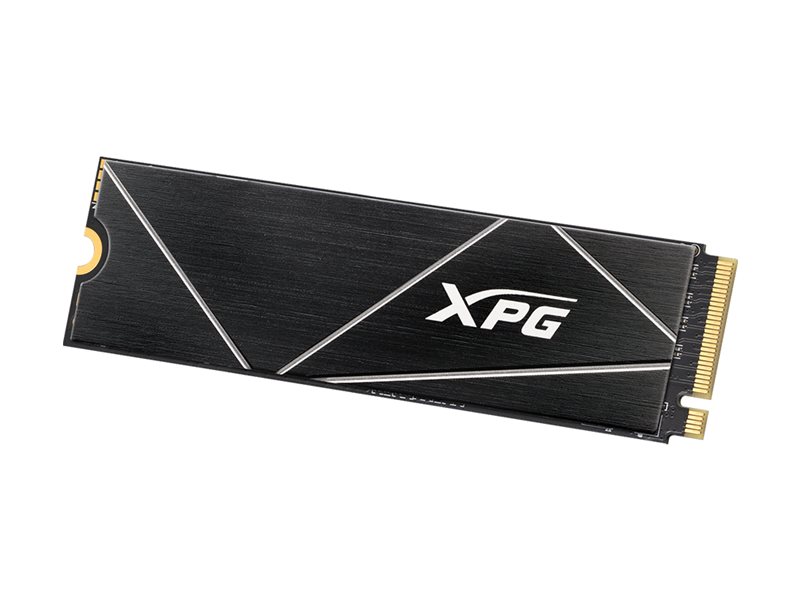

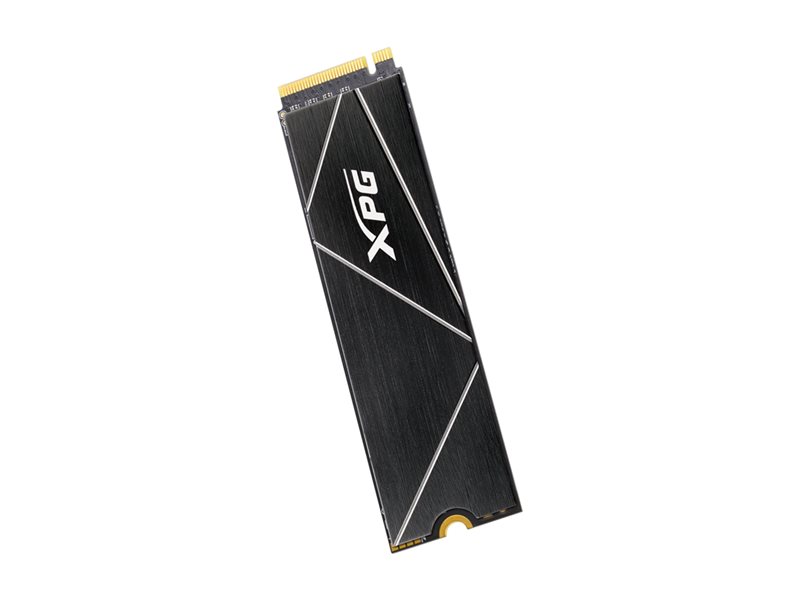

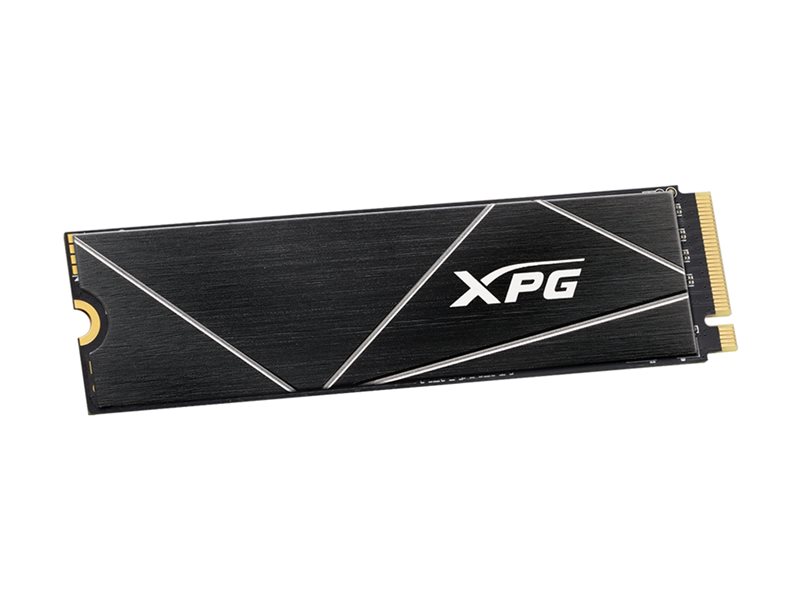

| Product Description | XPG GAMMIX S70 Blade - SSD - 2 TB - PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 2 TB |
| Encryption Algorithm | 256-bit AES |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | 3D NAND Technology, NVM Express (NVMe) 1.4, Advanced LDPC ECC Technology, DRAM cache, dynamic SLC caching, PS5 compatible, IG5236A1 controller, End-to-end data protection, RAID ready |
| Dimensions (WxDxH) | 0.9 in x 3.1 in x 0.1 in |
| Weight | 0.25 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 2 TB |
| Encryption Algorithm | 256-bit AES |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | 3D NAND Technology, NVM Express (NVMe) 1.4, Advanced LDPC ECC Technology, DRAM cache, dynamic SLC caching, PS5 compatible, IG5236A1 controller, End-to-end data protection, RAID ready |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Weight | 0.25 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, BSMI, KC, Morocco, EAC, RCM, UKCA, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Performance | |
| SSD Endurance | 1480 TB |
| Internal Data Rate | 7400 MBps (read) / 6700 MBps (write) |
| Maximum 4KB Random Write | 750000 IOPS |
| Maximum 4KB Random Read | 750000 IOPS |
| Reliability | |
| MTBF | 2,000,000 hours |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 Card |
| Compatible Bay | M.2 2280 |
