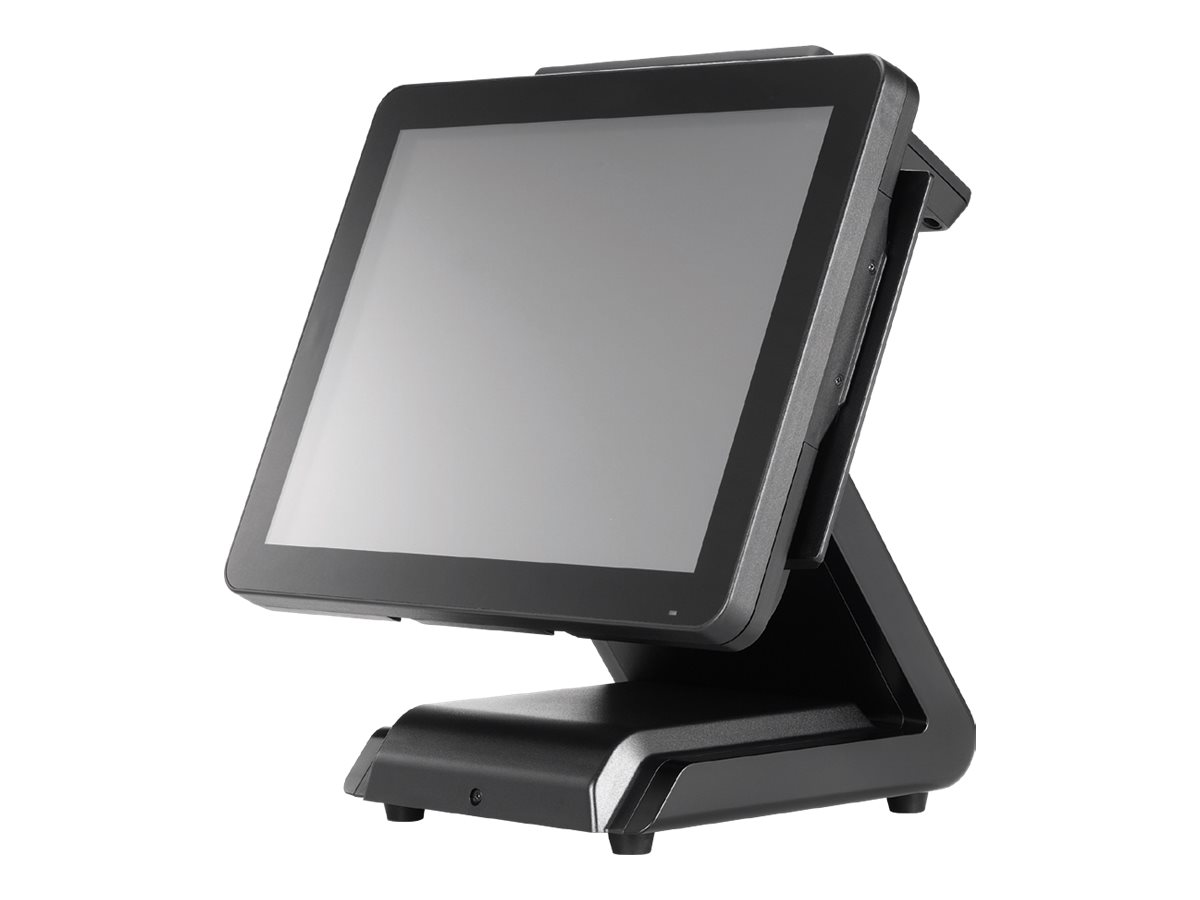

All-in-one 1 x Core i7 6700TE / up to 3.4 GHz - RAM 16 GB - SSD 256 GB - HD Graphics 530 - Gigabit Ethernet - Win 10 IoT Enterprise 2019 LTSC High End - monitor: LED 15" 1024 x 768 (XGA) touchscreen - black
| Main Specifications | |
|---|---|
| Product Description | Partner SP-1060 loT Advanced - all-in-one Core i7 6700TE 2.4 GHz - 16 GB - SSD 256 GB - LED 15" |
| Type | Point of sale terminal - all-in-one |
| Processor | 1 x Intel Core i7 (6th Gen) 6700TE / 2.4 GHz (up to 3.4 GHz, (Quad-Core) |
| Cache Memory | 8 MB |
| Cache Per Processor | 8 MB |
| RAM | 16 GB (installed) / 32 GB (max) - DDR4 SDRAM |
| Storage Controller | RAID |
| Hard Drive | SSD 256 GB |
| Optical Storage | No optical drive |
| Monitor | 15" - LED - 1024 x 768 (XGA) - touchscreen |
| Graphics Controller | Intel HD Graphics 530 |
| Networking | 1GbE |
| OS Provided | Windows 10 IoT Enterprise 2019 LTSC High End |
| Color | Black |
| Dimensions (WxDxH) | 14.2 in x 9.3 in x 13.2 in |
| General | |
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Built-in Devices | Speaker, magnetic card reader, capacitive touch screen |
| Color | Black |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x Mini PCIe |
| Interfaces | 2 x serial - DB-9 ¦ 2 x USB 2.0 ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x cash drawer - RJ-11 ¦ 4 x USB 3.0 ¦ 1 x audio line-out |
| Miscellaneous | |
| VESA Mounting Interface | Yes |
| Compliant Standards | EMV Level 3, IP65, IPX4 |
| RAM | |
| Installed Size | 16 GB (installed) / 32 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2133 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Power Provided | 120 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 80% |
| Storage Controller | |
| Type | RAID |
| Cache Memory | |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes (multi-touch) |
| Diagonal Size | 15" |
| Native Resolution | 1024 x 768 (XGA) |
| Widescreen Display | No |
| Image Brightness | 350 cd/m² |
| Monitor Features | Projected Capacitive Touch (PCT) technology, bezel-free design |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 530 |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise 2019 LTSC High End |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 256 GB |
| Dimensions & Weight | |
| Width | 14.2 in |
| Depth | 9.3 in |
| Height | 13.2 in |
| Processor / Chipset | |
| CPU | Intel Core i7 (6th Gen) 6700TE |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel Q170 |
