Rack-mountable - 4U - ATX - SATA - hot-swap 500 Watt - USB
| Main Specifications | |
|---|---|

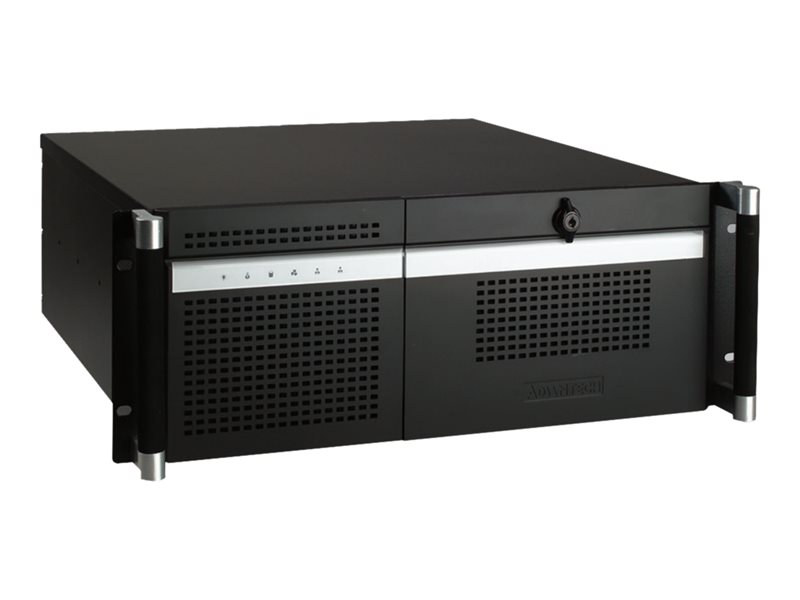

| Product Description | Advantech ACP-4320 - rack-mountable - 4U - ATX |
| Product Type | System cabinet |
| Form Factor | Rack-mountable - 4U |
| Built-in Devices | LED temperature indicator, Intelligent System Module |
| I/O Connectors | 2 x USB 2.0 |
| Supported Motherboards | ATX |
| Server Storage Bays | SATA - hot-swap |
| System Cabinet Features | Air filter, power LED, HDD LED |
| Power Device | Power supply 500 Watt |
| Voltage Required | AC 100-240 V |
| Dimensions (WxDxH) | 19 in x 18.9 in x 7 in |
| Weight | 38.8 lbs |
| General | |
| Form Factor | Rack-mountable - 4U |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX |
| Front Accessible Bays Qty | 5 |
| Hot-Swap Bays Qty | 2 |
| Server Swappable Drive Interface | SATA |
| Built-in Devices | LED temperature indicator, Intelligent System Module |
| Cooling System | 120 mm fan x 1 / 82 cfm ¦ 60 mm fan x 1 / 28 cfm |
| System Cabinet Features | Air filter, power LED, HDD LED |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x front accessible - 5.25" ¦ 1 (total) / 1 (free) x front accessible - 3.5" ¦ 2 (total) / 2 (free) x hot-swap - 2.5" / 3.5" shared |
| Interfaces | 2 x USB 2.0 |
| Miscellaneous | |
| Compliant Standards | FCC |
| Power | |
| Power Device | Power supply |
| Voltage Required | AC 100-240 V |
| Power Provided | 500 Watt |
| 80 PLUS Certification | 80 PLUS Bronze |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 18.9 in |
| Height | 7 in |
| Weight | 38.8 lbs |
