Network surveillance camera - PTZ - color - 8.6 MP - component, HDMI - LAN - USB 2.0 - H.264 - DC 24 V - TAA Compliant
| Main Specifications | |
|---|---|

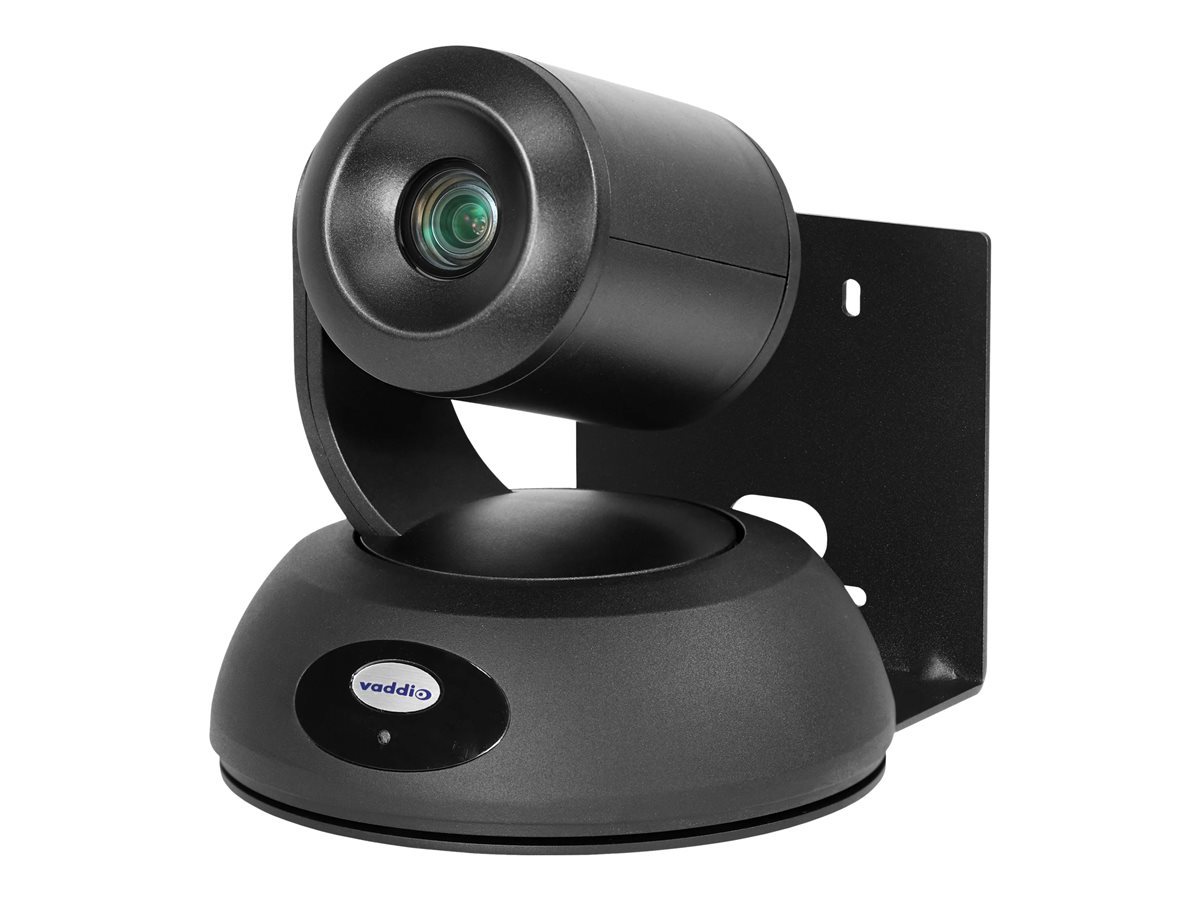

| Product Description | Vaddio RoboSHOT Elite Series 30E QUSB System - network surveillance camera - TAA Compliant |
| Device Type | Network surveillance camera - pan / tilt / zoom |
| Dimensions (WxDxH) | 7.1 in x 6.8 in x 6.9 in |
| Weight | 4.85 lbs |
| Color | Black |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 30 x |
| Video Modes | 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 720/30p, 1080/30i, 720/25p, 1080/25i |
| Optical Sensor Type | Exmor R CMOS - 1/2.5" - 8.6 MP |
| Panning Range (degree) | -150 to +150 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | USB 2.0, component video, HDMI, LAN |
| Control Interface | RS-232 |
| Cables Included | 1 - USB cable - external - 6 ft |
| Voltage | DC 24 V |
| Features | Manual white balance, Backlight Compensation (BLC), white balance, Automatic Tracing White (ATW), manual gain control, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, 10x IntelliZoom |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 7.1 in |
| Depth | 6.8 in |
| Height | 6.9 in |
| Weight | 4.85 lbs |
| Localization | United States |
| Expansion / Connectivity | |

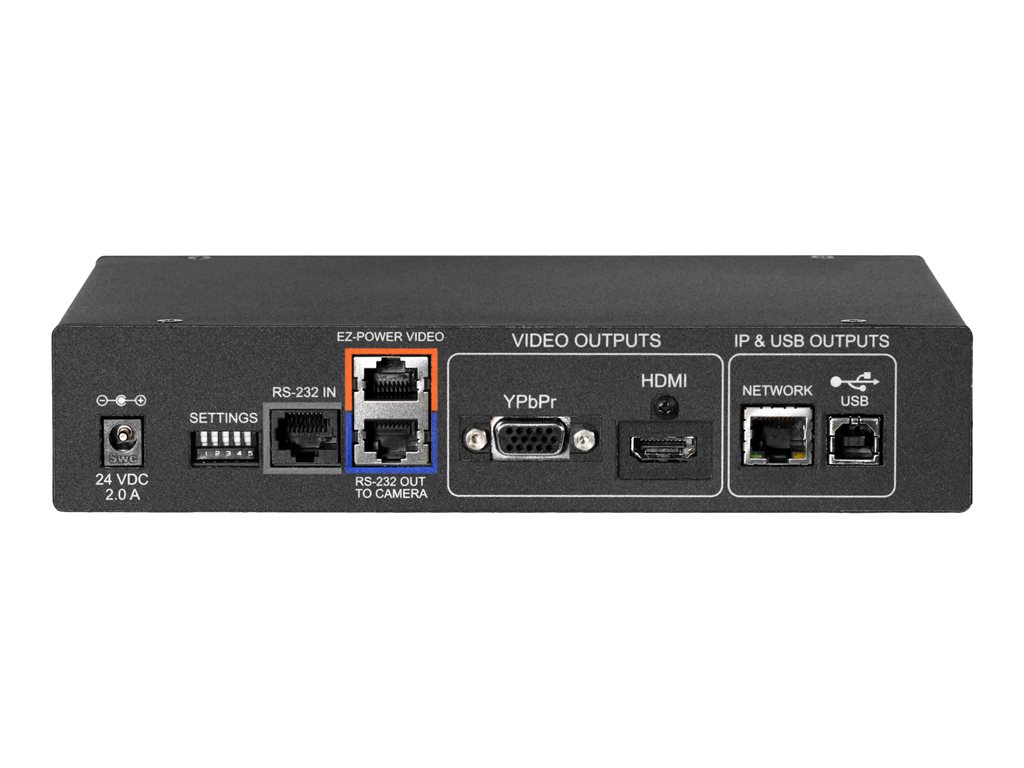

| Ports | Serial RS-232 - RJ-45 ¦ EZPower HD video - RJ-45 ¦ LAN - RJ-45 ¦ USB ¦ Component video output ¦ HDMI output ¦ Serial RS-232 output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

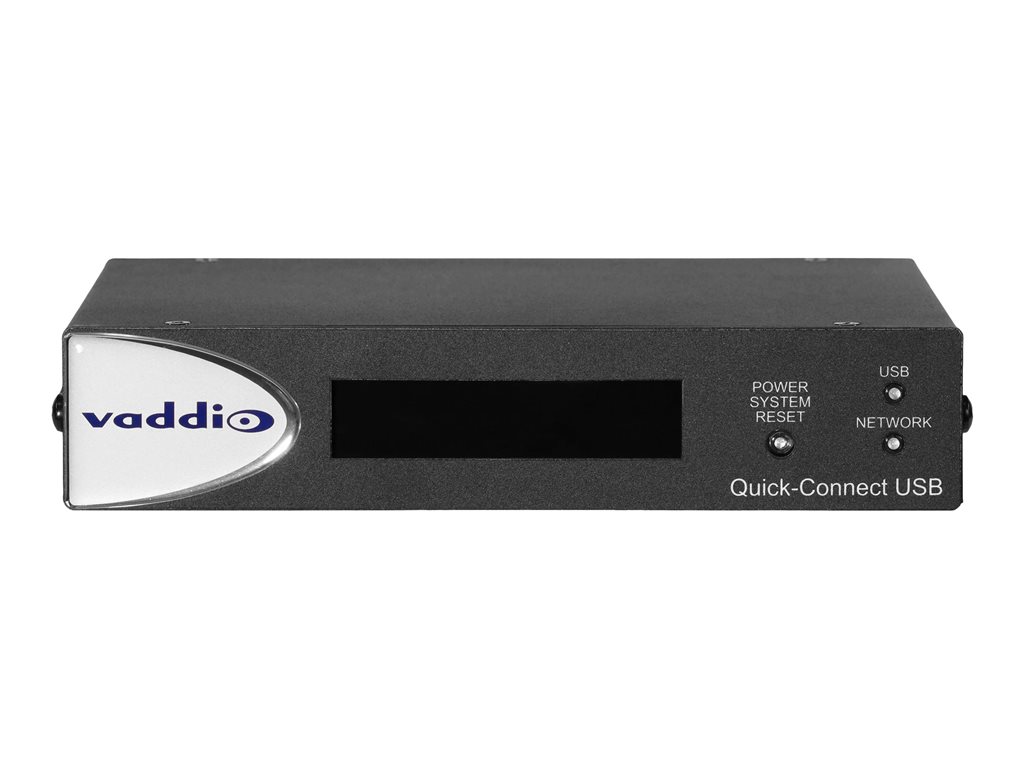

| Included Accessories | Wall mount kit, Vaddio IR Remote Commander, 4 rubber feet, Quick-Connect USB Interface (QUSB) |
| Cables Included | 1 x USB cable - external - 6 ft |
| TAA Compliant | Yes |
| Color | Black |
| Power | |
| Power Requirements | DC 24 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264 |
| Video Modes | 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 720/30p, 1080/30i, 720/25p, 1080/25i |
| Features | Manual white balance, Backlight Compensation (BLC), white balance, Automatic Tracing White (ATW), manual gain control, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, 10x IntelliZoom |
| Lens Construction | |
| Optical Zoom | 30 x |
| Horizontal Field of View (degree) | 70.2 |
| Image Sensor | |
| Type | 8.6 MP Exmor R CMOS 1/2.5" |
| Interfaces | |
| Video | Component video, HDMI |
| Network Interface | LAN |
| Computer Interface | USB 2.0 |
| Control Interface | RS-232 |
| Panning | |
| Range (degree) | -150 to +150 |
| Speed (degree/sec) | Up to 120 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
