Antenna - navigation, cellular - 6.2 dBi (for 2.4 - 2.5 GHz), 7.3 dBi (for 4.9 - 6 GHz) - wall-mountable, pole mount, panel mountable, threaded bolt mount
| Main Specifications | |
|---|---|

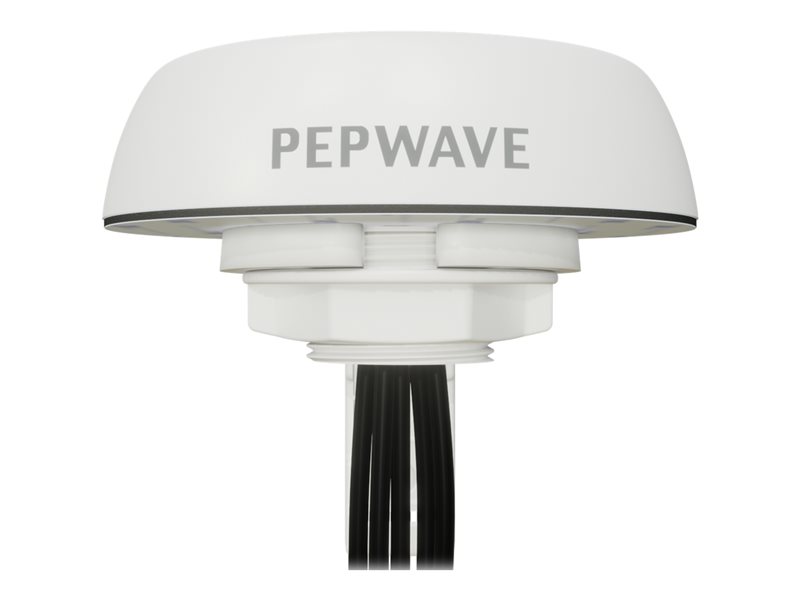

| Product Description | Peplink | Pepwave Puma 401 - antenna |
| Device Type | Antenna |
| Intended For | Navigation, cellular |
| Antenna Placing / Mounting | Wall-mountable, pole mount, panel mountable, threaded bolt mount |
| Dimensions (WxDxH) | 5.1 in x 5.1 in x 1.4 in |
| Color | White |
| Compatibility | GPS, 4G, 5G |
| Frequency Range | 2.4 - 2.5 GHz, 4.9 - 6 GHz |
| Gain | 6.2 dBi (for 2.4 - 2.5 GHz), 7.3 dBi (for 4.9 - 6 GHz) |
| Features | Linear polarization, MIMO technology, MIL-STD-810F, IP 68, VSWR < 2.0, 2 elements |
| General | |
| Product Type | Antenna |
| Intended For | Navigation, cellular |
| Antenna Placing / Mounting | Wall-mountable, pole mount, panel mountable, threaded bolt mount |
| Width | 5.1 in |
| Depth | 5.1 in |
| Height | 1.4 in |
| Color | White |
| Product Material | PC/ABS |
| Miscellaneous | |
| Cables Included | 5 x antenna cable - 6.6 ft |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.9 in |
| Shipping Depth | 8.5 in |
| Shipping Height | 4.3 in |
| Antenna | |
| Compatibility | GPS, 4G, 5G |
| Frequency Range | 2.4 - 2.5 GHz, 4.9 - 6 GHz |
| Impedance | 50 Ohm |
| Gain | 6.2 dBi (for 2.4 - 2.5 GHz), 7.3 dBi (for 4.9 - 6 GHz) |
| Max Power | 10 Watt |
| Max Wind Speed | 136.7 mph |
| Features | Linear polarization, MIMO technology, MIL-STD-810F, IP 68, VSWR < 2.0, 2 elements |
| Connector Provided | |
| Type | 5 x antenna - SMA (male) |
