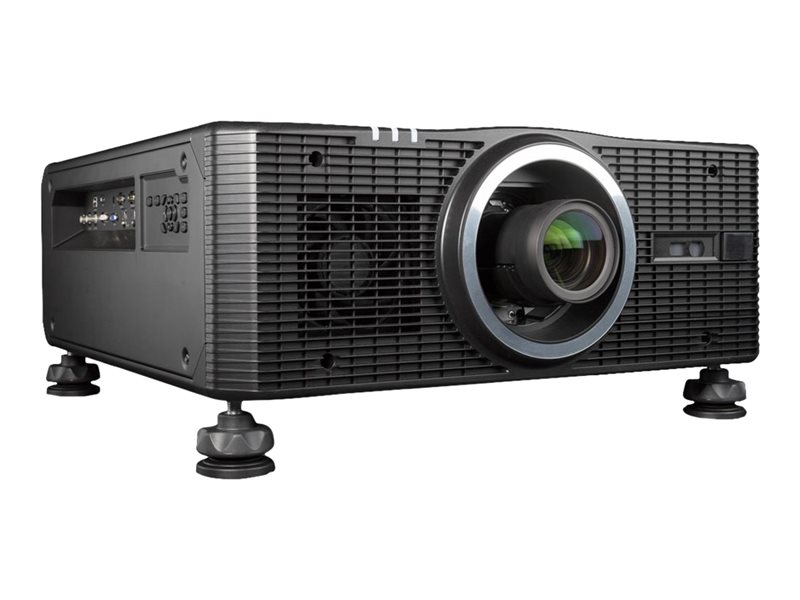

DLP projector - laser/phosphor - 3D - 18500 ANSI lumens - WUXGA (1920 x 1200) - 16:10 - no lens - LAN
| Main Specifications | |
|---|---|
| Product Description | Barco G100-W22 - DLP projector - no lens - 3D - LAN |
| Device Type | DLP projector |
| 3D Capable | Yes (3D glasses sold separately) |
| Brightness | 18500 ANSI lumens |
| Contrast Ratio | 1100:1 / 5500:1 (dynamic) |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Lens | No lens |
| Lens Shift Direction | Horizontal, vertical |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hour(s) |
| Video Input | LAN |
| Video Modes | 720p |
| Power | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 1200 watt |
| Dimensions (WxDxH) | 25.6 in x 28 in x 9.9 in |
| Weight | 119.05 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | DLP projector |
| 3D Capable | Yes (3D glasses sold separately) |
| Networking | Ethernet |
| Expansion / Connectivity | |

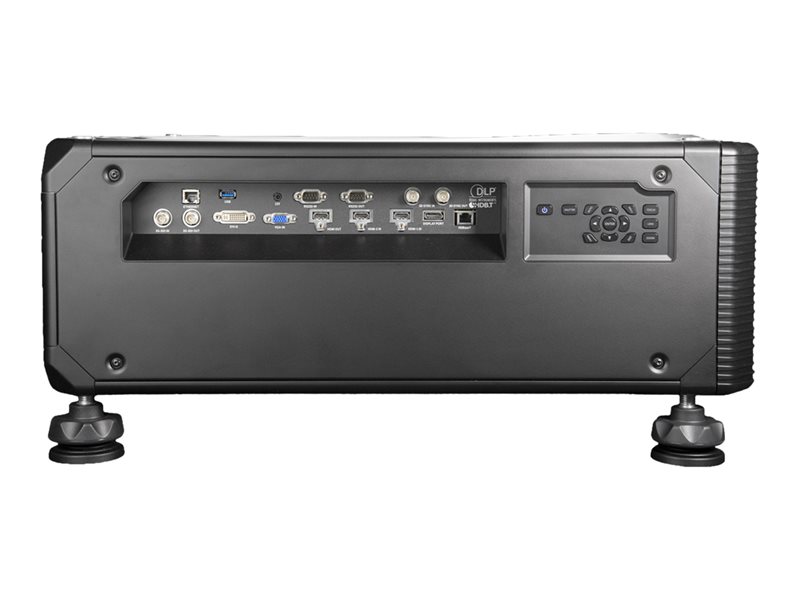

| Interfaces | 1 x HDBaseT - RJ-45 ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x serial RS-232 input - 9 pin D-Sub (DB-9) (management) ¦ 1 x VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x 3G-SDI input - BNC ¦ 1 x network - RJ-45 (management) ¦ 1 x USB (management) ¦ 1 x serial RS-232 output - 9 pin D-Sub (DB-9) (management) ¦ 1 x 3G-SDI output - BNC ¦ 1 x DVI-D ¦ 1 x HDMI output - 19 pin HDMI Type A ¦ 1 x DisplayPort - 20 pin DisplayPort (1.2) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Included Accessories | Wireless remote control |
| Compliant Standards | FCC Class A certified, cTUVus, CCC, EAC, KCC, RCM, BIS, BSMI, DisplayPort 1.2a |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 1200 watt |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Sound Emission | 42 dB |
| Sound Emission (Economic Mode) | 38 dB |
| Video Input | |
| Video Interfaces | VGA, HDMI, DVI, 3G-SDI, DisplayPort, HDBaseT |
| Video Modes | 720p |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Dimensions & Weight | |
| Width | 25.6 in |
| Depth | 28 in |
| Height | 9.9 in |
| Weight | 119.05 lbs |
| Projector | |
| Brightness | 18500 ANSI lumens |
| Contrast Ratio | 1100:1 / 5500:1 (dynamic) |
| Uniformity | 90 % |
| Resolution | WUXGA - WUXGA (1920 x 1200) (native) / 4096 x 2160 (resized) |
| Native Aspect Ratio | 16:10 |
| Max Sync Rate (V x H) | 120 Hz |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hour(s) |
| Controls & Adjustments | Keystone correction |
| Features | 1-chip DLP technology, outdoor, 24/7 operation, Constant Light Output (CLO), sealed DLP core, 360° projection, embedded warp and blend, Active Stereo 3D |
| Lens | |
| Type | No lens |
| Lens Shift Type | Powered |
| Lens Shift Direction | Horizontal, vertical |
