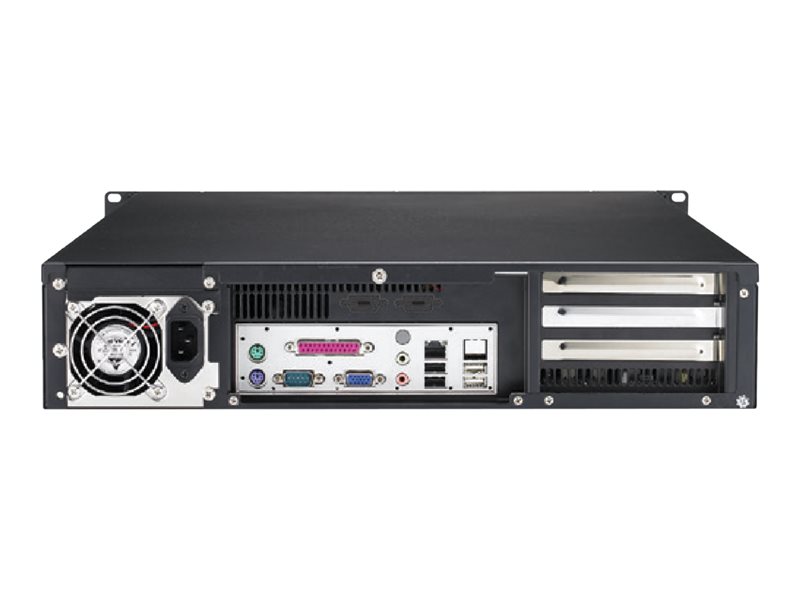

Rack-mountable - 2U - ATX 350 Watt (ATX) - USB/PS/2
| Main Specifications | |
|---|---|
| Product Description | Advantech ACP-2010MB - rack-mountable - 2U - ATX |
| Product Type | System cabinet |
| Form Factor | Rack-mountable - 2U |
| I/O Connectors | 2 x USB 2.0 ¦ 1 x PS/2 |
| Supported Motherboards | ATX, microATX |
| System Cabinet Features | Air filter |
| Power Device | Power supply 350 Watt (ATX) |
| Dimensions (WxDxH) | 19 in x 18.9 in x 3.5 in |
| Weight | 23.59 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Form Factor | Rack-mountable - 2U |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX, microATX |
| Internal Bays Qty | 2 |
| Front Accessible Bays Qty | 2 |
| Cooling System | Front: 80 mm fan x 2 / 47 cfm |
| System Cabinet Features | Air filter |
| Expansion / Connectivity | |
| Expansion Bays | 1 (total) / 1 (free) x front accessible - 5.25" ¦ 1 (total) / 1 (free) x front accessible - 3.5" ¦ 2 (total) / 2 (free) x internal - 3.5" |
| Expansion Slots | 3 |
| Interfaces | 2 x USB 2.0 ¦ 1 x PS/2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | FCC |
| Power | |
| Power Device | Power supply |
| Specification Compliance | ATX |
| Power Provided | 350 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 18.9 in |
| Height | 3.5 in |
| Weight | 23.59 lbs |
