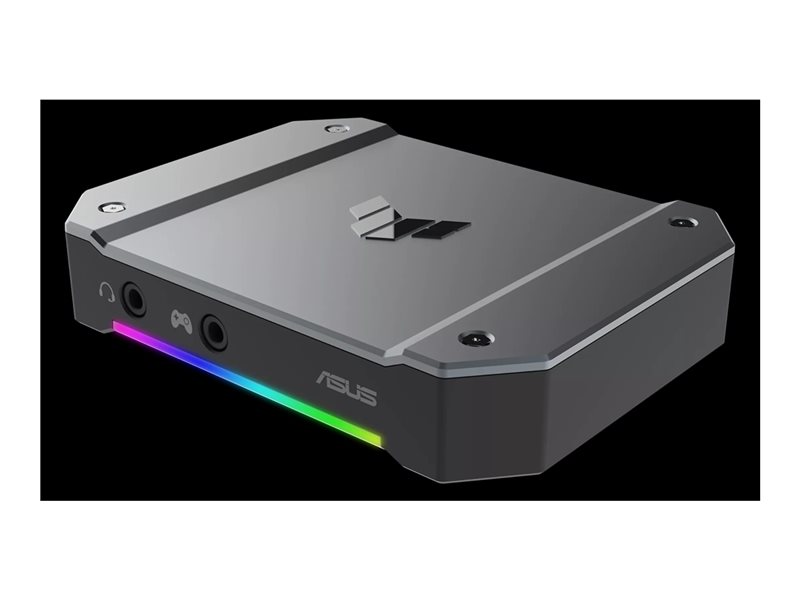

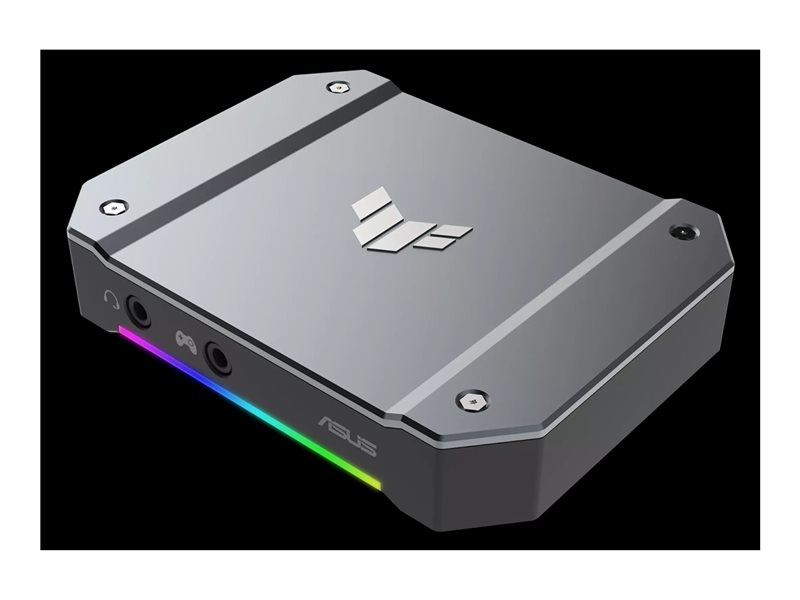

Video capture adapter - USB-C 3.2 Gen 1
| Main Specifications | |
|---|---|

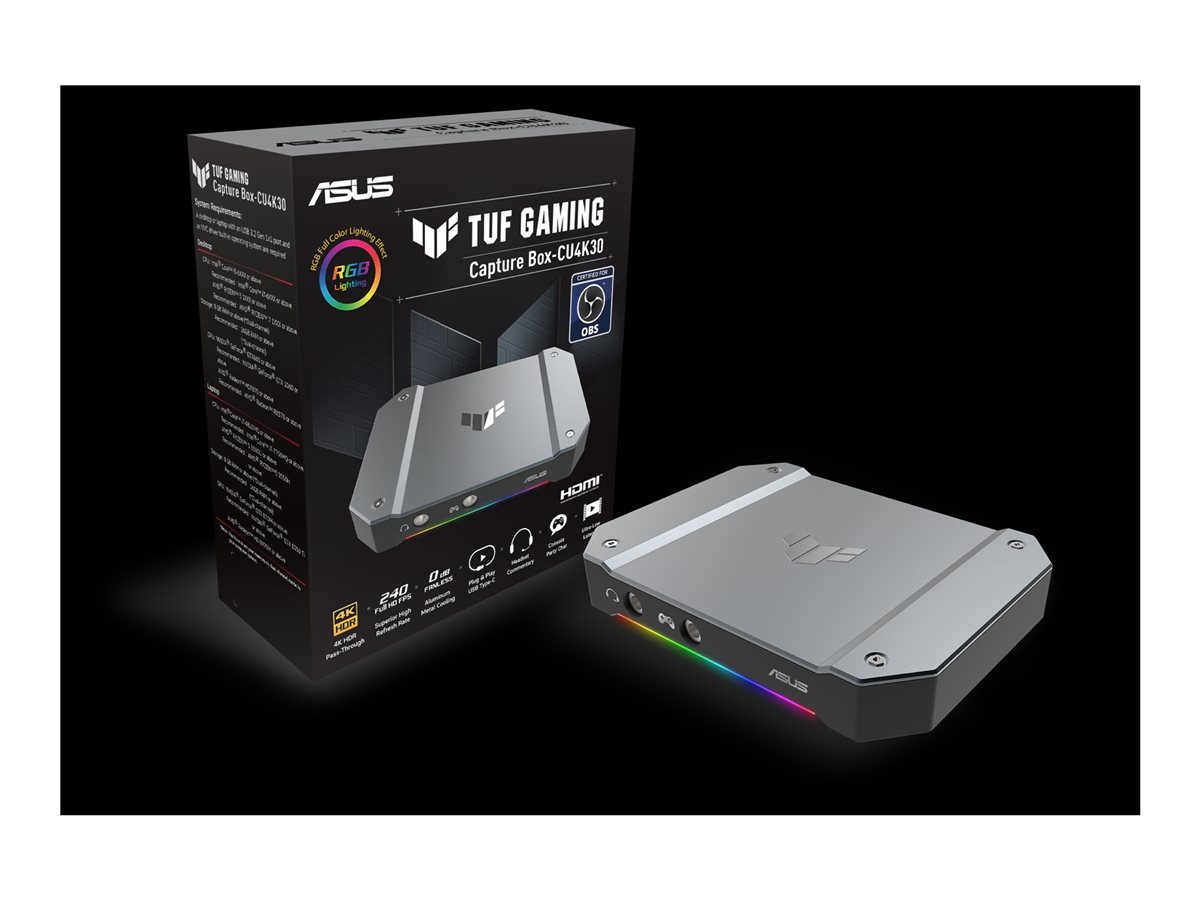

| Product Description | ASUS TUF GAMING CAPTURE BOX-CU4K30 - video capture adapter - USB-C 3.2 Gen 1 |
| Device Type | Video capture adapter |
| Interface Type | USB-C 3.2 Gen 1 |
| Dimensions (WxDxH) | 4.1 in x 3.1 in x 0.8 in |
| Weight | 6.1 oz |
| Video Input | HDMI input, HDMI output |
| Video Modes | 2160/60p, 1440/144p, 1080/240p, 2160/30p, 1080/60p, 1080/30p, 720/30p, 720/60p, 576p, 480p |
| Digital Video Capture Speed | 120 frames per second |
| Digital Video Capture Resolution | 1920 x 1080, 2560 x 1440, 3840 x 2160, 1280 x 720 |
| Audio Input Support | Standard |
| Features | 4Kp60 Pass-Through, High Dynamic Range (HDR), RGB lighting |
| General | |
| Device Type | Video capture adapter |
| Interface Type | USB-C 3.2 Gen 1 |
| Width | 4.1 in |
| Depth | 3.1 in |
| Height | 0.8 in |
| Weight | 6.1 oz |
| Expansion / Connectivity | |

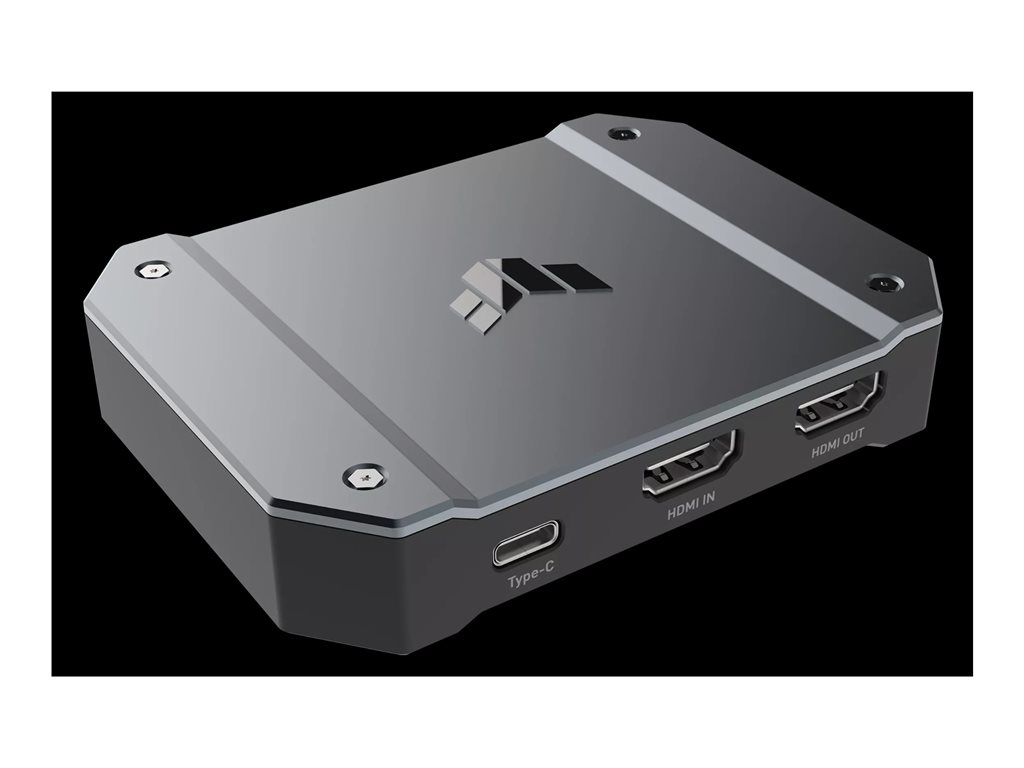

| Interfaces | 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 1 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x remote control - input ¦ 1 x headset - mini-phone 3.5 mm |
| Connections | USB-C |
| Miscellaneous | |

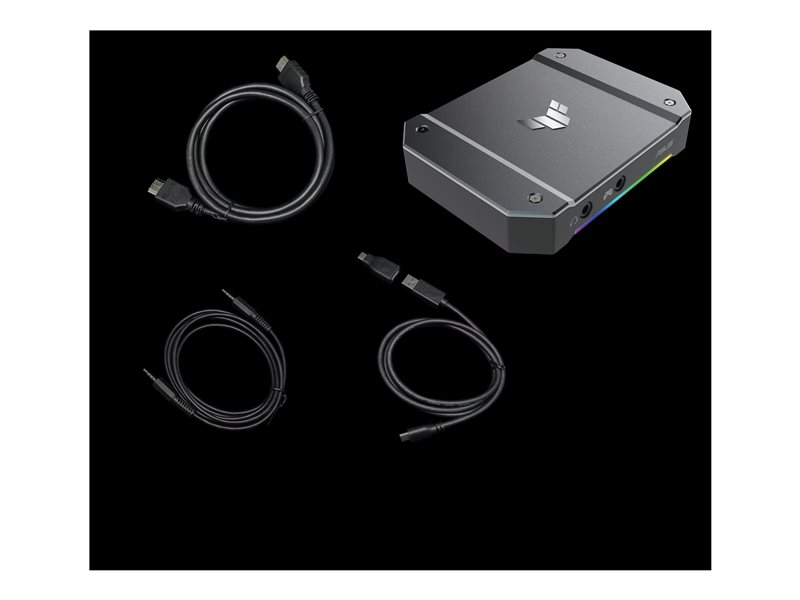

| Cables Included | 1 x USB-C to USB-A cable - external ¦ 1 x HDMI cable - external ¦ 1 x USB-C to USB-A adapter - external ¦ 1 x audio cable - external |
| Device Features | USB powered |
| Software / System Requirements | |
| System Requirements Details | Core i7 RAM 8 GB ¦ AMD Ryzen 5 RAM 8 GB |
| Video | |
| Interface Type | HDMI input, HDMI output |
| Video Modes | 2160/60p, 1440/144p, 1080/240p, 2160/30p, 1080/60p, 1080/30p, 720/30p, 720/60p, 576p, 480p |
| Digital Video Capture Speed | 120 frames per second |
| Digital Video Capture Resolution | 1920 x 1080, 2560 x 1440, 3840 x 2160, 1280 x 720 |
| Audio Input Support | Standard |
| Features | 4Kp60 Pass-Through, High Dynamic Range (HDR), RGB lighting |
