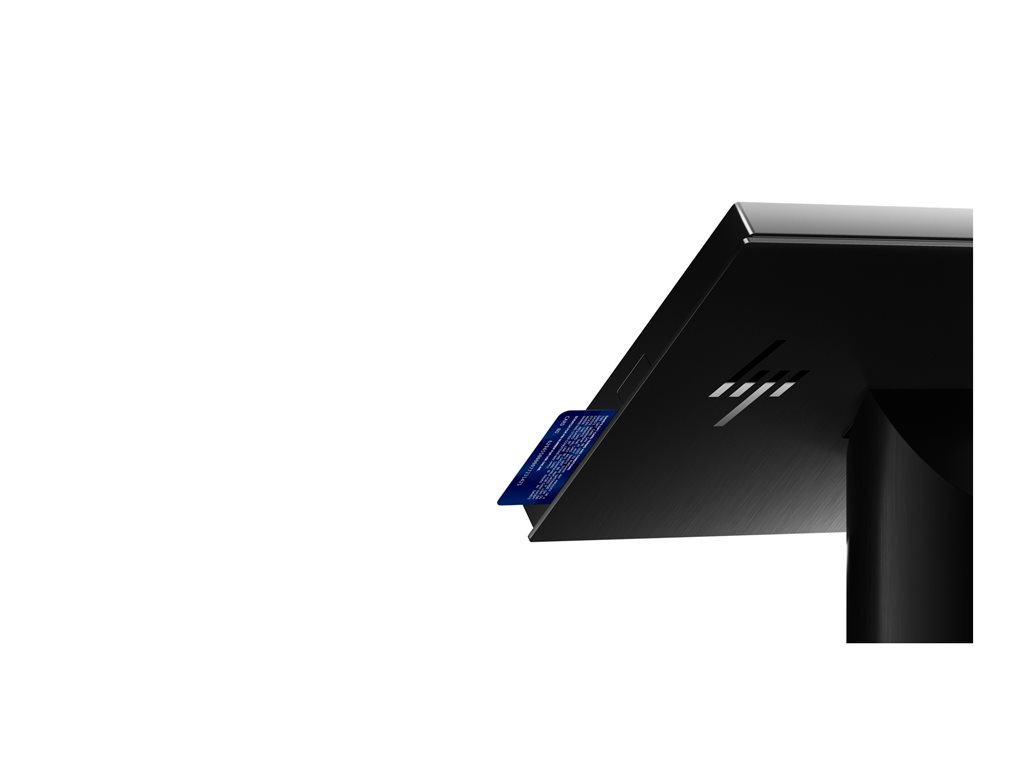

Magnetic card reader (Tracks 1, 2 & 3) - 8 pin male Molex 51021-0800 - for Engage One Pro
| Main Specifications | |
|---|---|
| Product Description | HP Engage One Pro Magnetic Stripe Reader - magnetic card reader - 8 pin male Molex 51021-0800 |
| Device Type | Magnetic card reader |
| Interface Type | 8 pin male Molex 51021-0800 |
| ISO Card Tracks | Tracks 1, 2 & 3 |
| Weight | 0.2 oz |
| OS Required | Windows 10 Pro 64-bit Edition, Windows 10 IoT Enterprise 2019 LTSC 64-bit Edition, Microsoft Windows Server 2016 Standard, Microsoft Windows Server 2019 Standard, FreeDOS 3.0, Ubuntu 18.04 LTS, CentOS 7.0 |
| Designed For | Engage One Pro |
| General | |
| Device Type | Magnetic card reader |
| Interface Type | 8 pin male Molex 51021-0800 |
| Weight | 0.2 oz |
| Expansion / Connectivity | |
| Expansion Slots | 1 x Magnetic Card |
| Connections | 1 - 8 pin Molex |
| Software / System Requirements | |
| OS Required | Windows 10 Pro 64-bit Edition, Windows 10 IoT Enterprise 2019 LTSC 64-bit Edition, Microsoft Windows Server 2016 Standard, Microsoft Windows Server 2019 Standard, FreeDOS 3.0, Ubuntu 18.04 LTS, CentOS 7.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Magnetic Card Reader | |
| Recording Standard | ISO 7811 |
| Card Format | AAMVA |
| ISO Card Tracks | Tracks 1, 2 & 3 |
| Read Speed | 3 - 75 ips (7.6 - 190.5 cm/sec) |
| Compatibility Information | |
| Designed For | HP Engage One Pro |
