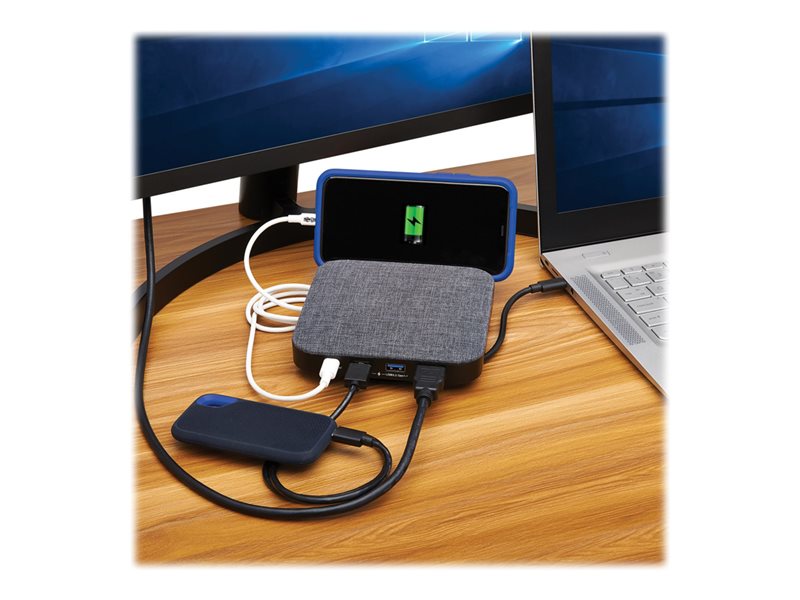

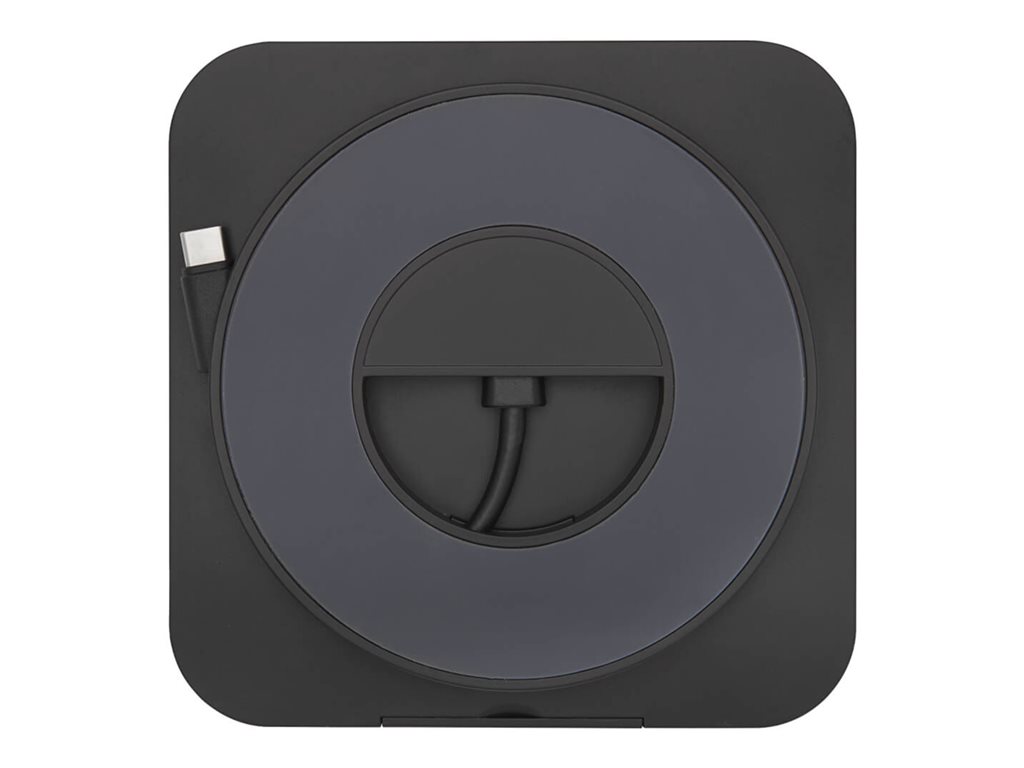

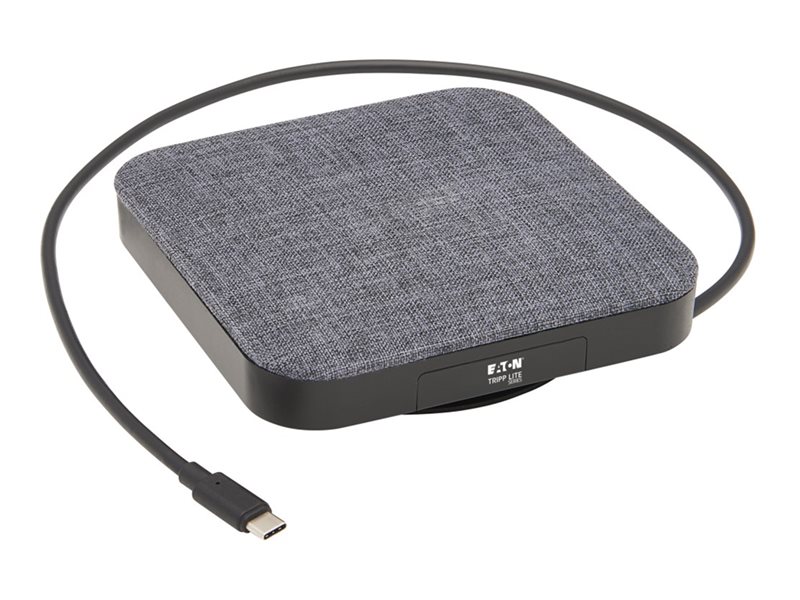

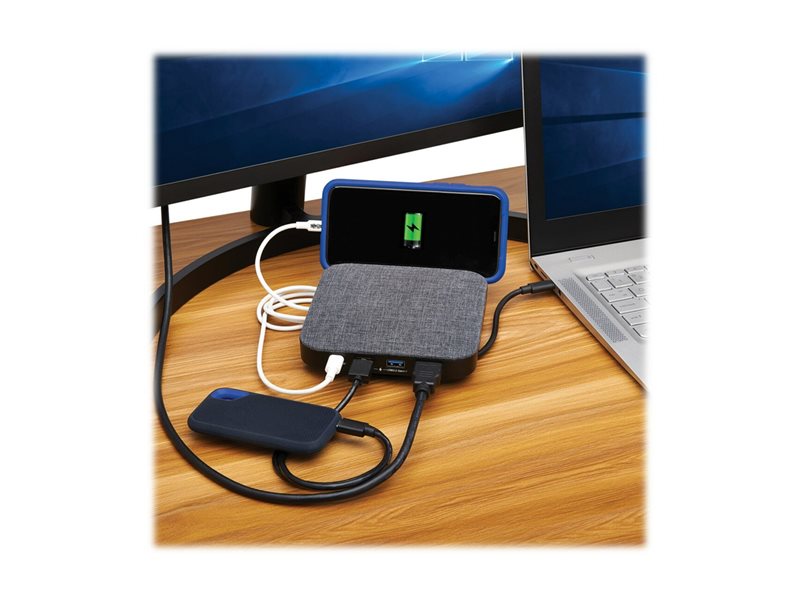

Docking station - USB-C 3.1 / Thunderbolt 3 - HDMI
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series USB C Docking Station with 2.5" SSD/HDD support, 4K HDMI, USB Hub, 100W PD charging for laptop, tablets and phones - docking station - USB-C 3.1 / Thunderbolt 3 - HDMI |
| Product Type | Docking station |
| Docking Interface | USB-C 3.1 / Thunderbolt 3 |
| Video Interfaces | HDMI |
| Dimensions (WxDxH) | 5.2 in x 1.2 in x 5.2 in |
| Weight | 7.05 oz |
| Color | Gray |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 5.2 in |
| Depth | 1.2 in |
| Height | 5.2 in |
| Weight | 7.05 oz |
| Enclosure Color | Gray |
| Expansion / Connectivity | |

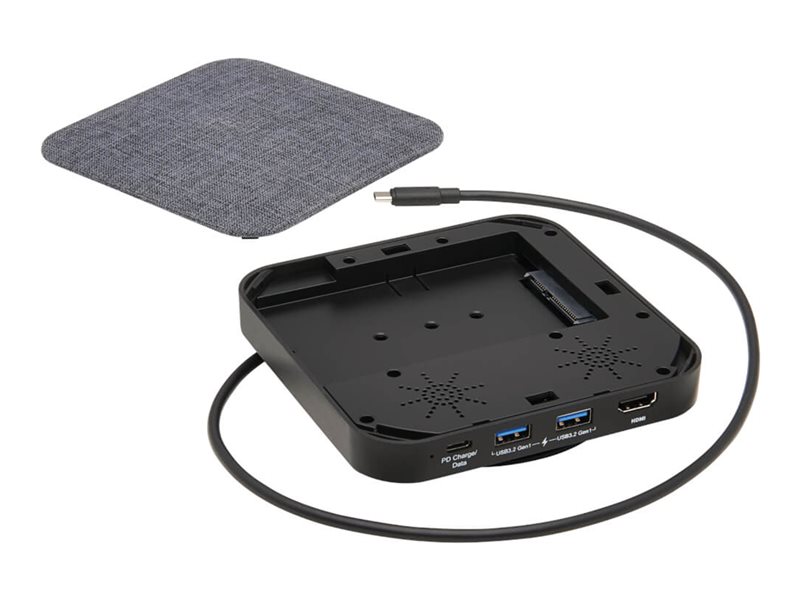

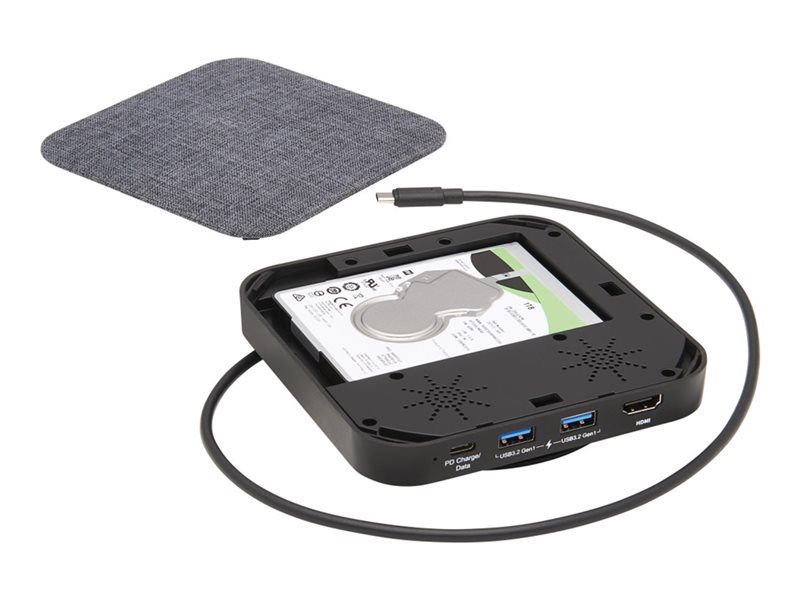

| Expansion Bays | 1 (total) / 1 (free) x internal - 2.5" |
| Interfaces | 2 x USB-C 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x USB-C 3.2 Gen 1 with Power Delivery (100 W) - 24 pin USB-C ¦ 1 x eSATA - 7 pin Serial ATA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

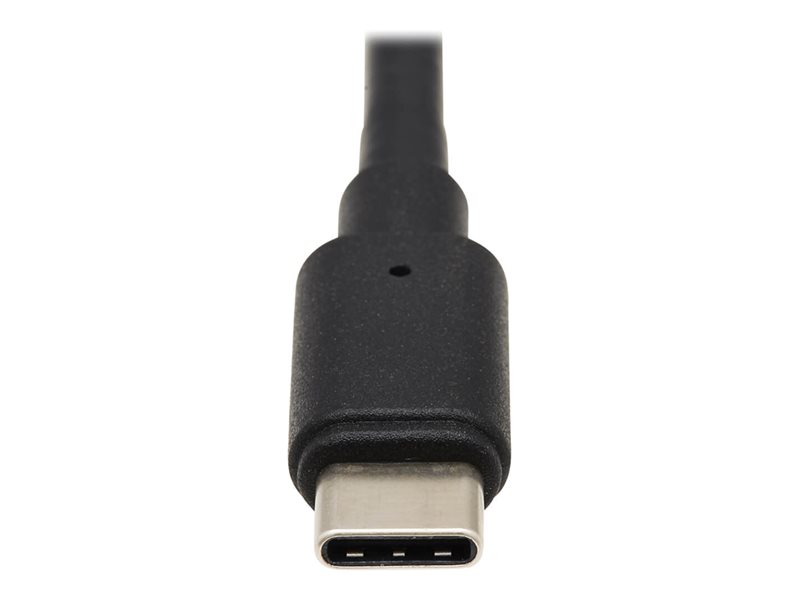

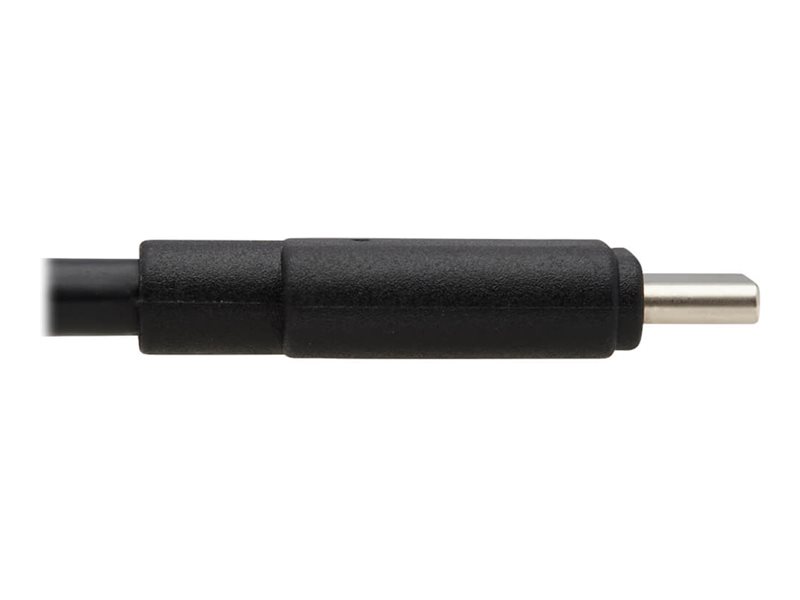

| Cables Included | 1 x USB-C cable - integrated - 2 ft |
| Features | Aluminum enclosure, 4:2:0 profile support, 4:2:2 profile support, bus powered, box package, 36-bit Deep Color, 32/22 AWG, 4.5 mm outer diameter, 4:4:4 chroma subsampling |
| Compliant Standards | FCC, RoHS, REACH, VW-1, HDCP 2.2, HDCP 1.4, UASP (USB Attached SCSI Protocol), USB Power Delivery 3.0 |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Video | |
| Max Resolution Details | 4096 x 2160 - 30 Hz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 1.6 in |
| Shipping Depth | 6.3 in |
| Shipping Height | 6.3 in |
| Shipping Weight | 11.36 oz |
