Adapter - TAA Compliant - HD-15 (VGA), HDMI, DisplayPort, 24 pin USB-C male to HDMI, USB Type A, USB-C (power only) - black - USB Power Delivery (5A, 100W), push button, 4K60Hz (4096 x 2160) support, 1080p support 60Hz (VGA)
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Multiport Presentation Adapter, 4K 60Hz w HDR, 4x1, HDMI/DisplayPort/USB-C/VGA to HDMI, HDCP2.2, PD Charge, 8ft - adapter - DisplayPort / HDMI / USB / VGA - TAA Compliant |
| Cable | Adapter - DisplayPort / HDMI / USB / VGA |
| TAA Compliant | Yes |
| Max Output Resolution | 4096 x 2160 - 60 Hz |
| Color | Black |
| Connectors | HD-15 (VGA) - male (input) ¦ HDMI - male (input) ¦ DisplayPort - male (input) ¦ USB-C - male (input) |
| Connectors (Second End) | HDMI - male (output) ¦ USB Type A - male (output) ¦ USB-C (power only) - female |
| Compliant Standards | USB 3.1 Gen 1 / DisplayPort 1.2a |
| Features | USB Power Delivery (5A, 100W), push button, 4K60Hz (4096 x 2160) support, 1080p support 60Hz (VGA) |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Cable Type | Adapter USB Power Delivery (5A, 100W), push button, 4K60Hz (4096 x 2160) support, 1080p support 60Hz (VGA) |
| Interface Supported | DisplayPort / HDMI / USB / VGA |
| Compliant Standards | USB 3.1 Gen 1 / DisplayPort 1.2a |
| Plated Connector | Nickel |
| Features | HDR support, 4:4:4 Chroma Subsampling, 3D ready, LED indicator, 7.1 channel Surround Sound, built-in 2.4-meter HDMI cable |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | Plug and Play, ISO 9001, NOM, FCC, RoHS, REACH, EDID compatible, DisplayPort 1.2a, HDCP 2.2, USB Power Delivery 3.0 |
| TAA Compliant | Yes |
| Connectivity | |

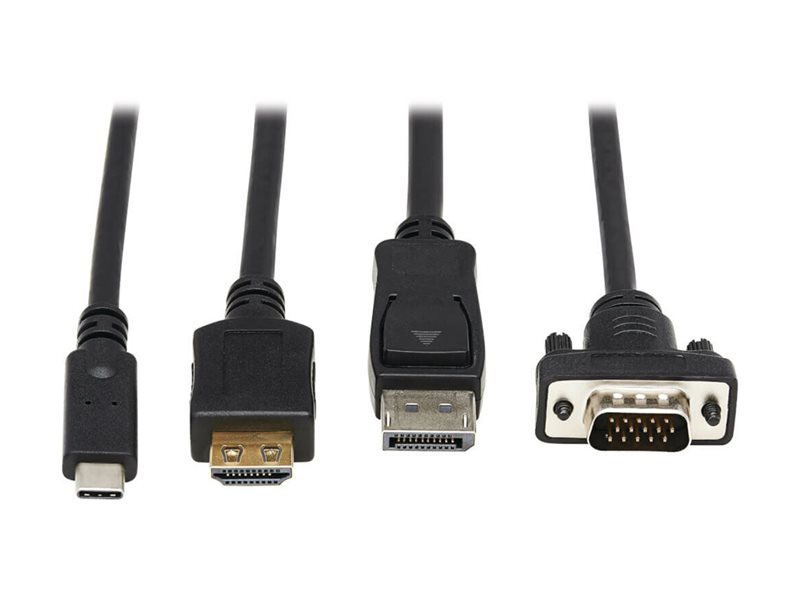

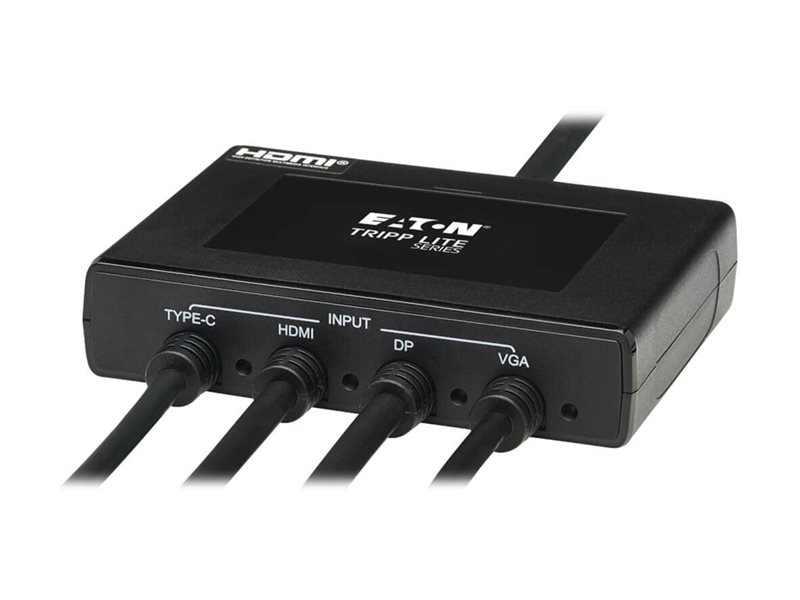

| Connectors | 15 pin HD D-Sub (HD-15) - male (input) ¦ 19 pin HDMI Type A - male (input) ¦ 20 pin DisplayPort - male (input) ¦ 24 pin USB-C - male (input) |

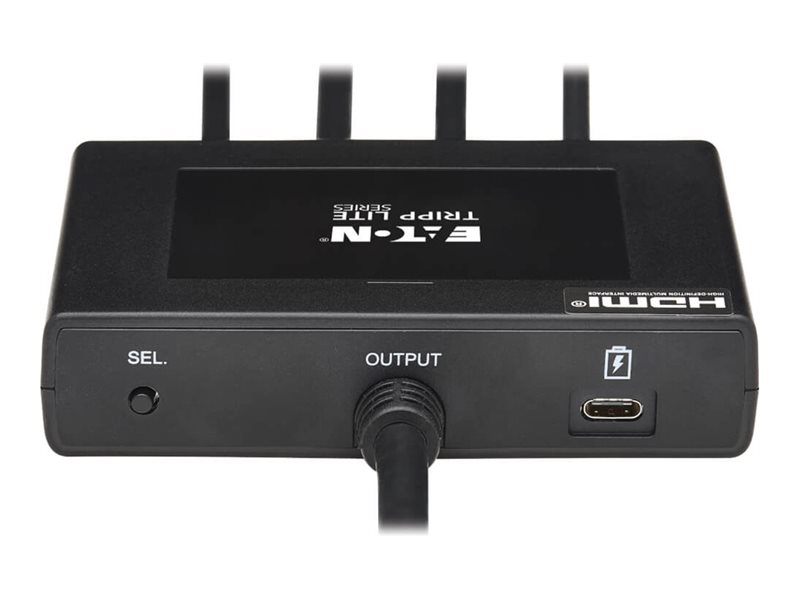

| Connectors (Second End) | 19 pin HDMI Type A - male (output) ¦ 9 pin USB Type A - male (output) ¦ 24 pin USB-C (power only) - female |
| Dimensions & Weight | |
| Width | 4.3 in |
| Depth | 2.9 in |
| Height | 0.9 in |
| Weight | 12.31 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.4 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 16.15 oz |
| Adapters & Converters | |
| Max Output Resolution | 4096 x 2160 |
| Refresh Rate | 60 Hz |
