KVM switch - DVI-I, dual link, with audio and USB 2.0 support - TAA Compliant
| Main Specifications | |
|---|---|

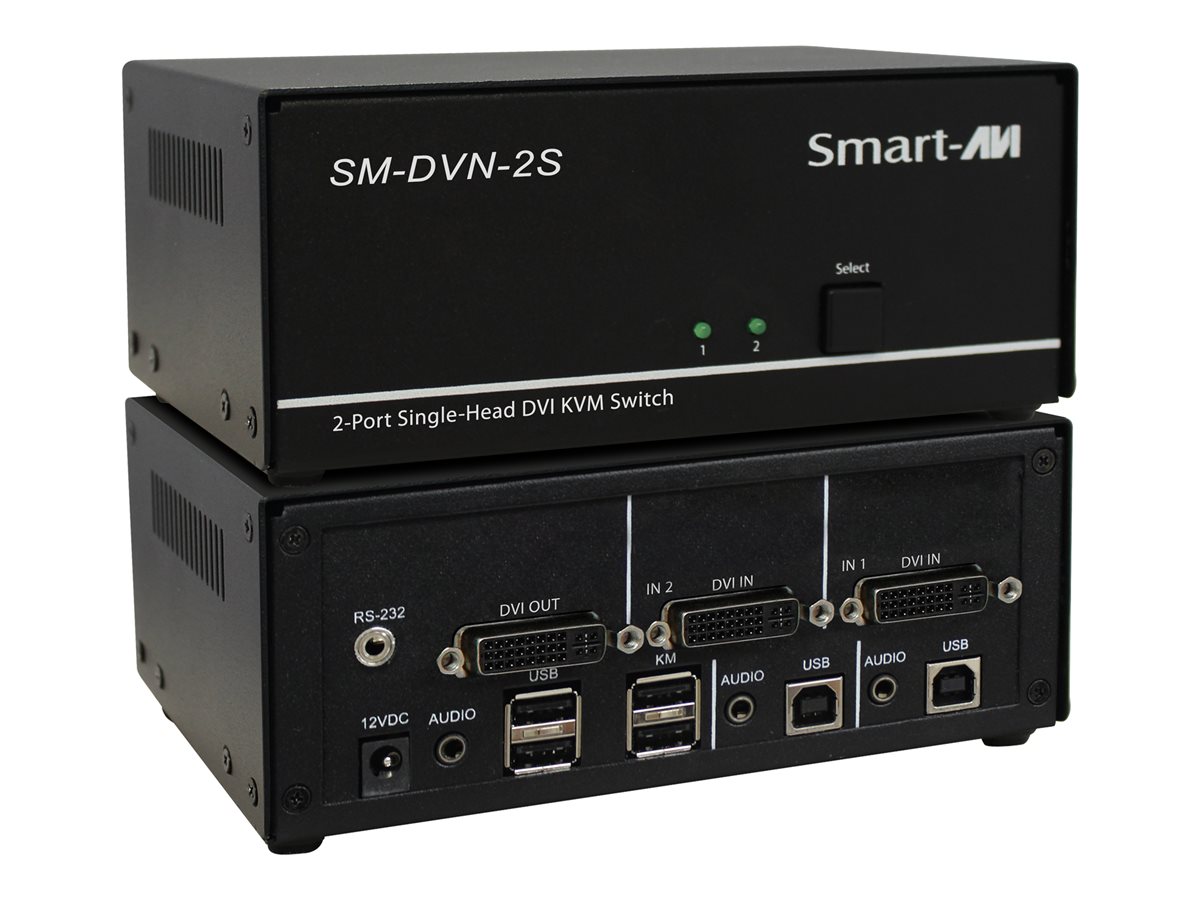

| Product Description | SmartAVI SM-DVN-2S - KVM switch - DVI-I, dual link, with audio and USB 2.0 support - 2 ports - TAA Compliant |
| Device Type | KVM switch - 2 ports |
| Subtype | KVM |
| Performance | Data rate: 1.65 Gbps |
| Features | 24-bit Deep Color support, automatic input equalization, 20 - 20000 Hz frequency response, 60 dB rejection, LED status indicators, zero pixel loss, TMDS signal correction, firmware upgradable |
| Compliant Standards | USB 2.0 |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 4 in x 6.5 in x 3 in |
| Weight | 31.2 oz |
| System Requirements | Windows, Linux, Sun Linux, Apple MacOS |
| TAA Compliant | Yes |
| General | |
| Device Type | KVM switch - 2 ports |
| Subtype | KVM |
| Keyboard / Mouse Interface | USB |
| Performance | Data rate: 1.65 Gbps |
| Max Resolution | 2560 x 1600 @ 60 Hz |
| Features | 24-bit Deep Color support, automatic input equalization, 20 - 20000 Hz frequency response, 60 dB rejection, LED status indicators, zero pixel loss, TMDS signal correction, firmware upgradable |
| Compliant Standards | USB 2.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x DVI-D input ¦ 2 x DVI-I output ¦ 2 x audio input mini-jack ¦ 1 x audio output mini-jack ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 2 x USB Type B ¦ 2 x USB Type A transparent |
| Miscellaneous | |
| Compliant Standards | RoHS, RS-232, ISO 9001:2015 |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Software / System Requirements | |
| OS Required | Windows, Linux, Sun Linux, Apple MacOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 4 in |
| Depth | 6.5 in |
| Height | 3 in |
| Weight | 31.2 oz |
