Device server - 100Mb LAN, RS-232
| Main Specifications | |
|---|---|

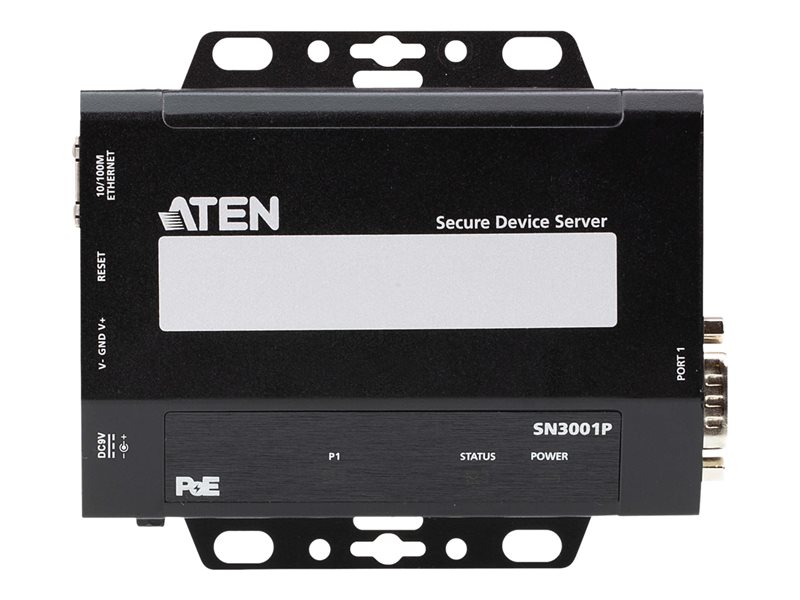

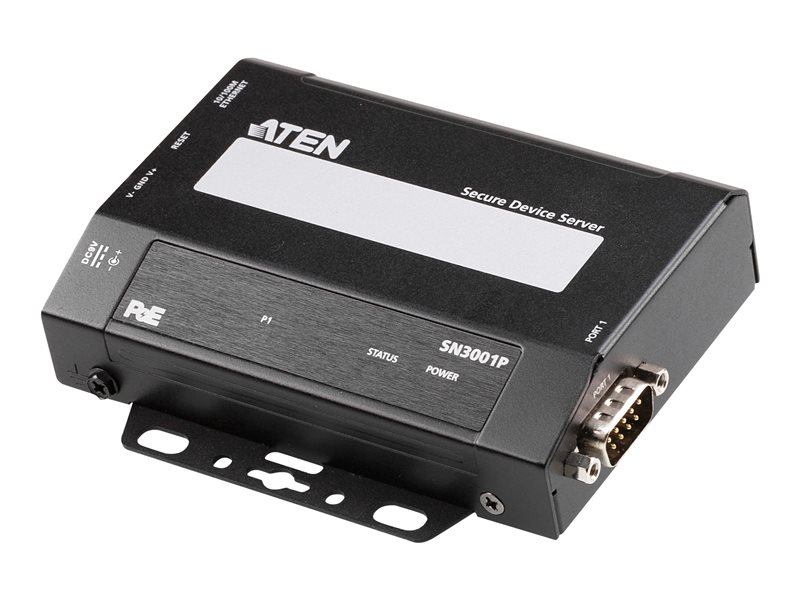

| Product Description | ATEN Altusen SN3000 series SN3001P - device server |
| Device Type | Device server |
| Form Factor | External |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Capacity | Simultaneous users: 16 ¦ Buffer per port: 64 KB |
| Included Accessories | Power terminal block, 4 foot pads, DIN-rail mounting kit |
| OS Required | UNIX, Linux, Microsoft Windows |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 4.6 in x 3.9 in x 1 in |
| Weight | 7.41 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Device server |
| Width | 4.6 in |
| Depth | 3.9 in |
| Height | 1 in |
| Weight | 7.41 oz |
| Expansion / Connectivity | |

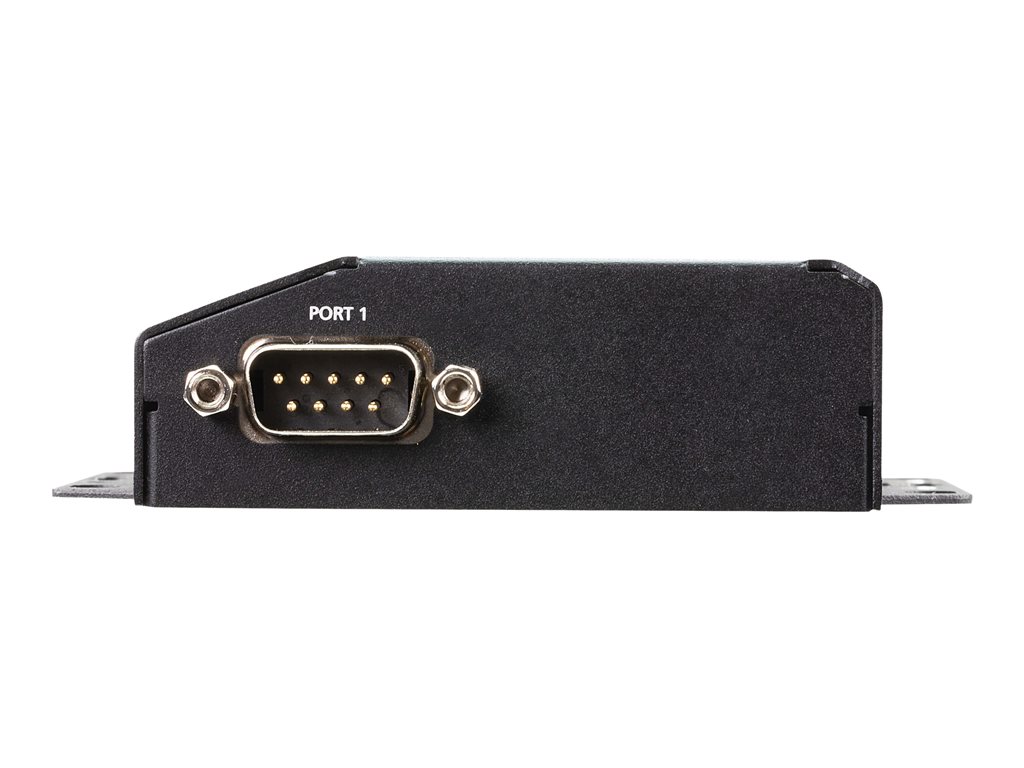

| Interfaces | 1 x RS-232 - DB-9 ¦ 1 x 100Base-TX (PoE) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Power terminal block, 4 foot pads, DIN-rail mounting kit |
| Compliant Standards | EMC, EN 55032, EN 55035, CISPR 32, FCC Part 15 B Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, UL 60950-1, UL 62368-1, RoHS |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Transfer Rate | 921.6 Kbps |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Network / Transport Protocol | TCP/IP, UDP/IP, SMTP, NTP |
| Remote Management Protocol | SSH, Telnet, HTTP, SNMP 1, SNMP 2c |
| Capacity | Simultaneous users: 16 ¦ Buffer per port: 64 KB |
| Status Indicators | Power, status, LAN, serial |
| Features | Surge protection, Secure Real COM, Secure TCP Server / Client, DIN rail mountable, wall mountable, IP address filtering, SNMP trap, e-mail notification, firmware upgradable, reset button, 1.5 KV Magnetic Isolation, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), metal housing |
| Encryption Algorithm | TLS 1.2, 2048-bit RSA |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.3af |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter (not included) |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Consumption Operational | 1.22 Watt |
| Software / System Requirements | |
| OS Required | UNIX, Linux, Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
