Docking station - USB-C 3.2 Gen 2 - HDMI, 2 x DP++, USB-C - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Kensington SD4855P - docking station - USB-C 3.2 Gen 2 - HDMI, 2 x DP++, USB-C - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C 3.2 Gen 2 |
| Video Interfaces | HDMI, 2 x DP++, USB-C |
| Dimensions (WxDxH) | 8.3 in x 3.5 in x 1.2 in |
| Weight | 10.37 oz |
| Color | Black |
| Networking | Gigabit Ethernet |
| Power | Power adapter AC 100-240 V |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 8.3 in |
| Depth | 3.5 in |
| Height | 1.2 in |
| Weight | 10.37 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Expansion Slots | SDXC UHS-II Memory Card |
| Interfaces | 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB 3.2 Gen 2 with Battery Charging 1.2 - 9 pin USB Type A ¦ 4 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery (100 W) - 24 pin USB-C ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery (100 W) - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

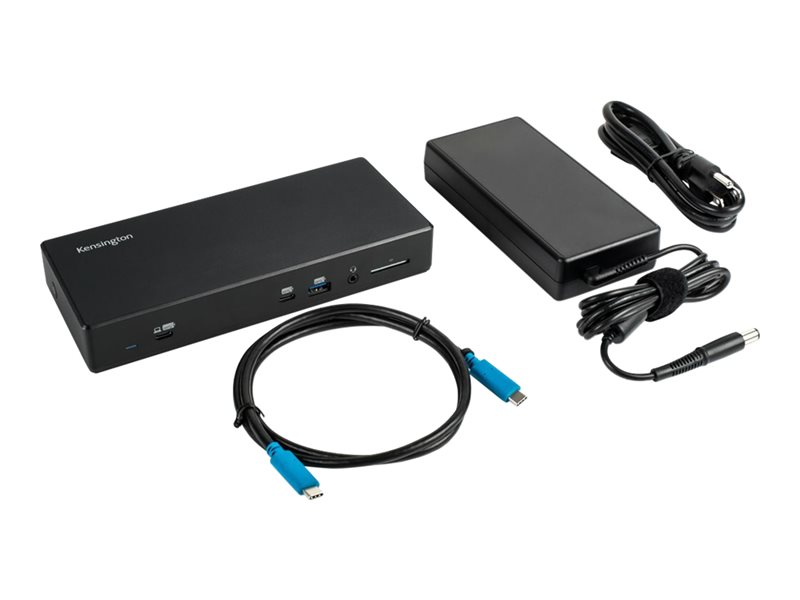

| Cables Included | USB-C 3.2 Gen 2 cable - external |
| Features | 100W power delivery, DisplayPort Alt Mode, High Bit Rate 3 (HBR3), DockWorks |
| Security Slot Type | Kensington nano security slot / Kensington security slot |
| Compliant Standards | FCC DFS Certified, DisplayPort 1.4, Plug and Play, FCC |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | Power Delivery 3.0 |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 3840 x 2160 - 60 Hz ¦ 3840 x 2160 - 60 Hz (Dual Display) ¦ 3840 x 2160 - 60 Hz (Triple Display) ¦ 3840 x 2160 - 30 Hz ¦ 1920 x 1080 - 60 Hz (Dual Display) ¦ 1600 x 900 - 60 Hz (Triple Display) |
| System Requirements | |
| OS Required | Microsoft Windows 7 or later |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.3 in |
| Shipping Depth | 5.9 in |
| Shipping Height | 3.6 in |
| Shipping Weight | 3.08 lbs |
