Video/audio/serial extender - HDMI, HDBaseT, VGA - up to 230 ft
| Main Specifications | |
|---|---|
| Product Description | C2G Dual HDMI+VGA Switch Box TX - video/audio/serial extender - HDMI, HDBaseT, VGA |
| Device Type | Video/audio/serial extender |
| Form Factor | External |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | HDMI, HDBaseT, VGA |
| Max Transfer Distance | 230 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | DC 18 V |
| Dimensions (WxDxH) | 7.7 in x 3.7 in x 0.8 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/serial extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |

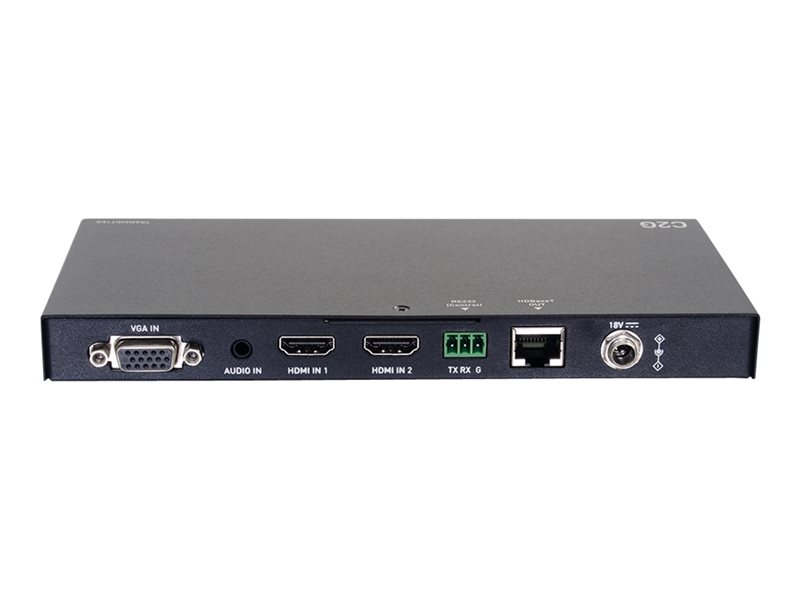

| Interfaces | 2 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x VGA (input) - HD-15 female ¦ 1 x audio (input) - mini jack female ¦ 1 x HDBaseT (output) - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | EDID compatible |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, HDBaseT, VGA |
| Data Transfer Rate | 10.2 Gbps |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Features | 7.1 channel audio support, 8KV ESD Protector, Dolby TrueHD support, DTS-HD Master Audio support, Dolby Atmos support, DTS:X support, IR pass-through |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | DC 18 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.7 in |
| Depth | 3.7 in |
| Height | 0.8 in |
