Video conferencing kit (hub, camera)
| Main Specifications | |
|---|---|
| Product Description | AudioCodes RXV100-B20 - video conferencing kit |
| Device Type | Video conferencing kit |
| Kit Content | Hub, camera |
| Video Input | Digital video camera - SuperSpeed USB 3.0 |
| Video Output | Codec board - 3820 x 2160 |
| Audio Input | 4-microphone array |
| Networking | Network adapter - Bluetooth, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.0 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | Hub, camera |
| Dimensions & Weight Details | Hub - Width 9.4 in Depth 7.9 in Height 7.3 in Weight 5.4 lbs ¦ Camera - Width 8.7 in Depth 3.7 in Height 2.2 in |

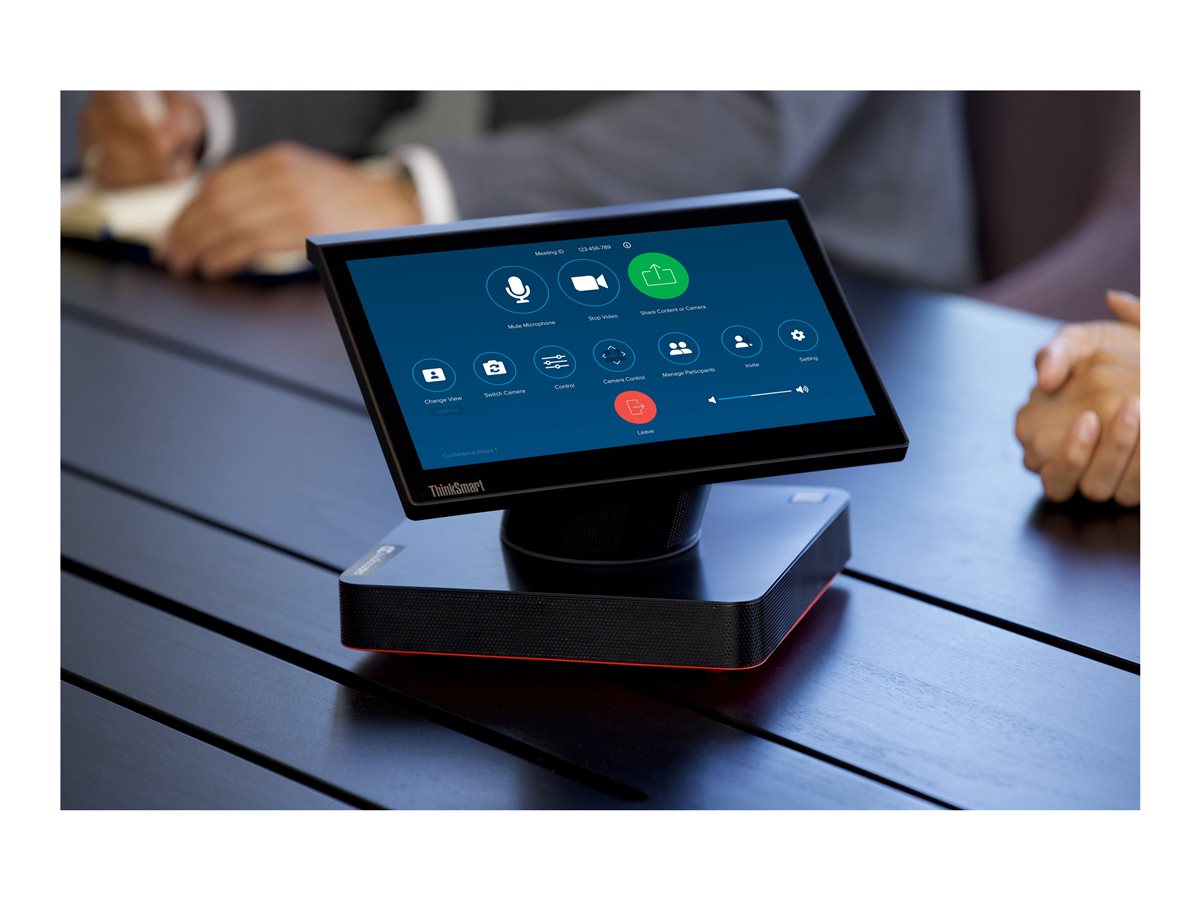

| Built-in Devices | 10.1" touch screen display, 128 GB SSD, 8 GB RAM, proximity sensor, 4 speakers |
| Expansion / Connectivity | |
| Interfaces | 2 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 3 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x audio - mini-phone stereo 3.5 mm |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Bluetooth, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.0 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | IPv4, TCP/IP, DHCP, RTCP |
| Features | Acoustic echo cancellation, security slot (Kensington security lock compatible), SNTP support, VLAN support, Quality of Service (QoS), VLAN Tagging, Type of Service (ToS), DiffServ Code Point (DSCP) support |
| Compliant Standards | IEEE 802.1x |
| Software / System Requirements | |
| Software Included | Windows 10 IoT Enterprise 64-bit |
| Audio Input | |
| Type | 4-microphone array - integrated |
| Video Input | |

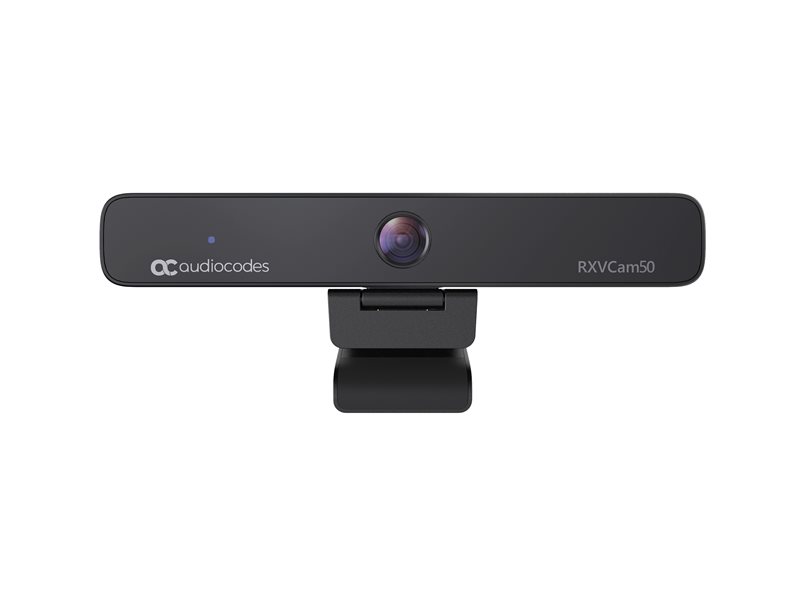

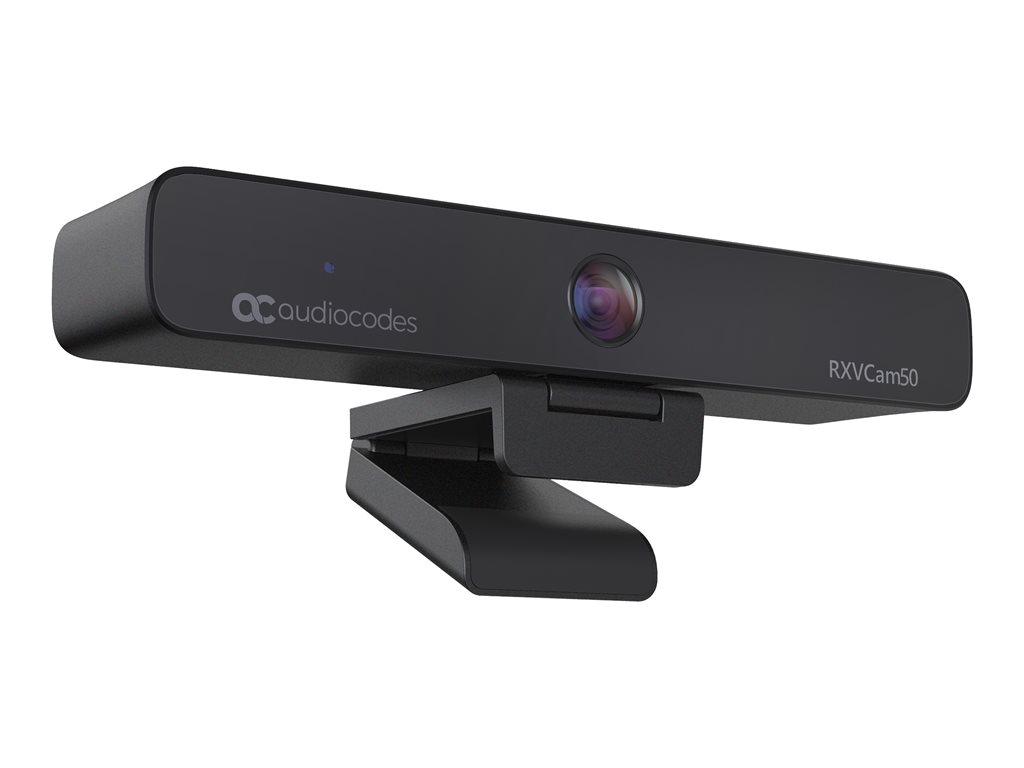

| Type | Digital video camera (color) - external |
| Interface Type | SuperSpeed USB 3.0 |
| Video Modes | 4K, 1080p |
| Digital Zoom | 5 |
| Features | 120° field of view (horizontal), ePTZ, auto-framing, AI Face enhancement, 126° field of view (diagonal), 85° field of view (vertical), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR) |
| Video Output | |
| Type | Codec board - integrated |
| Max External Resolution | 3820 x 2160 |
| Analog Video Signal | HDMI |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
