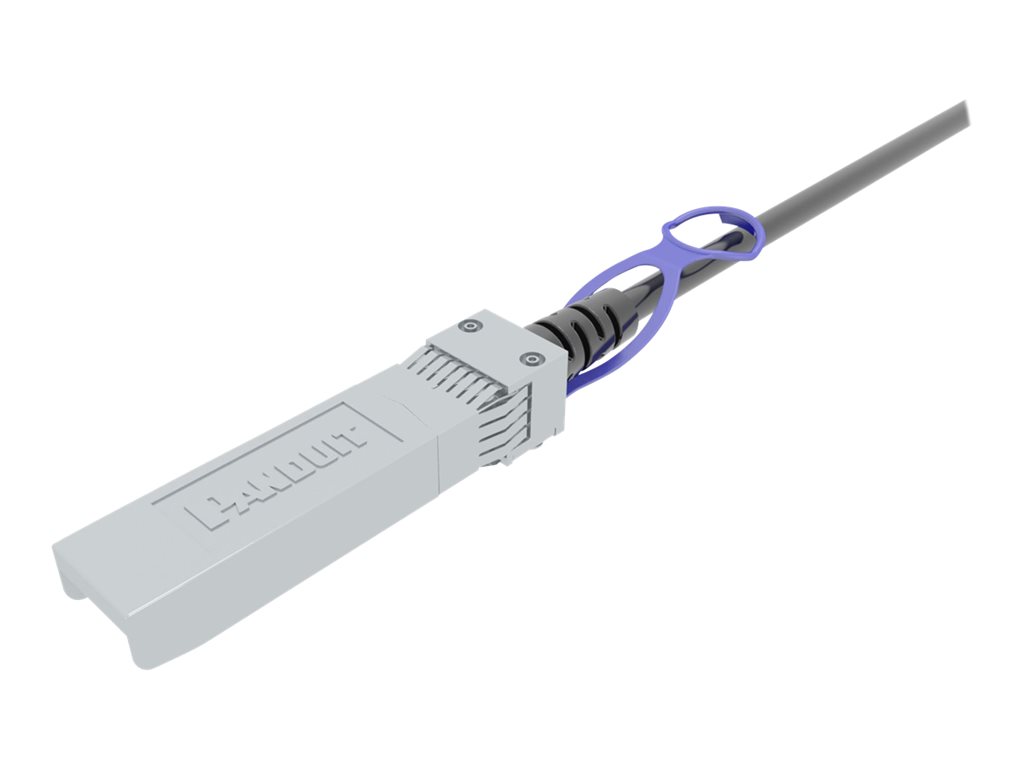

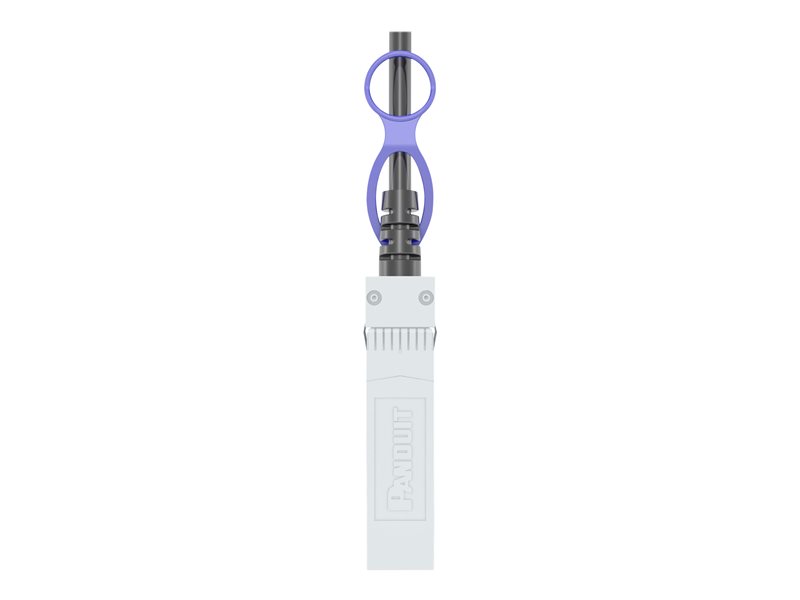

10GBase direct attach cable - SFP+ to SFP+ - 6.6 ft - 0.2 in - twinaxial - SFF-8431/SFF-8432/SFF-8472 - passive - white
| Main Specifications | |
|---|---|
| Product Description | Panduit 10Gig 10GBase direct attach cable - 6.6 ft - white |
| Type | 10GBase direct attach cable - SFF-8431/SFF-8432/SFF-8472 |
| Technology | Twinaxial |
| Features | Passive cable, latching connectors, flame retardant, strain relief, Fibre Channel over Ethernet (FCoE), Hot-pluggable, pull tab, modular connector |
| Length | 6.6 ft |
| Diameter | 0.2 in |
| Connector | SFP+ |
| Connector (Second End) | SFP+ |
| Color | White |
| Image Color Disclaimer | The displayed product image may be a different color |
| General | |
| Network Cable Type | 10GBase direct attach cable - SFF-8431/SFF-8432/SFF-8472 |
| Technology | Twinaxial |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 30 |
| Impedance | 100 Ohm |
| Features | Passive cable, latching connectors, flame retardant, strain relief, Fibre Channel over Ethernet (FCoE), Hot-pluggable, pull tab, modular connector |
| Length | 6.6 ft |
| Diameter | 0.2 in |
| Color | White |
| Image Color Disclaimer | The displayed product image may be a different color |
| Miscellaneous | |
| Compliant Standards | RoHS, IEC-60332, IEC-60333, IEC-60324 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Connectivity | |
| Connector | SFP+ |
| Connector (Second End) | SFP+ |
