Motherboard - micro ATX - LGA1151 Socket - C246 Chipset - USB 3.1 Gen 1, USB 3.1 Gen 2 - 2 x Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

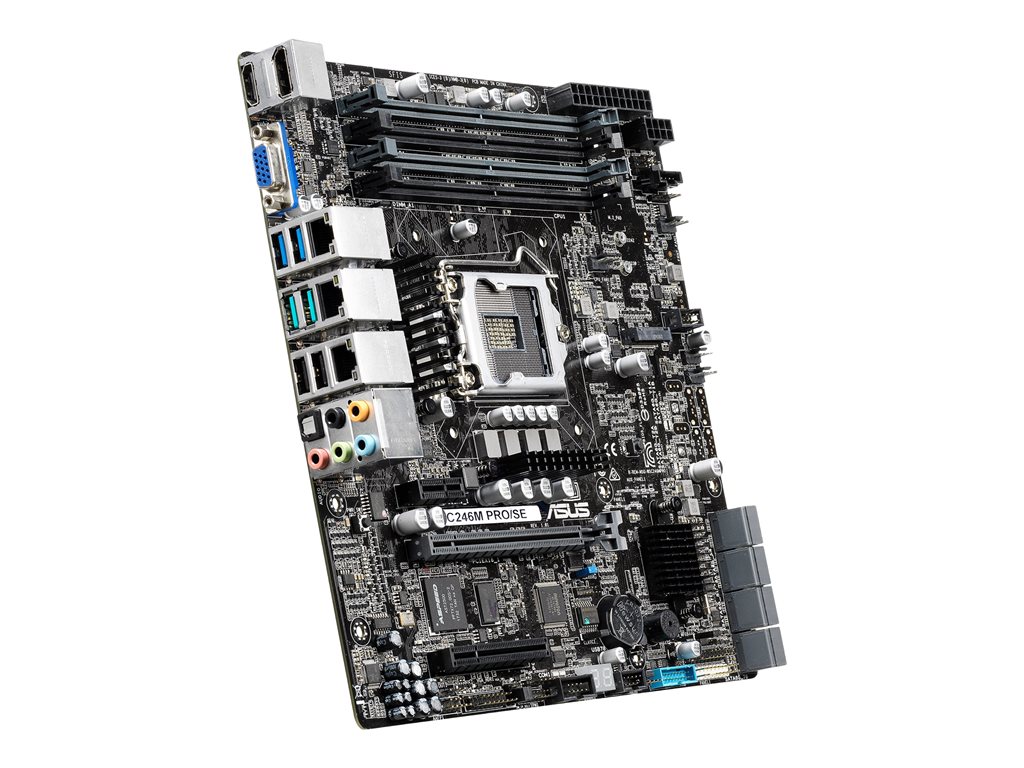

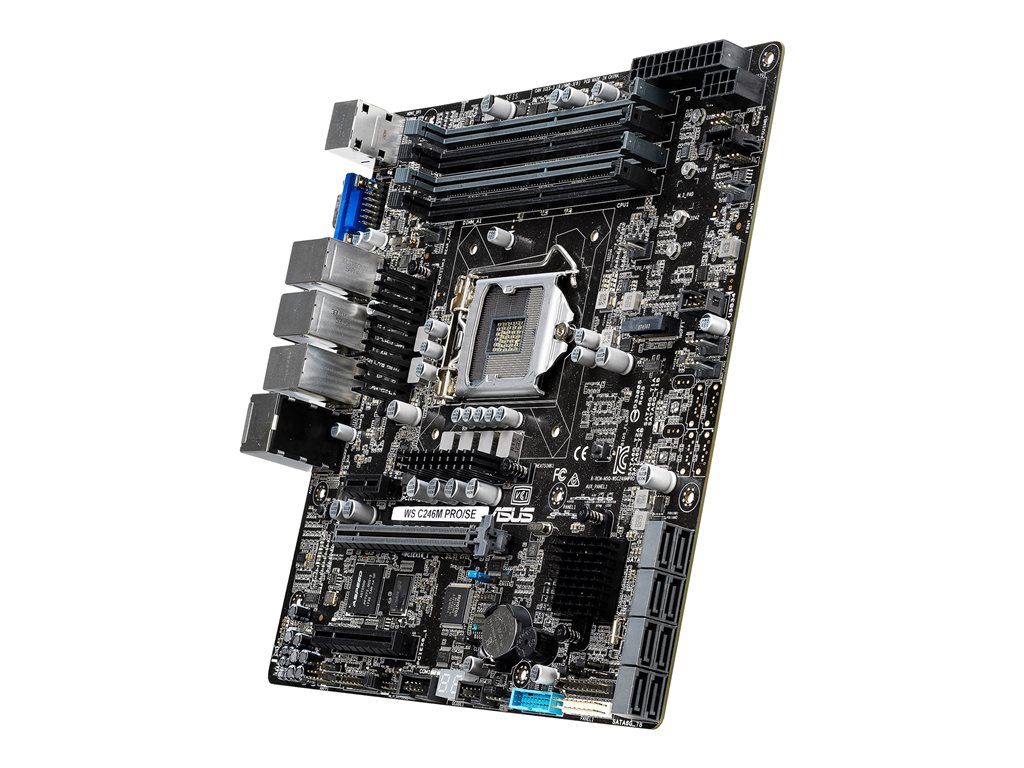

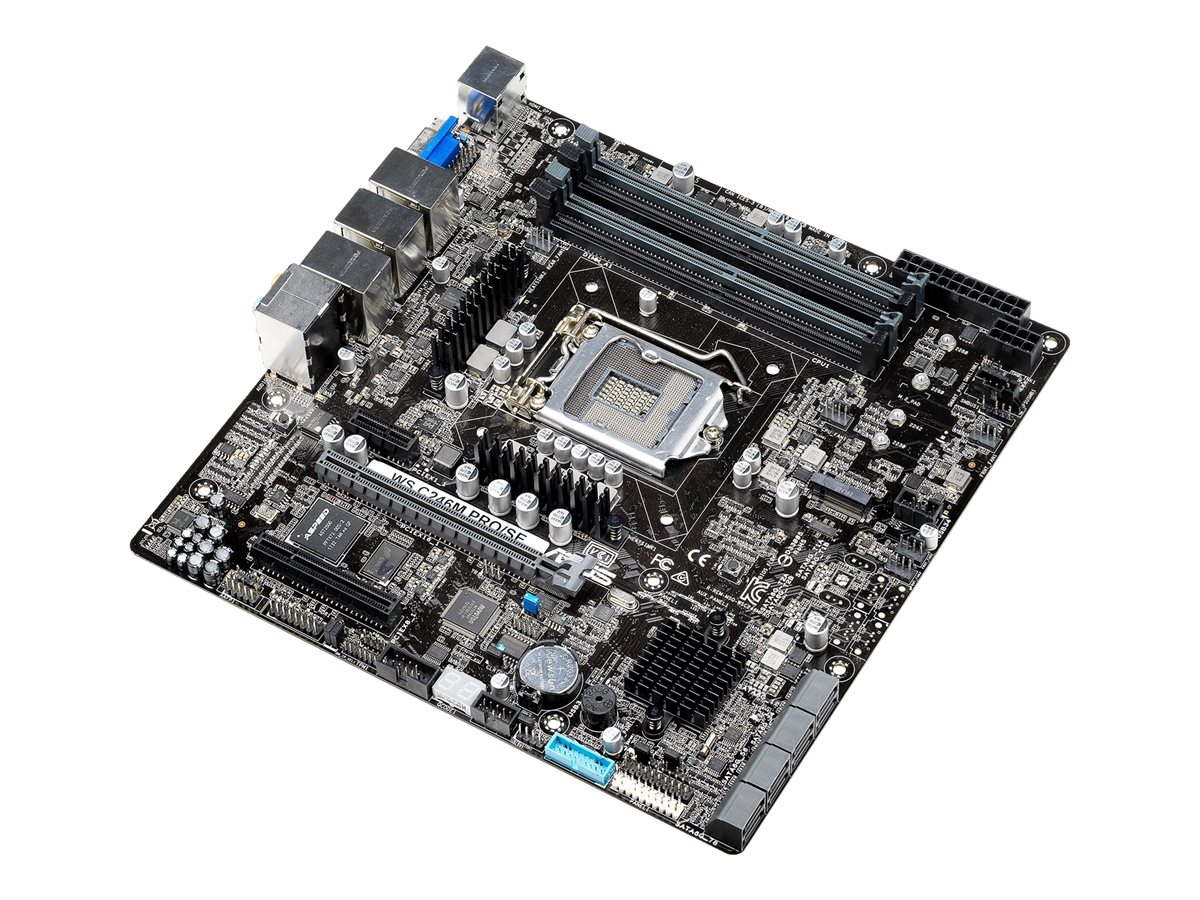

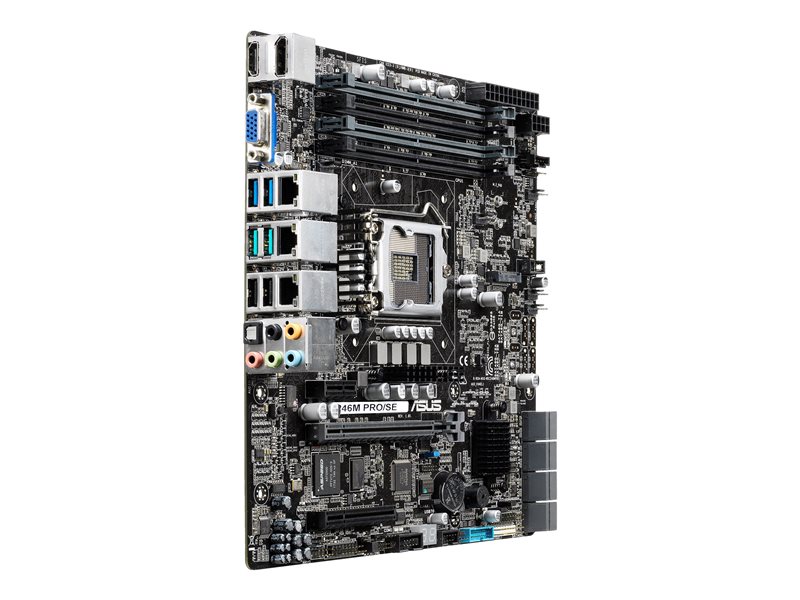

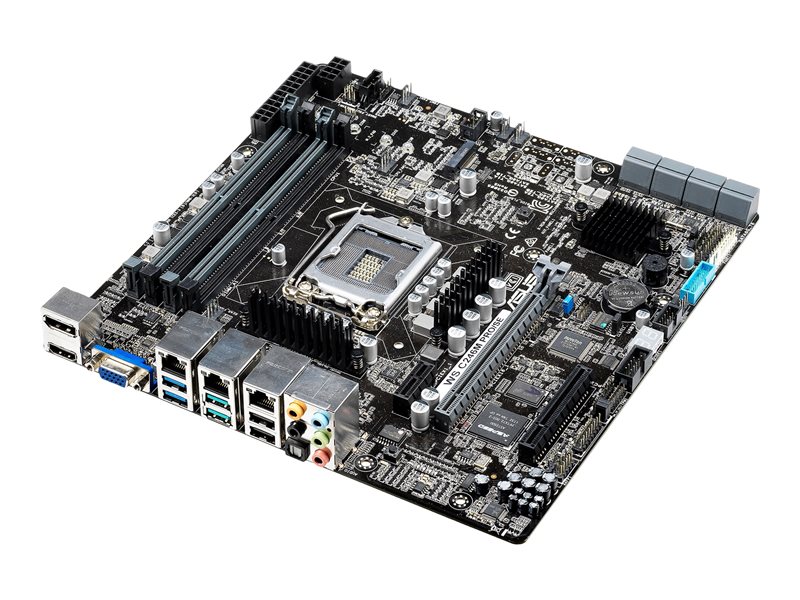

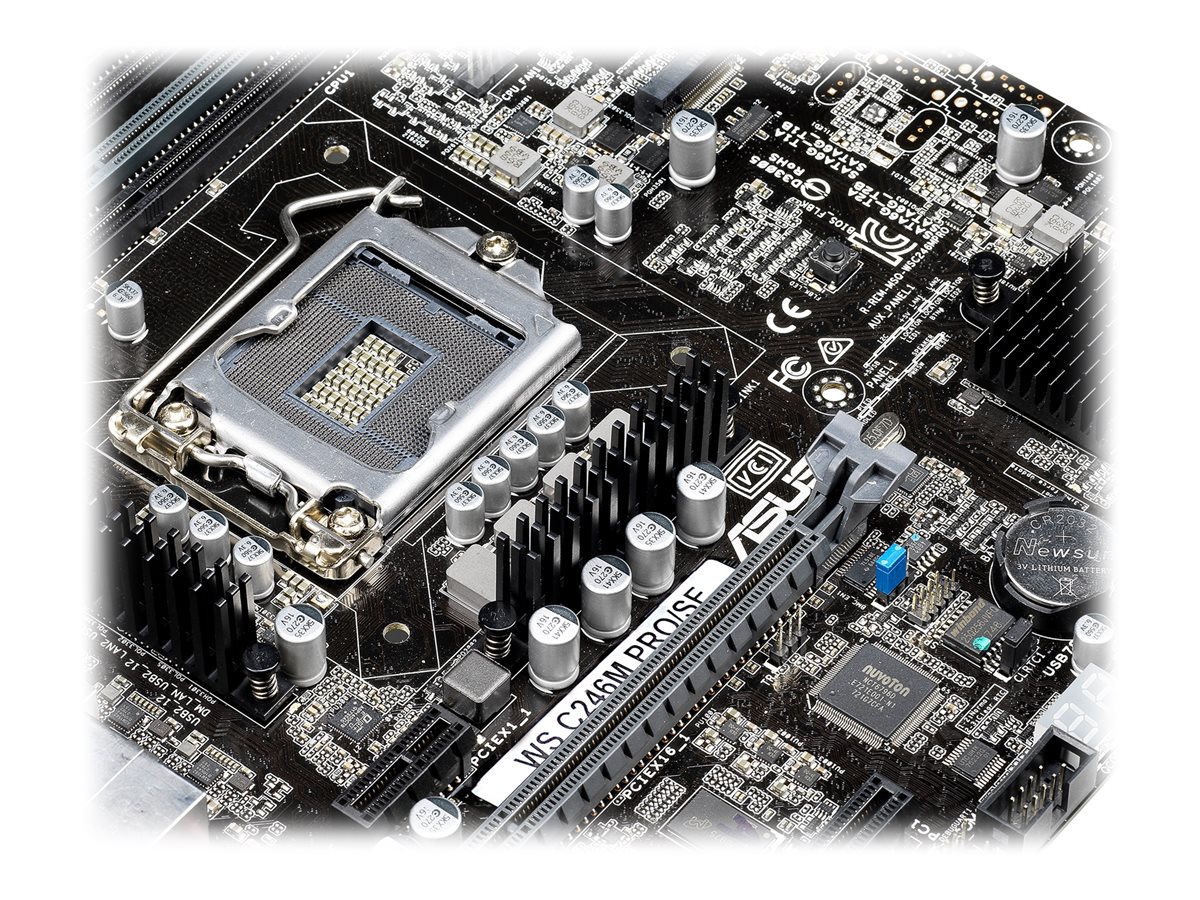

| Product Description | ASUS WS C246M PRO/SE - motherboard - micro ATX - LGA1151 Socket - C246 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C246 |
| Processor Socket | 1 x LGA1151 Socket |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Core i9, Xeon E-2100 series, Xeon E-2200 series |
| Max RAM Size | 128 GB |
| RAM Supported | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
| Storage Ports | 8 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire Ports | 2 x USB 3.1 Gen 2 + 2 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 2 x Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C246 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Core i9, Xeon E-2100 series, Xeon E-2200 series |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 (x4 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 2 x USB 2.0 ¦ 2 x USB 3.1 Gen 1 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.1 Gen 2 |
| Internal Interfaces | 2 x VGA - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Included Accessories | I/O back plate, 1 x M.2 screw |
| Cables Included | 8 x Serial ATA cable ¦ 1 x serial panel |
| Software Included | Drivers & utilities, ASUS Control Center |
| Width | 9.6 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, ASUS EZ Flash, IPMI support, USB BIOS Flashback, ACPI 5.0a support, DMI 3.0 support, SMBIOS 3.0 support |
| Hardware Monitoring | CPU core temperature, CPU fan tachometer, chassis fan tachometer |
| Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR), wake on PME |
| Hardware Features | CrashFree BIOS 3, Intel Turbo Boost Technology, Dual LAN Teaming, Preboot eXecution Environment (PXE), ASUS SafeSlot |
| LAN | |
| Network Controller | Intel I210-AT / I219LM |
| Network Interfaces | 2 x Gigabit Ethernet |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2666 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
