Storage / USB3.0 controller - USB 3.2 - PCIe 3.0 x8
| Main Specifications | |
|---|---|
| Product Description | HighPoint RocketU 1244A - storage / USB3.0 controller - USB 3.2 - PCIe 3.0 x8 |
| Device Type | Storage / USB3.0 controller - plug-in card |
| Bus Type | PCIe 3.0 x8 |
| Interface | USB 3.2 |
| Data Transfer Rate | 10 Gbit/s |
| System Requirements | Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2016 (64-bit), Linux Kernel 3.10.x, Apple macOS Sierra 10.12.6 or later, Microsoft Windows Server 2019 (64-bit) |
| Dimensions (WxDxH) | 0.7 in x 4.1 in x 3.8 in |
| Weight | 7.05 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Storage / USB3.0 controller - plug-in card |
| Host Bus | PCIe 3.0 x8 |
| Expansion / Connectivity | |
| Interfaces | 4 x USB 3.2 (Gen 1) - USB Type A (external) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

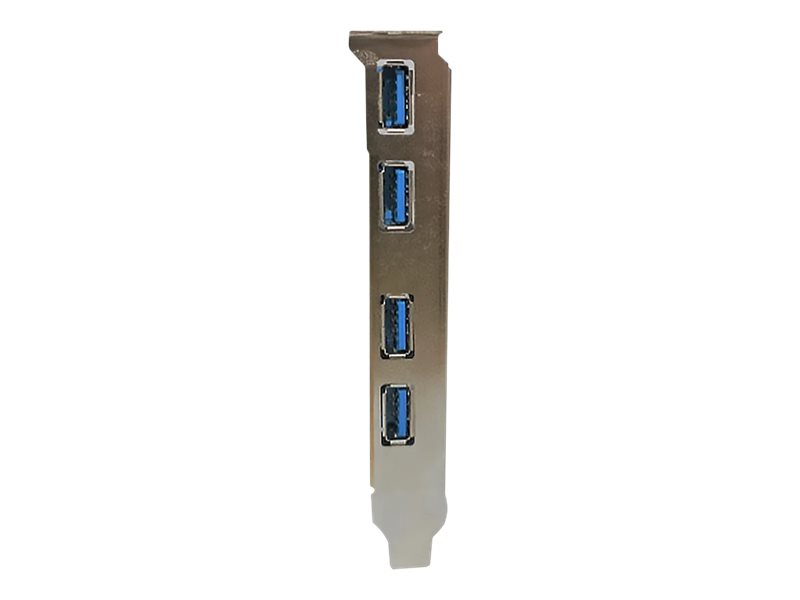

| Included Accessories | Full-height bracket |
| Features | eXtensible Host Controller Interface (xHCI) |
| MTBF | 920.585 hours |
| Compliant Standards | UASP (USB Attached SCSI Protocol) |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2016 (64-bit), Linux Kernel 3.10.x, Apple macOS Sierra 10.12.6 or later, Microsoft Windows Server 2019 (64-bit) |
| Storage Controller | |
| Interface | USB 3.2 |
| Data Transfer Rate | 10 Gbit/s |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 4.1 in |
| Height | 3.8 in |
| Weight | 7.05 oz |
