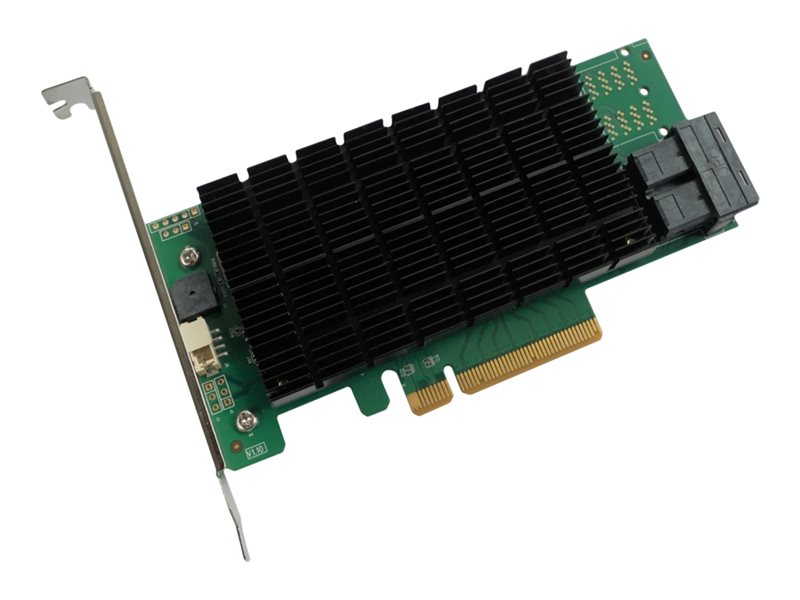

Storage controller (RAID) - 8 Channel - SATA 6Gb/s / SAS 12Gb/s - low profile - RAID RAID 0, 1, 5, 10, 50, JBOD, 6 not on MacOS - PCIe 3.0 x8
| Main Specifications | |
|---|---|
| Product Description | HighPoint RocketRAID 3720C - storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8 |
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Bus Type | PCIe 3.0 x8 |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Supported Devices | Disk array (RAID) |
| Channel Qty | 8 |
| Max Storage Devices Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, JBOD, RAID 6 (not on MacOS) |
| Package Type | Retail |
| System Requirements | Linux, FreeBSD, Microsoft Windows 7 or later, Microsoft Windows Server 2008 or later, Apple MacOS X 10.9 or later |
| Dimensions (WxDxH) | 0.7 in x 5.6 in x 2.7 in |
| General | |
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Host Bus | PCIe 3.0 x8 |
| Expansion / Connectivity | |
| Interfaces | 2 x SATA 6Gb/s / SAS 12Gb/s - Mini SAS HD (SFF-8643) (internal) |
| Miscellaneous | |

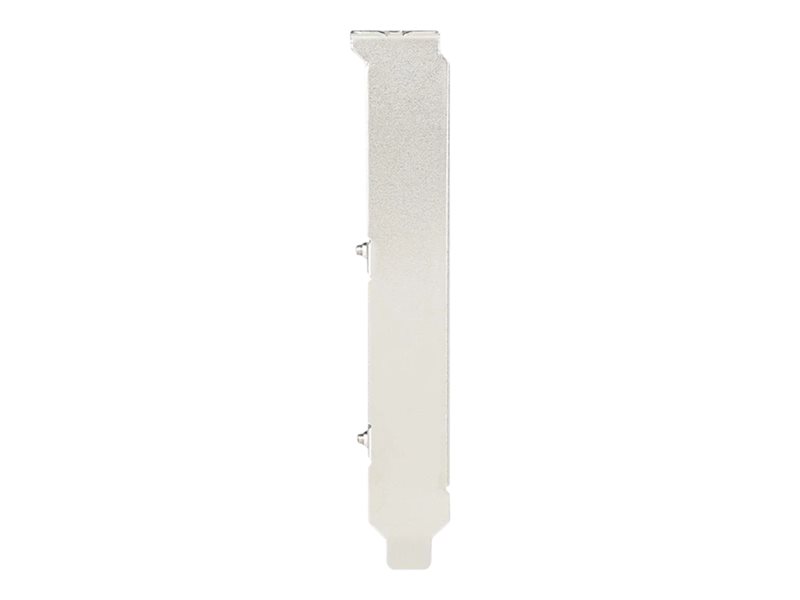

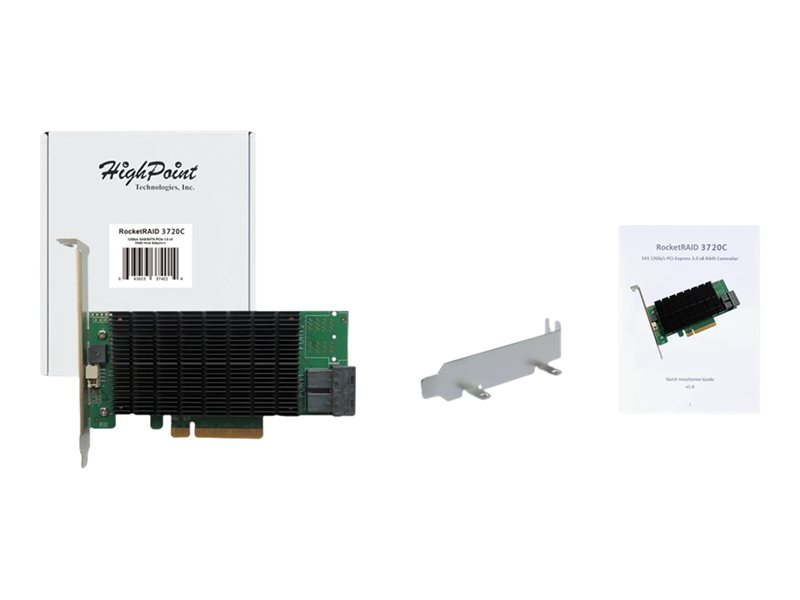

| Included Accessories | Low-profile bracket |
| MTBF | 920,585 hours |
| Compliant Standards | FCC, RoHS, WEEE, REACH |
| Package Type | Retail |
| Software / System Requirements | |
| OS Required | Linux, FreeBSD, Microsoft Windows 7 or later, Microsoft Windows Server 2008 or later, Apple MacOS X 10.9 or later |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 131 °F |
| Storage Controller | |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Supported Devices | Disk array (RAID) |
| Channel Qty | 8 |
| Max Storage Devices Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, JBOD, RAID 6 (not on MacOS) |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 5.6 in |
| Height | 2.7 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.7 in |
| Shipping Depth | 1.9 in |
| Shipping Height | 7.8 in |
| Shipping Weight | 9.91 oz |
