Video/audio/USB switch - desktop
| Main Specifications | |
|---|---|
| Product Description | Lightware MMX4x2-HDMI-USB20-L - video/audio/USB switch |
| Device Type | Video/audio/USB switch |
| Enclosure Type | 1U |
| Subtype | HDMI / USB |
| Features | HDCP compliant, 4K resolution support, 7.1 channel audio support, Advanced EDID Management, Dolby TrueHD support, DTS-HD Master Audio support |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.7 in x 4 in x 1.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/USB switch |
| Enclosure Type | Desktop 1U |
| Subtype | HDMI / USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Features | HDCP compliant, 4K resolution support, 7.1 channel audio support, Advanced EDID Management, Dolby TrueHD support, DTS-HD Master Audio support |
| Expansion / Connectivity | |

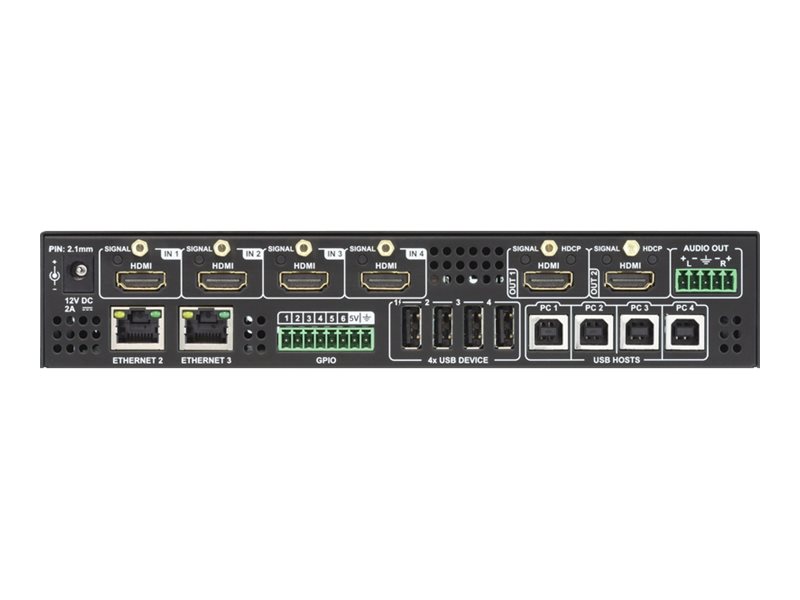

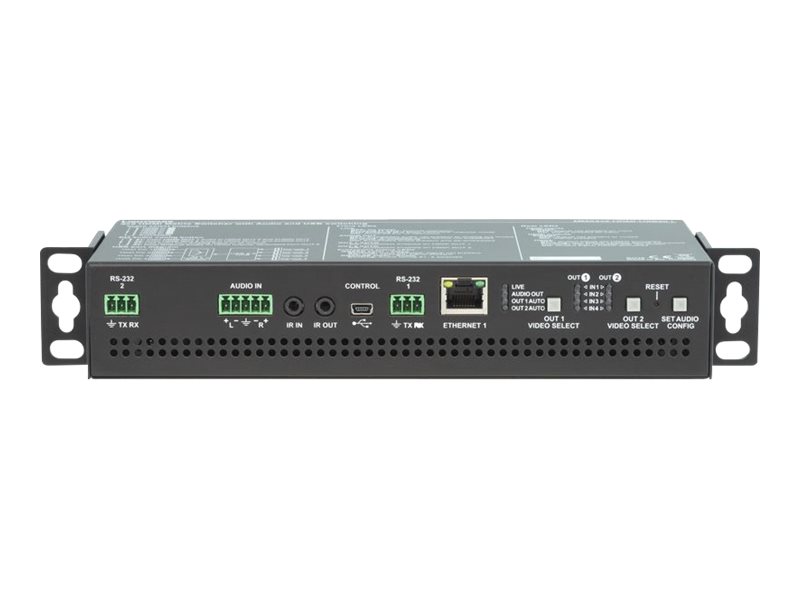

| Interfaces | 4 x HDMI input ¦ 2 x HDMI output ¦ 1 x audio output 5 pin terminal block ¦ 1 x audio input 5 pin terminal block ¦ 3 x LAN RJ-45 ¦ 1 x IrDA mini-jack ¦ 1 x IrDA output mini-jack ¦ 2 x serial (RS-232) 3 pin terminal block ¦ 1 x USB mini-USB ¦ 4 x USB 2.0 Type A ¦ 4 x USB 2.0 Type B ¦ 1 x GPIO 8 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | IR receiver, IR transmitter |
| Rack Mounting Kit | Optional |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 2 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 7 Watt |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 4 in |
| Height | 1.7 in |
