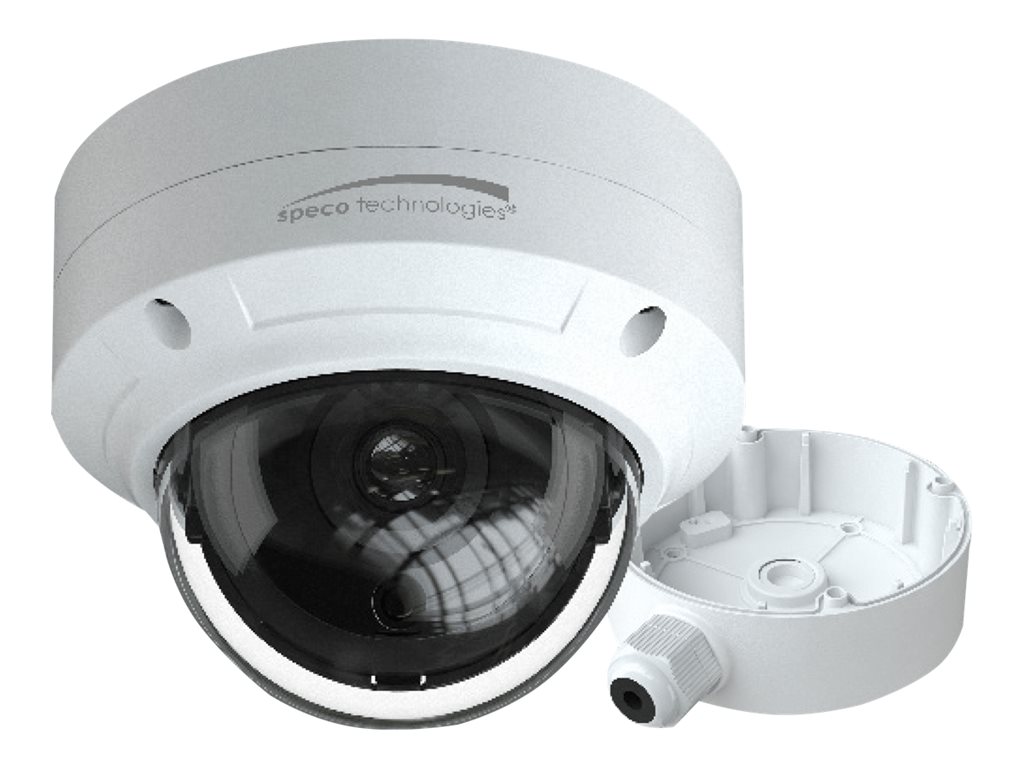

Network surveillance camera - dome - vandal / weatherproof - color (Day&Night) - 8 MP - 3840 x 2160 - fixed focal - audio - LAN 10/100 - H.264, H.265 - DC 12 V / PoE
| Main Specifications | |
|---|---|
| Product Description | Speco O8VD1 - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome - vandal / weatherproof |
| Audio | Yes: built-in microphone |
| Dimensions (WxDxH) | 4.7 in x 4.7 in x 3.5 in |
| Weight | 16.58 oz |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 20 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | PS CMOS - 1/2.7" - 8 MP |
| Minimum Illumination | 0.09 lux F2.0 ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Panning Range (degree) | 0 to 355 |
| Tilting Range (degree) | 0 to 67 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE |
| Features | Manual white balance, Backlight Compensation (BLC), sharpness control, saturation control, brightness control, contrast control, Object Detection, infrared cut filter, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Smart IR, reset button, password protection, triple video stream, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), Defog, auto white balance, 3D Digital Noise Reduction Technology, Line Crossing Detection, watermark, IP address filtering, region entrance detection, Corridor mode, ONVIF (Profile T) support, PoE support, Blur Detection |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -40 °F - 140 °F; 0 - 95% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Audio Formats | G.711a, G.711u |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 4.7 in |
| Depth | 4.7 in |
| Height | 3.5 in |
| Weight | 16.58 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Microphone - 3.5 mm jack |
| Supported Memory Cards | microSD Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Junction box |
| Compliant Standards | FCC, RoHS, IP67, IK10, IEEE 802.3af, IEEE 802.1x, NDAA |
| Color | White |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Power Device | 7 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - vandal / weatherproof |
| Digital Video Format | H.264, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Exposure Range | 1/25 sec - 1/100000 sec |
| Minimum Illumination | 0.09 lux F2.0 ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 100 ft |
| Frame Rate (max) | 20 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), sharpness control, saturation control, brightness control, contrast control, Object Detection, infrared cut filter, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Smart IR, reset button, password protection, triple video stream, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), Defog, auto white balance, 3D Digital Noise Reduction Technology, Line Crossing Detection, watermark, IP address filtering, region entrance detection, Corridor mode, ONVIF (Profile T) support, PoE support, Blur Detection |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 112 |
| Image Sensor | |
| Type | 8 MP PS CMOS 1/2.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, FTP, HTTP, NTP, SMTP, UDP/IP, RTSP, HTTPS, UPnP, PPPoE, QOS |
| Panning | |
| Range (degree) | 0 to 355 |
| Tilting | |
| Range (degree) | 0 to 67 |
