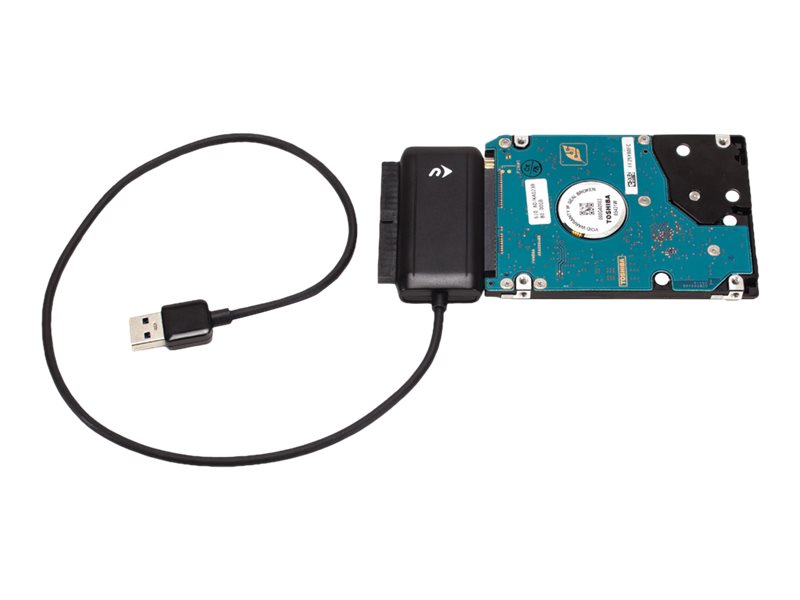

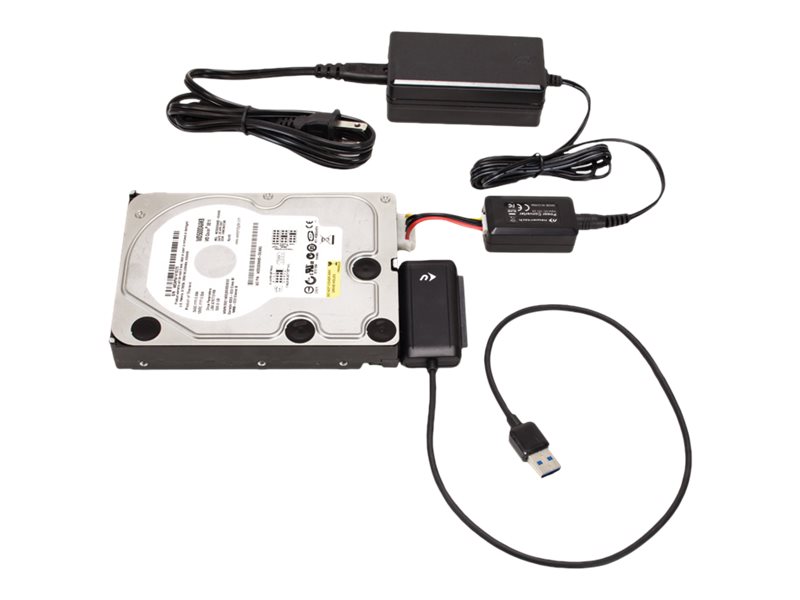

Storage controller - 2.5", 3.5" / 5.25" shared - ATA / SATA - USB 3.1 (Gen 1)
| Main Specifications | |
|---|---|
| Product Description | OWC NewerTech - storage controller - ATA / SATA - USB 3.1 (Gen 1) |
| Device Type | Storage controller - external |
| Bus Type | USB 3.1 (Gen 1) |
| Hard Drive Form Factor Compatibility | 2.5", 3.5" / 5.25" shared |
| Interface | ATA / SATA |
| Supported Devices | Hard drive, solid state drive, BD drive, CD drive, DVD drive |
| Power Source | Included AC adapter |
| Power | AC 100-240/ DC 12 V (50/60 Hz) |
| System Requirements | Apple MacOS X 10.3 - 10.8, Apple MacOS X 10.9 - 10.11, Apple macOS 10.12, Microsoft Windows Vista / 7 / 8 / 10 (64-bit versions), Microsoft Windows XP 64-bit Edition, Microsoft Windows Server 2003 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2016 |
| Dimensions (WxDxH) | 1.7 in x 2.5 in x 0.5 in |
| Weight | 1.59 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Storage controller - external |
| Hard Drive Form Factor Compatibility | 2.5", 3.5" / 5.25" shared |
| Host Bus | USB 3.1 (Gen 1) |
| Expansion / Connectivity | |
| Interfaces | 1 x SATA 3Gb/s - SATA combo ¦ 1 x ATA - 40 pin IDC |
| Connections | 1 x USB 3.1 (Gen 1) - 9 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x Serial ATA cable - external ¦ 1 x power 15 pin SATA to 4 pin mini-power cable ¦ 1 x power 4 pin to 4 pin mini-power cable ¦ 1 x USB 3.1 Gen 1 cable - integrated - 1.6 ft |
| Features | LED indicator |
| Compliant Standards | WEEE, FCC, RoHS |
| Power | |
| Power Source | Included AC adapter |
| Type | Power adapter |
| Voltage Required | AC 100-240/ DC 12 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Apple MacOS X 10.3 - 10.8, Apple MacOS X 10.9 - 10.11, Apple macOS 10.12, Microsoft Windows Vista / 7 / 8 / 10 (64-bit versions), Microsoft Windows XP 64-bit Edition, Microsoft Windows Server 2003 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2016 |
| Storage Controller | |
| Interface | ATA / SATA |
| Supported Devices | Hard drive, solid state drive, BD drive, CD drive, DVD drive |
| Dimensions & Weight | |
| Width | 1.7 in |
| Depth | 2.5 in |
| Height | 0.5 in |
| Weight | 1.59 oz |
