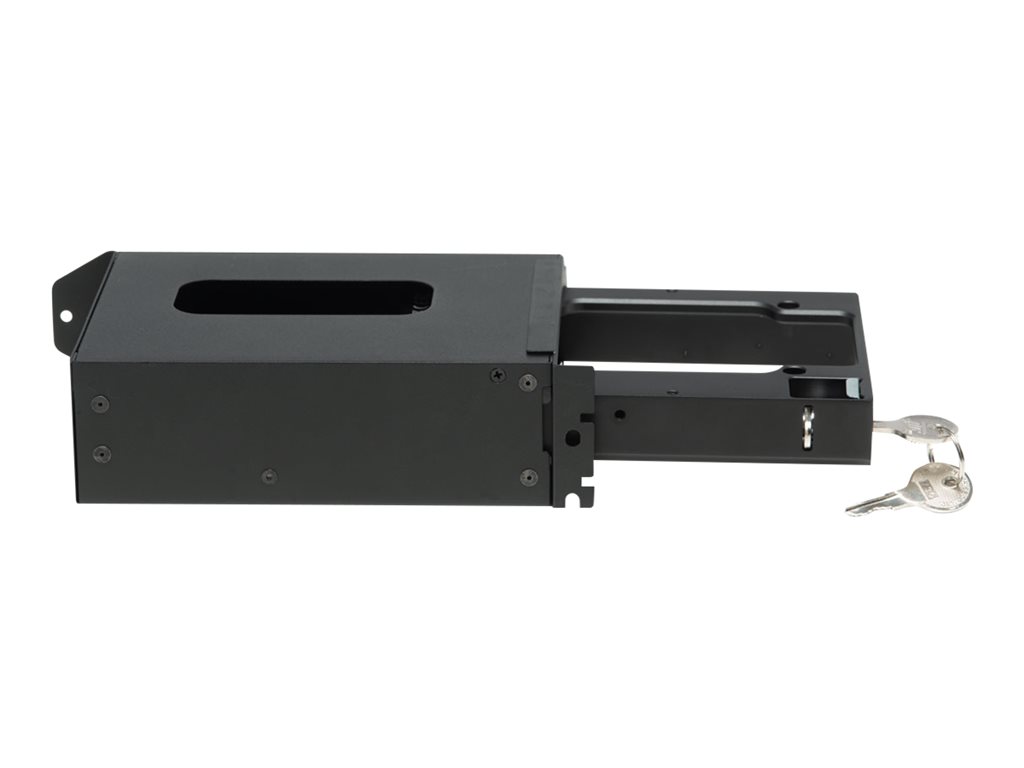

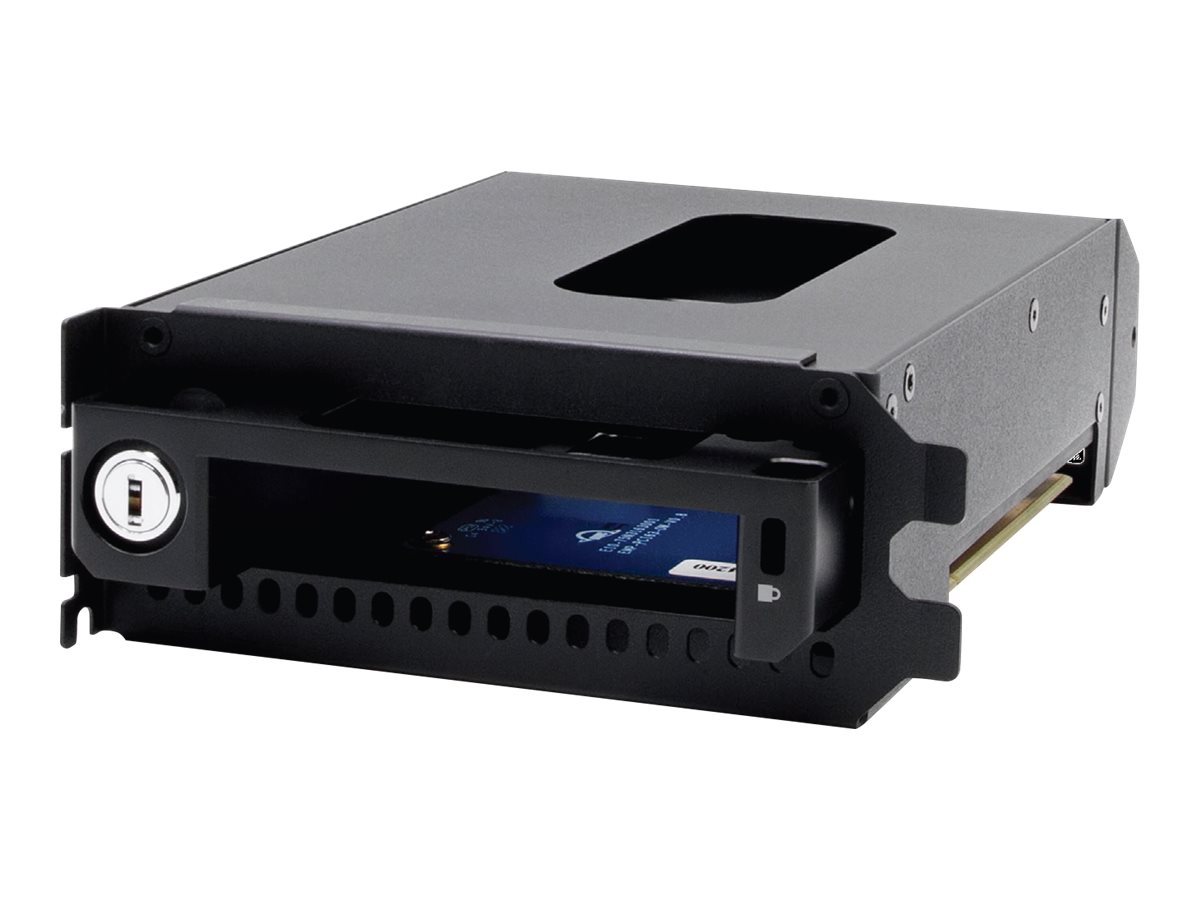

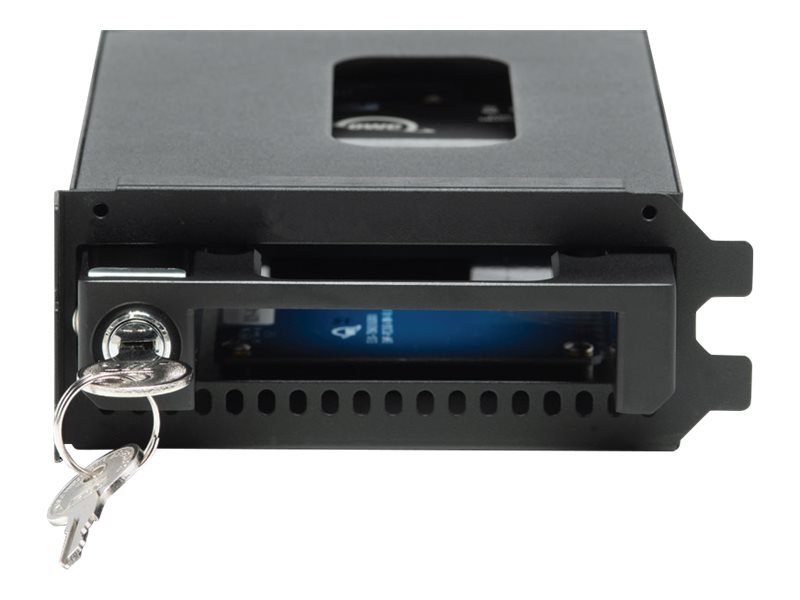

Storage receiving frame (bay)
| Main Specifications | |
|---|---|
| Product Description | OWC Interchange System - storage receiving frame (bay) |
| Device Type | Storage receiving frame (bay) |
| Compatible Bay | 1 PCIe card |
| Bay Connector | U.2 (SFF-8639) |
| System Requirements | Apple macOS 10.14 or later, Windows 10 (32/64 bits) |
| Dimensions (WxDxH) | 1.8 in x 7.2 in x 4.7 in |
| Weight | 23.56 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Storage receiving frame (bay) |
| Expansion / Connectivity | |
| Interfaces | 1 x U.2 NVMe |
| Compatible Bay | 1 x internal PCIe card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | U.2 Interchange System drive carrier tray, 2 security keys |
| Features | Supports NVM Express, lockable tray |
| Software / System Requirements | |
| OS Required | Apple macOS 10.14 or later, Windows 10 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Storage Controller | |
| Processor | No CPU |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 7.2 in |
| Height | 4.7 in |
| Weight | 23.56 oz |
