KVM / audio / USB switch - 8-port, dual head - 8 x KVM / audio / USB - 1 local user - desktop
| Main Specifications | |
|---|---|

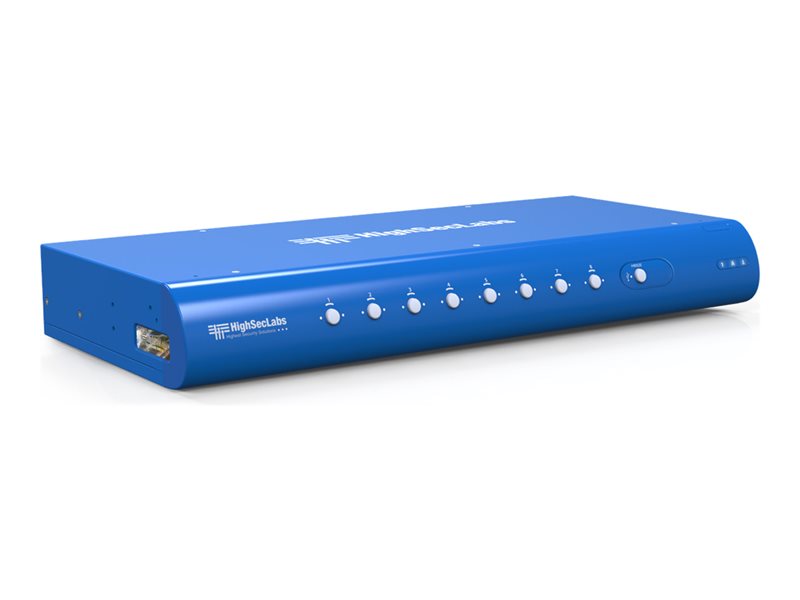

| Product Description | HighSecLabs Secure DK82PPU-3 - KVM / audio / USB switch - 8-port, dual head - 8 ports |
| Device Type | KVM / audio / USB switch - 8 ports |
| Subtype | KVM |
| Ports | 8 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Features | Dual head, 4K resolution support, VDT, black list, anti-tampering protection, Freeze USB, NIAP Protection Profile 3.0, LED status indicator, intrusion detection |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 17.3 in x 8 in x 2.4 in |
| Weight | 6.39 lbs |
| System Requirements | Apple MacOS, Linux, Microsoft Windows |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM / audio / USB switch - 8 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 8 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Features | Dual head, 4K resolution support, VDT, black list, anti-tampering protection, Freeze USB, NIAP Protection Profile 3.0, LED status indicator, intrusion detection |
| Expansion / Connectivity | |
| Interfaces | 1 x management RJ-45 console ¦ 1 x mouse (USB) Type A console ¦ 1 x keyboard (USB) Type A console ¦ 1 x audio output mini-jack console ¦ 8 x keyboard (USB) / mouse (USB) Type B ¦ 8 x audio input mini-jack ¦ 2 x DisplayPort output console ¦ 16 x DisplayPort input ¦ 1 x USB 3.0 Type A console |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| MTBF | 10 years |
| Compliant Standards | FCC Class B certified, TUV, VCCI, RCM, NIAP PP 3.0 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 35 Watt |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 8 in |
| Height | 2.4 in |
| Weight | 6.39 lbs |
