Video/audio switch - desktop
| Main Specifications | |
|---|---|

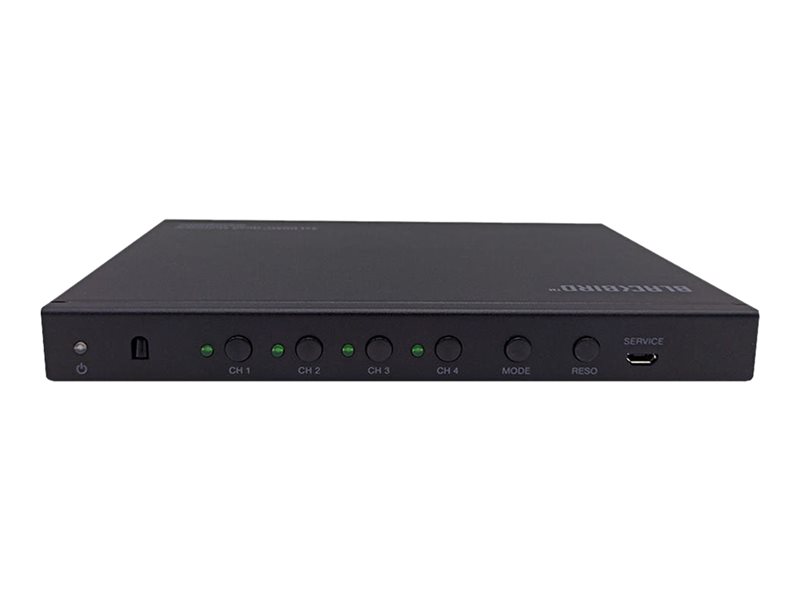

| Product Description | Monoprice Blackbird 4x1 HDMI 1.4 Switch - video/audio switch |
| Device Type | Video/audio switch |
| Subtype | HDMI |
| Performance | Bandwidth: 6.75 Gbps |
| Features | HDCP compliant, 4K resolution support, LPCM 2.0 support |
| Compliant Standards | HDCP 2.2 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 6.3 in x 3.3 in x 0.6 in |
| Weight | 11.89 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio switch |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Performance | Bandwidth: 6.75 Gbps |
| Features | HDCP compliant, 4K resolution support, LPCM 2.0 support |
| Compliant Standards | HDCP 2.2 |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input Type A ¦ 1 x HDMI output Type A ¦ 1 x VGA output HD-15 ¦ 1 x audio output mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

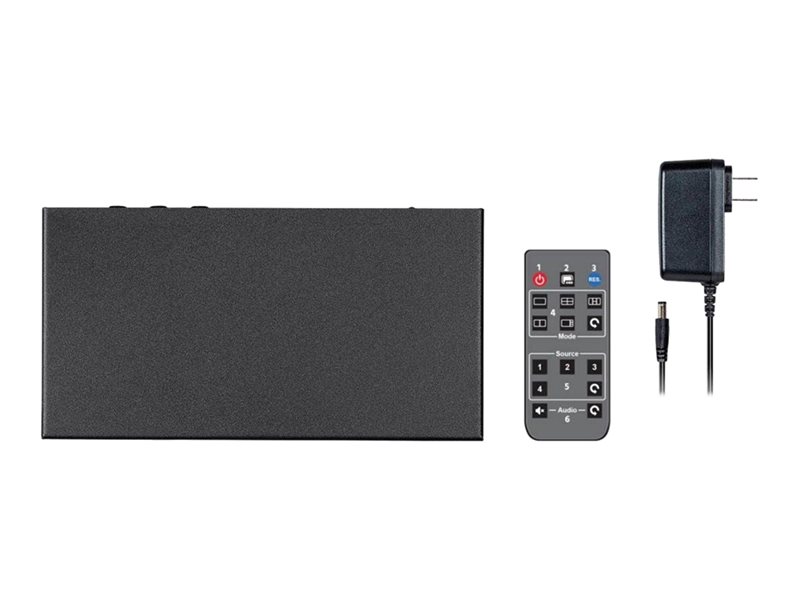

| Included Accessories | Remote control |
| Power | |
| Power Device | External power adapter |
| Power Provided | 5 V - 2 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 6 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 6.3 in |
| Depth | 3.3 in |
| Height | 0.6 in |
| Weight | 11.89 oz |
