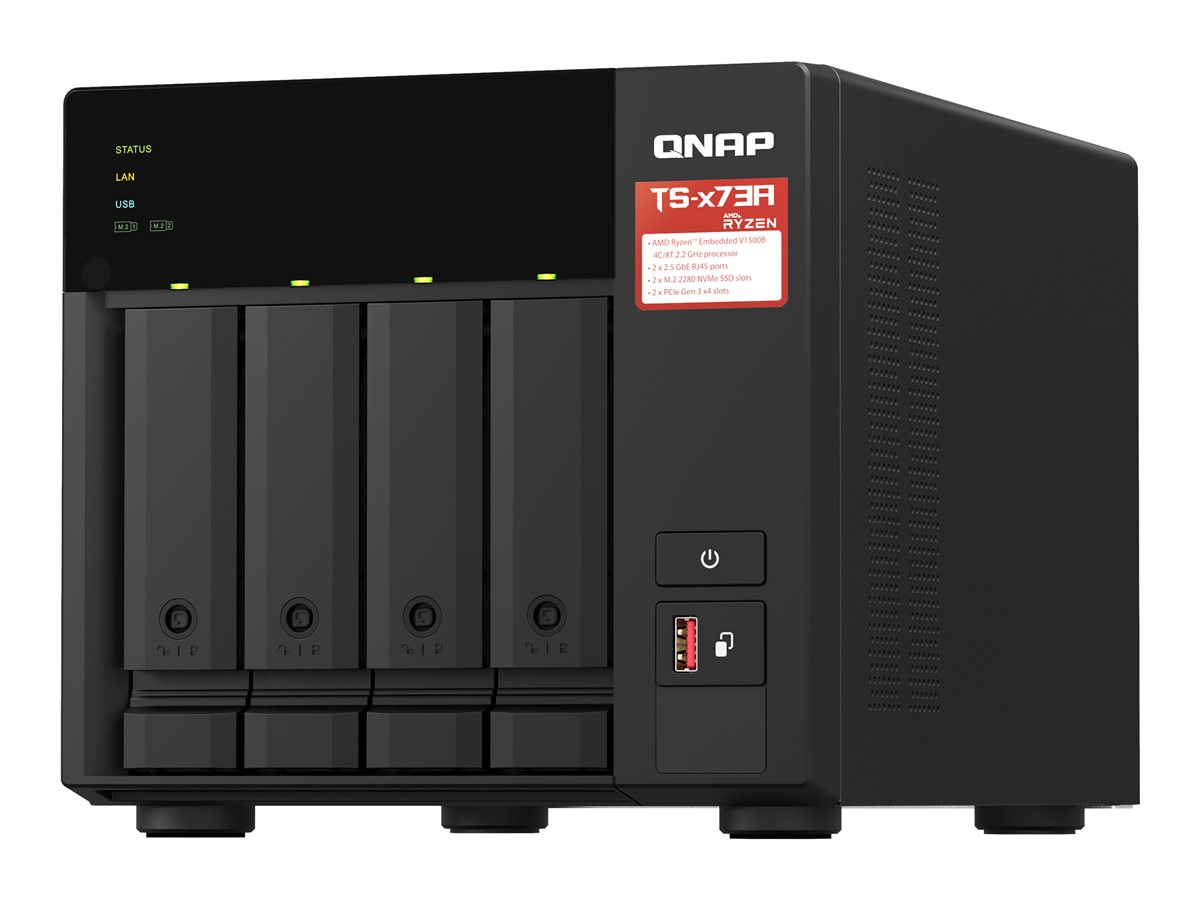

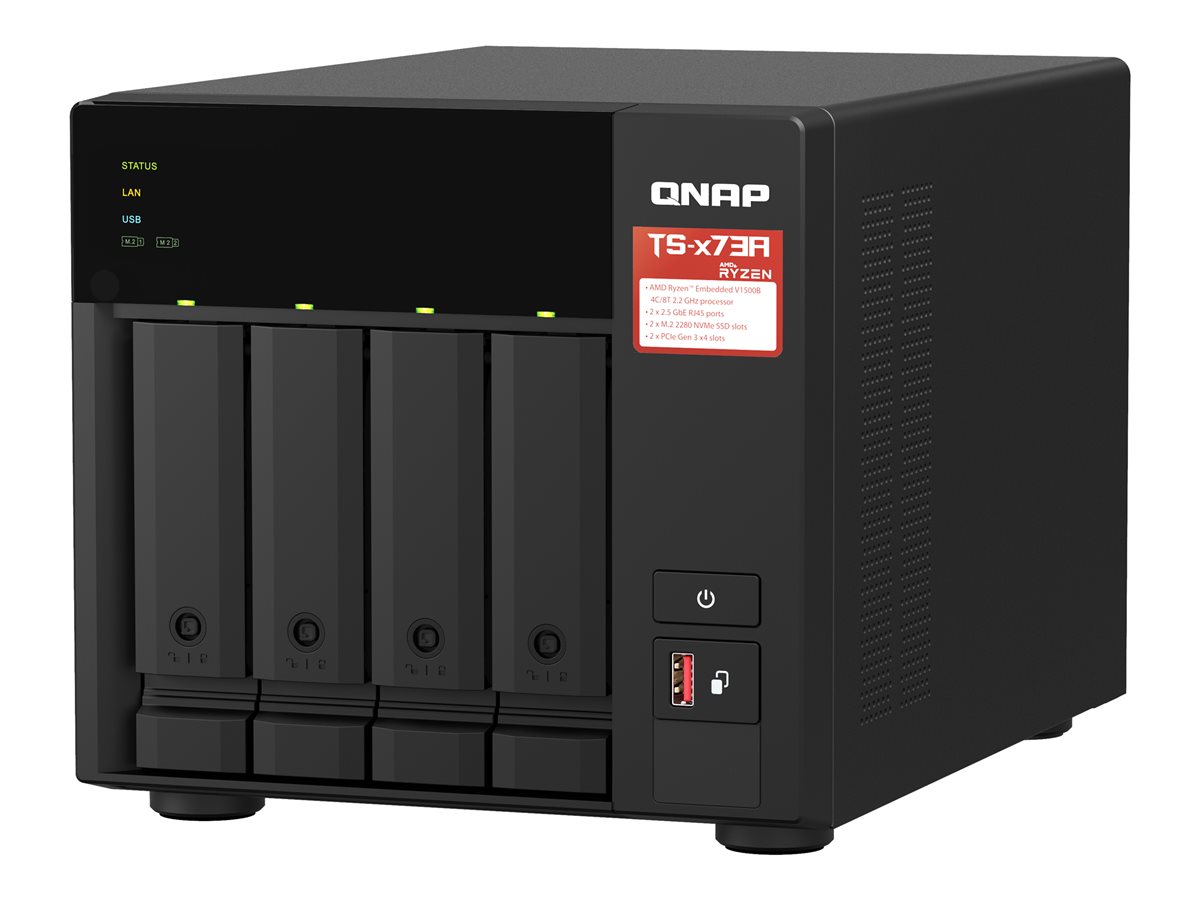

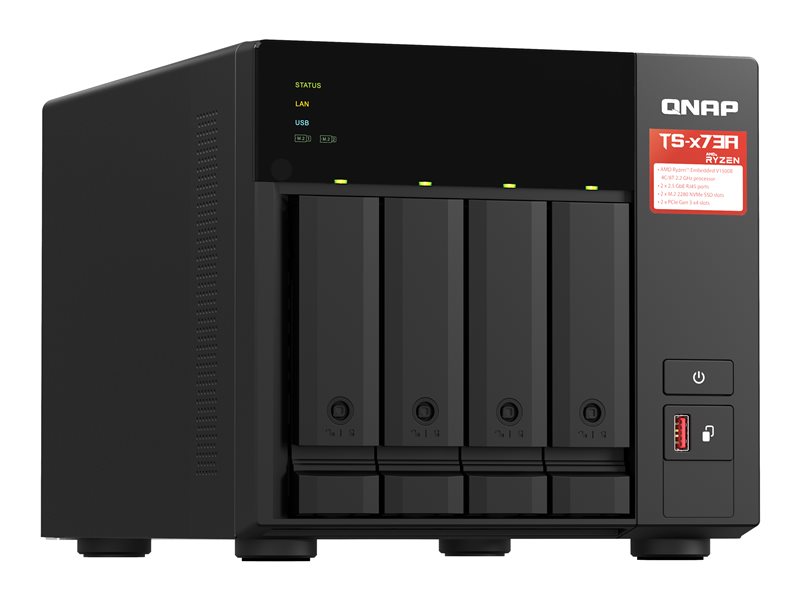

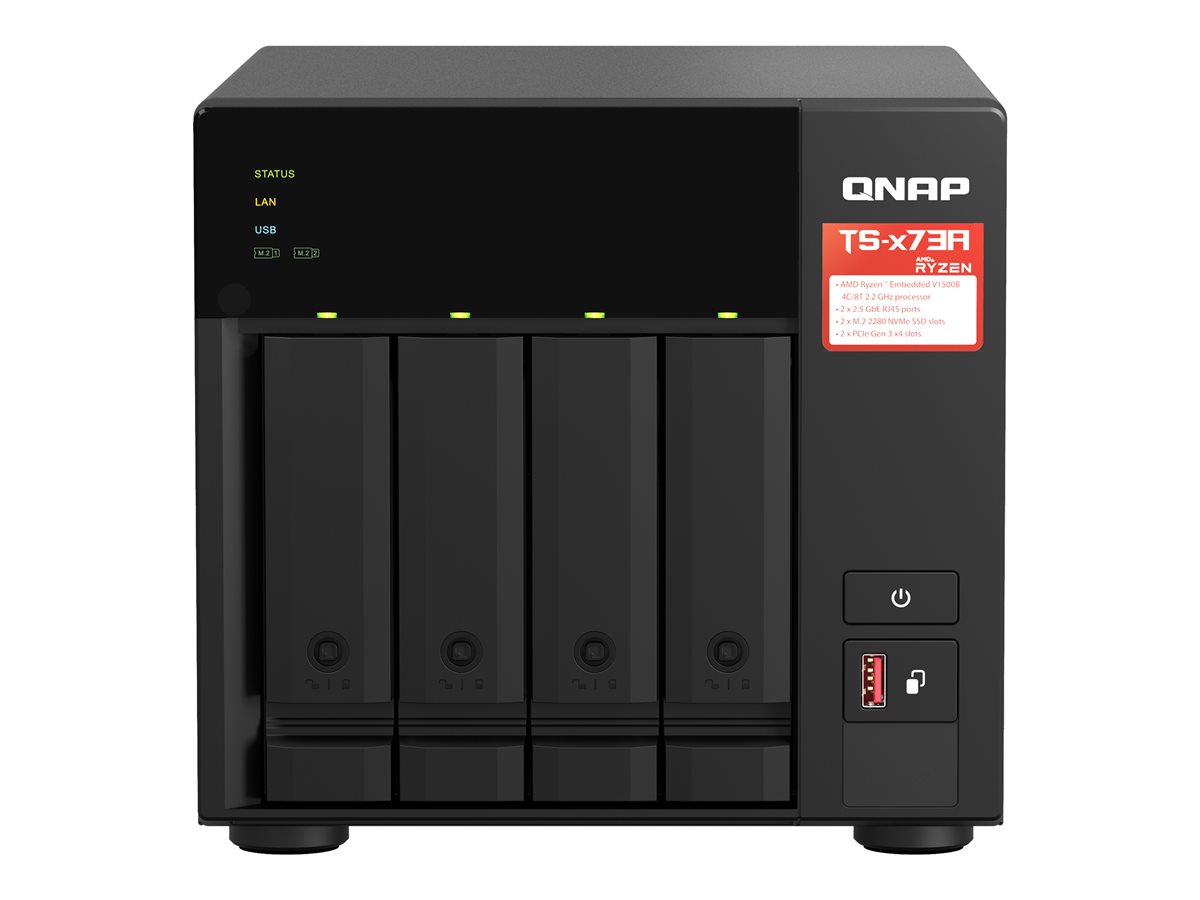

NAS server - 4 bays - SATA 6Gb/s - RAM 8 GB - 2.5 Gigabit Ethernet
| Main Specifications | |
|---|---|
| Product Description | QNAP TS-473A - NAS server |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Dimensions (WxDxH) | 7.8 in x 11.1 in x 7.4 in |
| Weight | 11.09 lbs () |
| Localization | United States |
| Processor | 1 x AMD Ryzen Embedded V1500B 2.2 GHz (Quad-Core) |
| Storage Controller | RAID SATA 6Gb/s |
| Networking | 100Mb LAN, 1GbE, 2.5GbE |
| RAM | 8 GB |
| Power | AC 100 - 240 V |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Width | 7.8 in |
| Depth | 11.1 in |
| Height | 7.4 in |
| Weight | 11.09 lbs () |
| Built-in Devices | LED panel |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 1 (free) x SO-DIMM 260-pin ¦ 2 (total) / 2 (free) x M.2 2280 ¦ 2 (total) / 2 (free) x PCI Express 3.0 x4 |

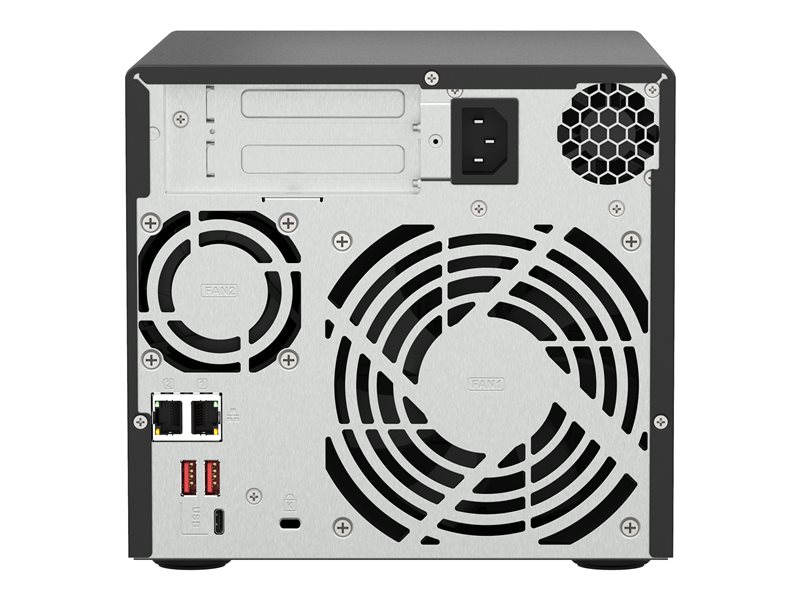

| Interfaces | 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 3 x USB 3.2 Gen 2 - Type A ¦ 1 x USB 3.2 Gen 1 - Type C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Features | Dual boot, alarm buzzer, built-in 2 cooling fans |
| Compliant Standards | ISO 7779 |
| Included Accessories | 12 x flat head screws (for 2.5" HDD), 12 x flat head screws (for 3.5" HDD), 2 x hard drive security key, 2 x M.2 SSD heatsink, power cable |
| Networking | |
| Data Link Protocol | 100Mb LAN, 1GbE, 2.5GbE |
| Features | Jumbo Frames support, WOL, hardware encryption, reset button, USB One Touch Copy, AES encryption |
| Encryption Algorithm | AES-NI |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100 - 240 V |
| Power Consumption Operational | 29.792 Watt |
| Power Consumption Stand by | 19.576 Watt |
| Power Provided | 250 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Sound Emission | 21.4 dBA |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| Processor / Memory | |
| Processors Installed | 1 x AMD Ryzen Embedded V1500B 2.2 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| RAM | 8 GB (installed) / 64 GB (supported) - DDR4 |
| Flash Memory Installed | 5 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 13.32 lbs |
