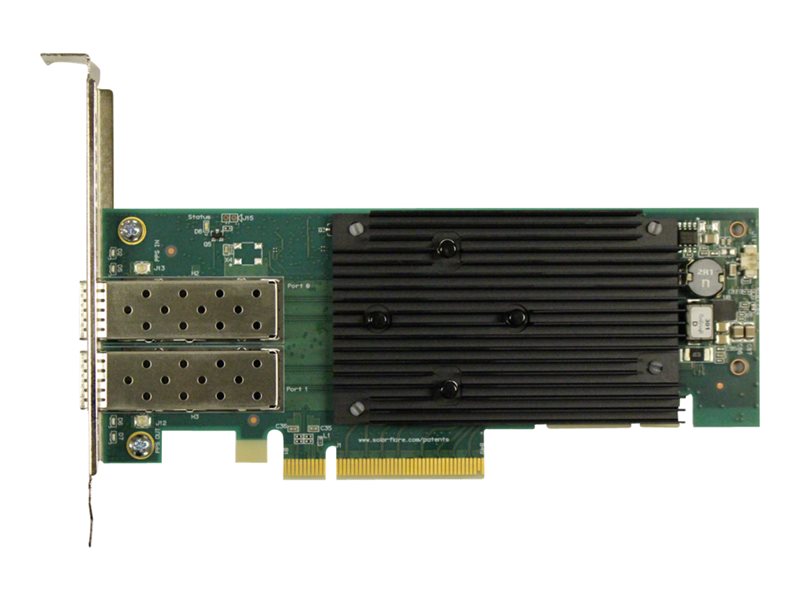

Network adapter - PCIe 3.1 x8 low profile - 25 Gigabit SFP28 x 2 - for ThinkAgile VX2330 Appliance; VX3330 Appliance; VX3530-G Appliance; VX7330-N Appliance
| Main Specifications | |
|---|---|
| Product Description | Solarflare X2522-Plus - network adapter - PCIe 3.1 x8 - 25 Gigabit SFP28 x 2 |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.1 x8 |
| PCI Specification Revision | PCIe 3.1 |
| Ports | 25 Gigabit SFP28 x 2 |
| Dimensions (WxDxH) | 6.6 in x 2.7 in |
| Data Link Protocol | 10GbE, 25GbE |
| Data Transfer Rate | 25 Gbps |
| Capacity | Jumbo frame size: 9000 |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Compliant Standards | IEEE 802.3-2012, IEEE 802.3bx, IEEE 802.3-2015, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 1588-2008 |
| System Requirements | Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.0, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4 |
| Manufacturer Warranty | 1-year warranty |
| Designed For | ThinkAgile VX2330 Appliance 7Z62; VX3330 Appliance 7Z62; VX3331 7Z62; VX3530-G Appliance 7Z63; VX5530 Appliance 7Z63; VX7330-N Appliance 7Z62; VX7530 Appliance 7Z63; ThinkSystem SR630 7X01, 7X02; SR645 7D2X, 7D2Y; SR650 7X05, 7X06; SR650 V2 7D15; SR665 7D2V, 7D2W; SR950 7X11, 7X12 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.1 x8 |
| PCI Specification Revision | PCIe 3.1 |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Gb Ethernet/25Gb Ethernet - SFP28 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Low-profile bracket, full-height bracket |
| Compliant Standards | FCC, UL, RoHS, Directive 2011/65/EU |
| Networking | |
| Ports | 25 Gigabit SFP28 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Data Transfer Rate | 25 Gbps |
| Capacity | Jumbo frame size: 9000 |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Features | Jumbo Frames support (up to 9000 bytes), TCP/UDP proxy, IP address filtering, MAC address filtering, RSS, VLAN filtering, Stratum 3E oscillator, TCP Direct, LRO, LSO, GSO, TSO, TCP/IP offloading, UDP/IP offloading, UEFI PXE Boot, MCTP over PCIe VDM, Q-in-Q tunneling, GENEVE support, NVGRE, VXLAN, NetQueue, SR-IOV, VMQueue, MSI-X, Interrupt coalescing, scalable |
| Compliant Standards | IEEE 802.3-2012, IEEE 802.3bx, IEEE 802.3-2015, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 1588-2008 |
| Software / System Requirements | |
| Software Included | Solarflare Onload |
| OS Required | Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.0, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 80% |
| Dimensions & Weight | |
| Depth | 6.6 in |
| Height | 2.7 in |
| Compatibility Information | |
| Designed For | Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkSystem SR630 7X01, 7X02 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 7X05, 7X06 ¦ Lenovo ThinkSystem SR650 V2 7D15 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR950 7X11, 7X12 |
