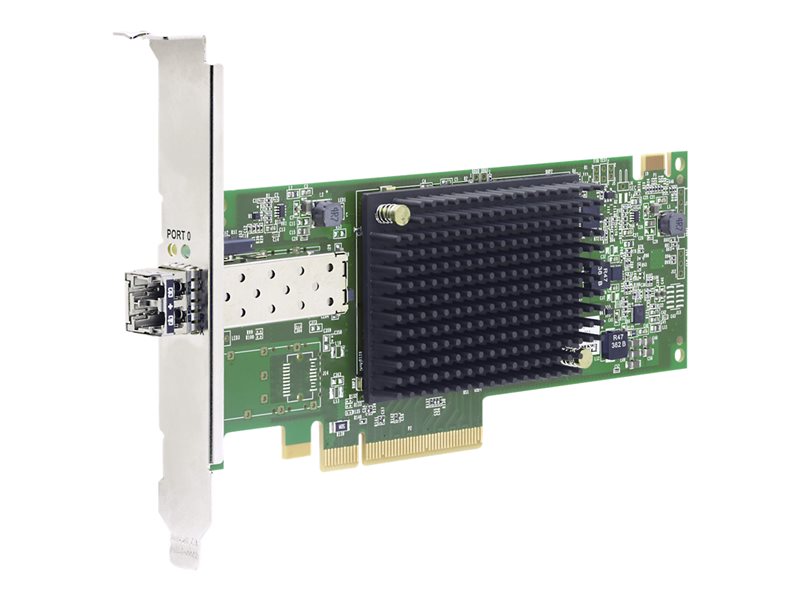

Host bus adapter - PCIe 4.0 x8 low profile - 32Gb Fibre Channel Gen 7 (Short Wave) x 1 - for ThinkSystem SR630 V2; SR635; SR645; SR650 V2; SR655; SR665; ST650 V2
| Main Specifications | |
|---|---|
| Product Description | Emulex LPe35000 V2 - host bus adapter - PCIe 4.0 x8 - 32Gb Fibre Channel Gen 7 (Short Wave) x 1 |
| Device Type | Host bus adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 4.0 x8 |
| PCI Specification Revision | PCIe 4.0 |
| Ports | 32Gb Fibre Channel Gen 7 (Short Wave) x 1 |
| Dimensions (WxDxH) | 6.6 in x 2.7 in |
| Cabling Type | Fibre Channel |
| Data Link Protocol | 32Gb Fibre Channel Gen 7 (SW) |
| Data Transfer Rate | 28.05 Gbps |
| System Requirements | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.5, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.0, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, SuSE Linux Enterprise Server 12 SP2, SuSE Linux Enterprise Server 12 SP2 with Xen, SuSE Linux Enterprise Server 12 SP3, SuSE Linux Enterprise Server 12 SP3 with Xen, SuSE Linux Enterprise Server 12 SP4, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, SUSE Linux Enterprise Server 15 with Xen, Ubuntu 18.04 LTS, VMware vSphere Hypervisor 6.5 (ESXi), VMware vSphere Hypervisor 6.5 (ESXi) Update 1, VMware vSphere Hypervisor 6.5 (ESXi) Update 2, VMware vSphere Hypervisor 6.5 (ESXi) Update 3, VMware vSphere Hypervisor 6.7 (ESXi), VMware vSphere Hypervisor 6.7 (ESXi) Update 1, VMware vSphere Hypervisor 6.7 (ESXi) Update 2, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2 |
| Manufacturer Warranty | 1-year warranty |
| Designed For | ThinkSystem SR630 V2 7Z70, 7Z71; SR635 7Y98, 7Y99; SR645 7D2X, 7D2Y; SR650 V2 7D15, 7Z72, 7Z73; SR655 7Y00, 7Z01; SR665 7D2V, 7D2W; ST650 V2 7Z74, 7Z75 |
| General | |
| Device Type | Host bus adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 4.0 x8 |
| PCI Specification Revision | PCIe 4.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x 32Gb Fibre Channel Gen 7 (Short Wave) - SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Low-profile bracket, full-height bracket |
| Compliant Standards | AS/NZS CISPR22:2009+A1 Class A, RCM, China RoHS, CSA 22.2, CSA 60950-1-07, cURus, EN 55022:2010 Class A, EN 55024:2010, EN 55032:2012, FCC Part 15 A, VCCI Class A, ICES-003 Class A, MSIP Class A, Directive 2011/65/EU, RoHS, EN60950-1+A11+A1+A12+A2, TUV, BSMI Class A, UL 60950-1 Second Edition |
| Networking | |
| Ports | 32Gb Fibre Channel Gen 7 (Short Wave) x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Fibre Channel |
| Data Link Protocol | 32Gb Fibre Channel Gen 7 (Short Wave) |
| Fibre Channel | FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-FS-3, FC-FS-4, FC-FS-5, FC-GS-2, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-GS-7, FC-LS-2, FC-LS-3, FC-MI, FC-NVMe, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-5, FC-PI-6, FC-PI-7, FC-Tape, FCP-2, FCP-4, FCP-3, SBC-3, SPC-3, SPC-4, SSC-2, SSC-3, SSC-4 |
| Data Transfer Rate | 28.05 Gbps |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.5, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.0, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, SuSE Linux Enterprise Server 12 SP2, SuSE Linux Enterprise Server 12 SP2 with Xen, SuSE Linux Enterprise Server 12 SP3, SuSE Linux Enterprise Server 12 SP3 with Xen, SuSE Linux Enterprise Server 12 SP4, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, SUSE Linux Enterprise Server 15 with Xen, Ubuntu 18.04 LTS, VMware vSphere Hypervisor 6.5 (ESXi), VMware vSphere Hypervisor 6.5 (ESXi) Update 1, VMware vSphere Hypervisor 6.5 (ESXi) Update 2, VMware vSphere Hypervisor 6.5 (ESXi) Update 3, VMware vSphere Hypervisor 6.7 (ESXi), VMware vSphere Hypervisor 6.7 (ESXi) Update 1, VMware vSphere Hypervisor 6.7 (ESXi) Update 2, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Depth | 6.6 in |
| Height | 2.7 in |
| Compatibility Information | |
| Designed For | Lenovo ThinkSystem SR630 V2 7Z70, 7Z71 ¦ Lenovo ThinkSystem SR635 7Y98, 7Y99 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z72, 7Z73 ¦ Lenovo ThinkSystem SR655 7Y00, 7Z01 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 |
