Motherboard - ATX - LGA2066 Socket - C422 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2 x 10 Gigabit LAN - onboard graphics - HD Audio
| Main Specifications | |
|---|---|

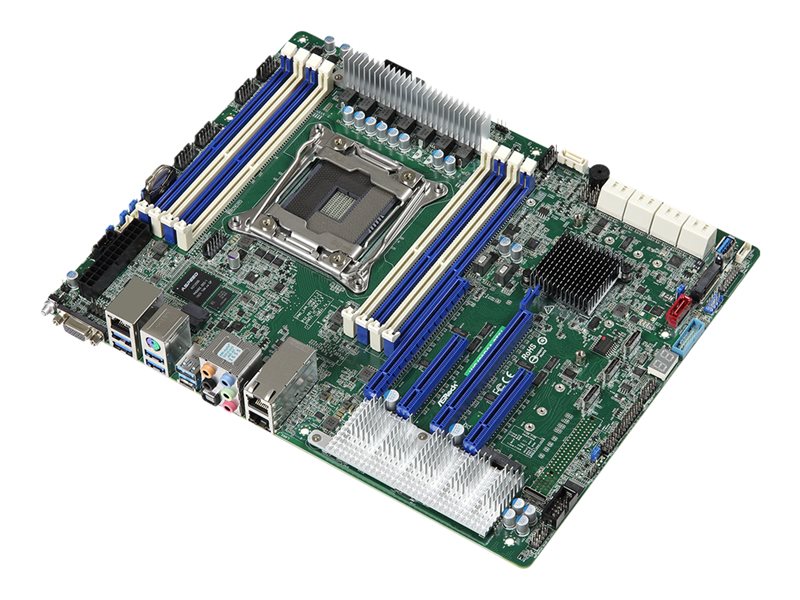

| Product Description | ASRock Rack WC422D8A-2T/U - motherboard - ATX - LGA2066 Socket - C422 |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C422 |
| Processor Socket | 1 x LGA2066 Socket |
| Max RAM Size | 512 GB |
| RAM Supported | 8 DIMM slots - DDR4 registered, Load-Reduced |
| Storage Ports | 10 x SATA-600, 4 x OCuLink port, 2 x M.2 |
| USB / FireWire Ports | 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 5 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via headers) |
| Graphics | ASPEED AST2500 |
| Dedicated Video Memory | 4 GB DDR4 SDRAM |
| Audio | HD Audio |
| LAN | 2 x 10 Gigabit Ethernet |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C422 |
| Processor Socket | LGA2066 Socket |
| Max Processors Qty | 1 |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin (1.2 V) ¦ 2 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x8 |
| Storage Interfaces | Marvell 88SE9172: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe -connectors: 4 x OCuLink ¦ SATA-600 -connectors: 8 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2 |

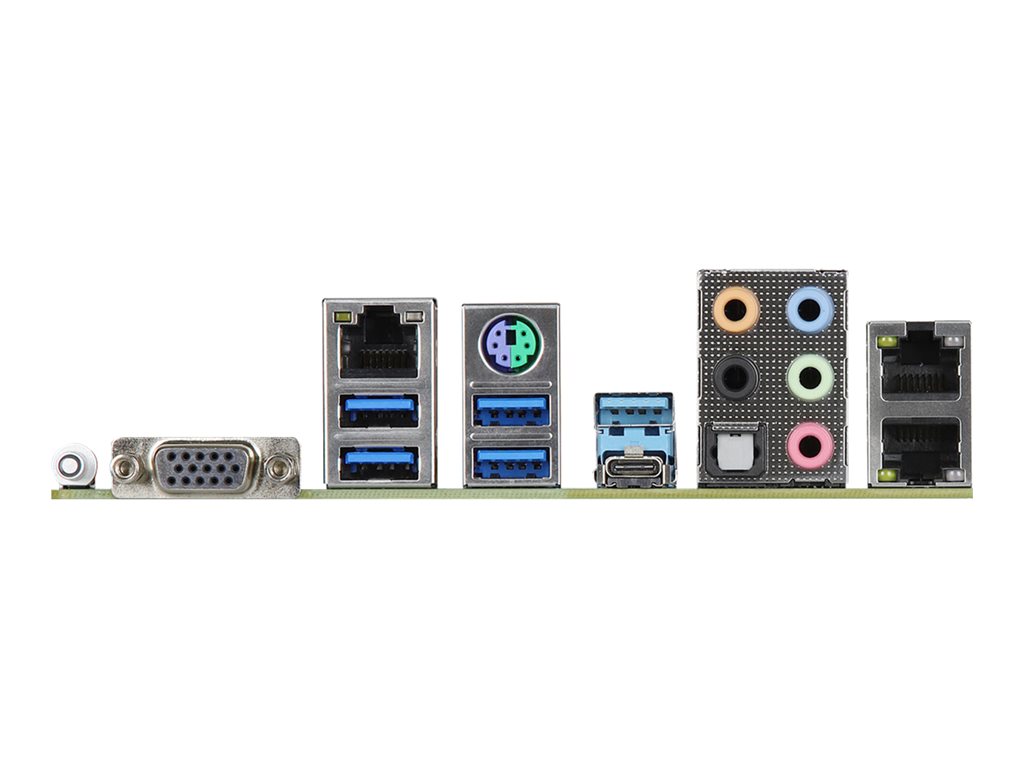

| Interfaces | 2 x LAN (10Gigabit Ethernet) ¦ 1 x USB-C Gen2 ¦ 1 x VGA ¦ 1 x management ¦ 4 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK ¦ 1 x USB 3.2 Gen 2 |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x USB 3.2 Gen 1 - Type A ¦ 1 x VGA - header ¦ 2 x USB 2.0 - header ¦ 2 x SGPIO - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio |
| Audio Codec | Realtek ALC892 |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | IPMI 2.0 support, ACPI 2.0 support, SMBIOS 2.8 support, UEFI BIOS |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Rack Instant Flash, Dual LAN Teaming, Preboot eXecution Environment (PXE), Energy Efficient Ethernet 802.3az, AMD Quad CrossFireX technology support |
| LAN | |
| Network Controller | Intel X550 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| Dedicated Video Memory | 4 GB DDR4 SDRAM |
| Supported RAM | |
| Max Size | 512 GB |
| Technology | DDR4 |
| Bus Clock | 1600 MHz, 1866 MHz, 2133 MHz, 2400 MHz, 2666 MHz |
| Registered or Buffered | Registered, Load-Reduced |
| Features | Quad channel memory architecture |
| Details | 256 GB - registered ¦ 512 GB - Load-Reduced |
