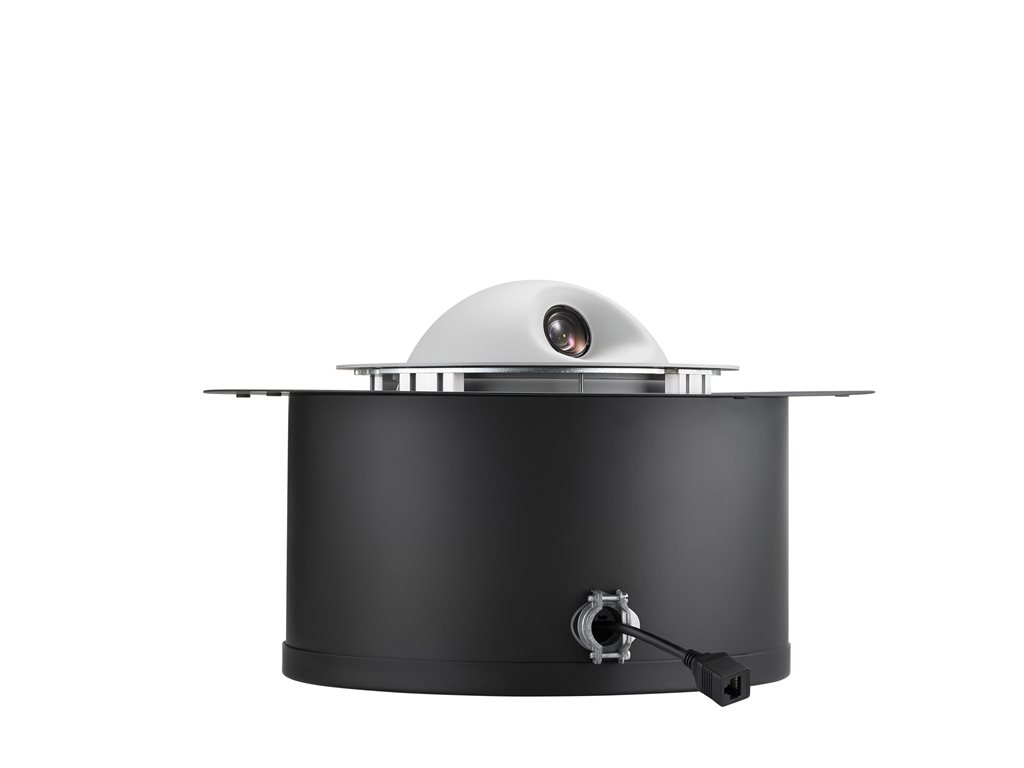

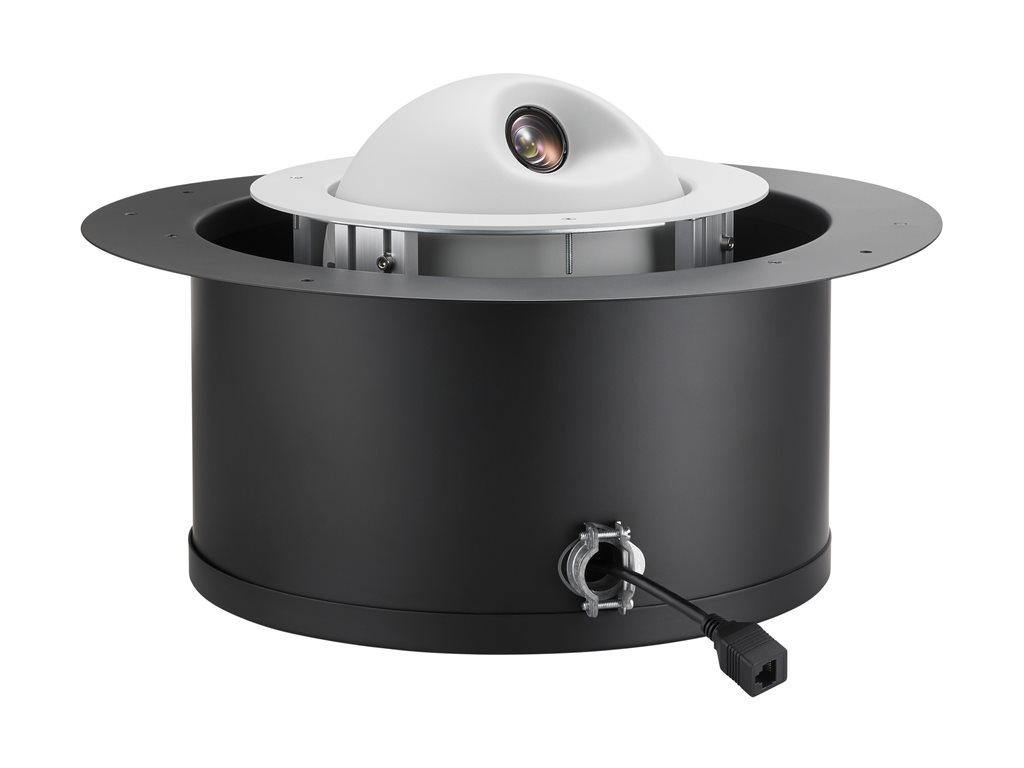

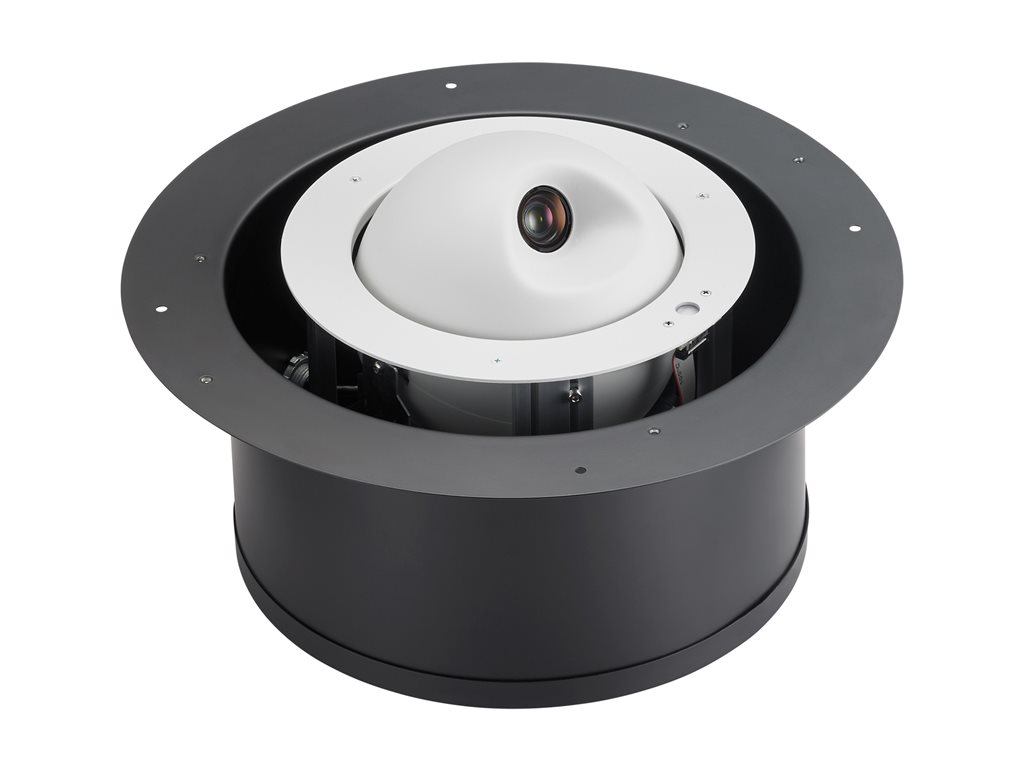

Conference camera - PTZ - color - 8.6 MP - 1080/60p - motorized - HDBaseT - H.264 - PoE ++
| Main Specifications | |
|---|---|
| Product Description | Vaddio - conference camera |
| Device Type | Conference camera - pan / tilt / zoom |
| Camera Mount Type | In-ceiling mount |
| Dimensions (WxDxH) | 16 in x 16 in x 9.3 in |
| Weight | 14.99 lbs |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 20 x |
| Video Modes | 1080/60p |
| Optical Sensor Type | Exmor R CMOS - 1/2.5" - 8.6 MP |
| Minimum Illumination | 1.6 lux |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.4 mm - 88.4 mm |
| Focus Adjustment | Automatic, manual (min distance 3.1 in) |
| Lens Iris | F/2.0-3.8 |
| Panning Range (degree) | -160 to +160 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | HDBaseT |
| Voltage | PoE ++ |
| Features | Manual white balance, Backlight Compensation (BLC), manual gain control, Wide Dynamic Range (WDR) Enhanced, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, 10x IntelliZoom, 17 preset positions, invertible, Spotlight Compensation Mode, 70.2° field of view |
| Manufacturer Warranty | 2-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Conference camera |
| Camera Mount Type | In-ceiling mount |
| Connectivity Technology | Wired |
| Width | 16 in |
| Depth | 16 in |
| Height | 9.3 in |
| Weight | 14.99 lbs |
| Localization | North America |
| Expansion / Connectivity | |
| Ports | HDBase-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

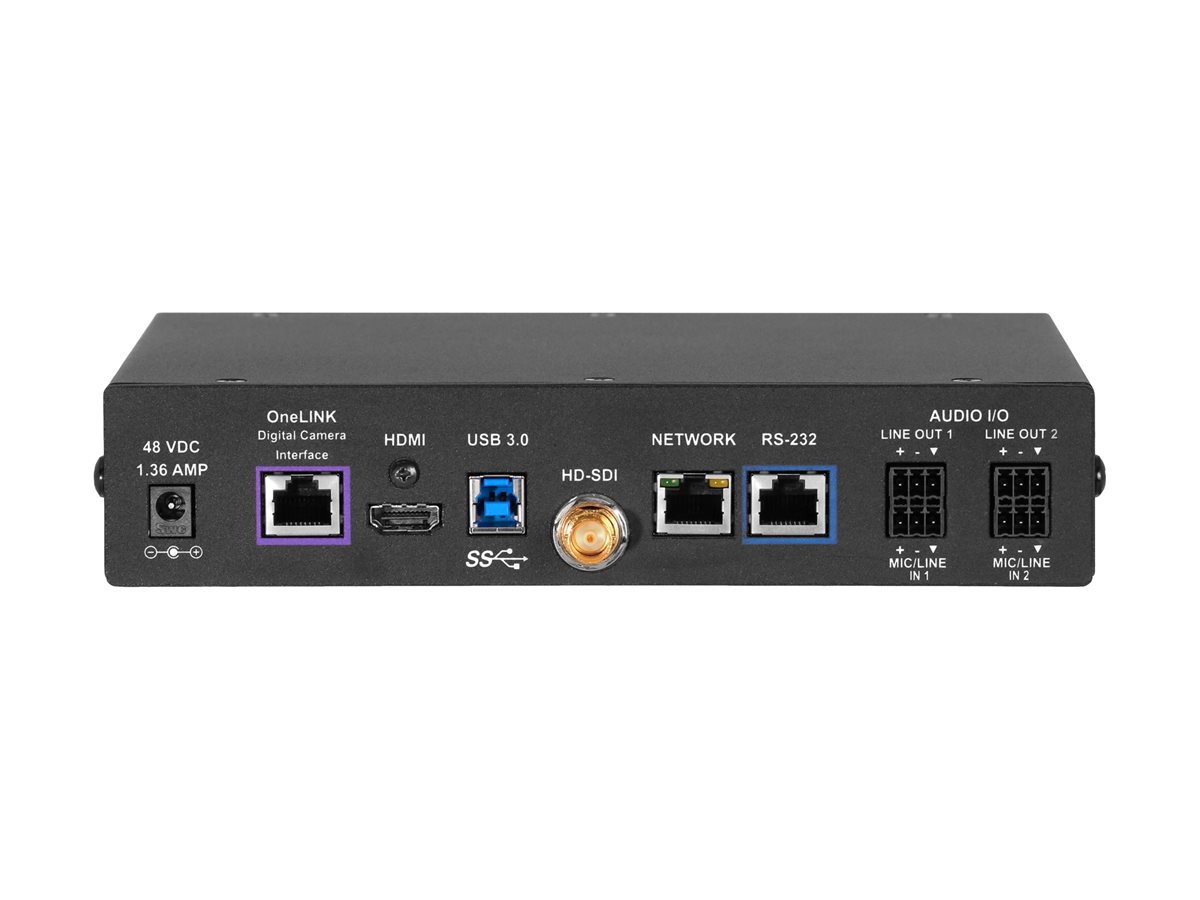

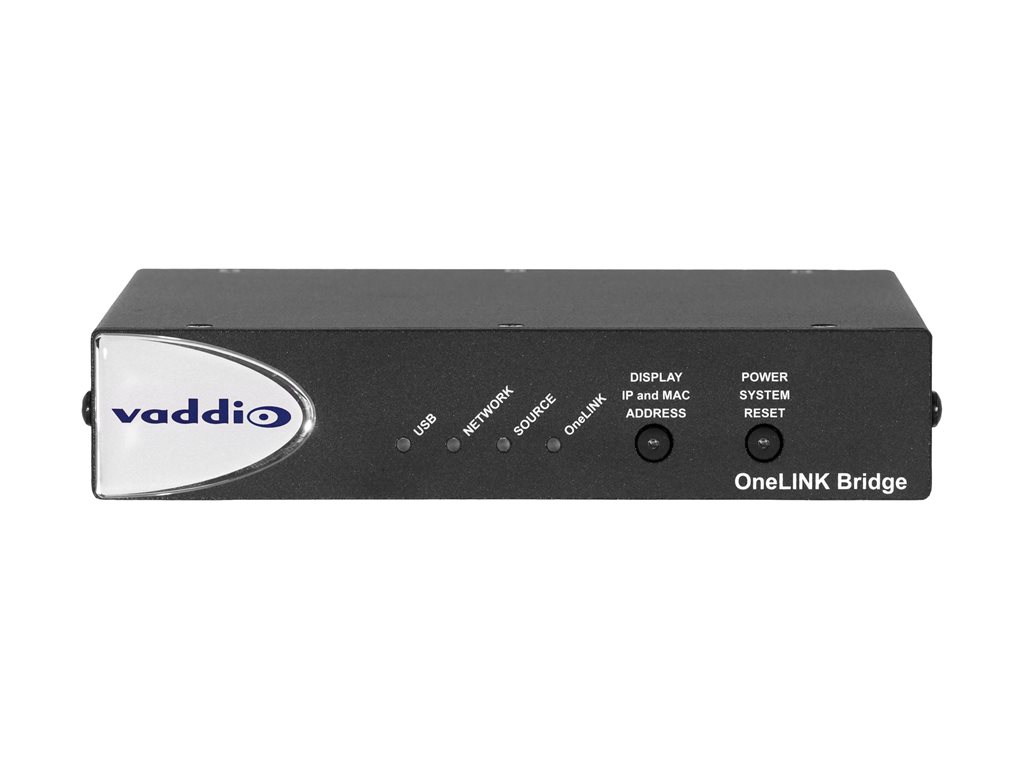

| Included Accessories | 3 screws, Vaddio IR Remote Commander, OneLINK Bridge AV interface, ceiling tile brace |
| Compliant Standards | FCC |
| Color | White |
| Power | |
| Power Requirements | PoE ++ |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264 |
| Video Modes | 1080/60p |
| Digital Zoom | 10 |
| Minimum Illumination | 1.6 lux |
| Features | Manual white balance, Backlight Compensation (BLC), manual gain control, Wide Dynamic Range (WDR) Enhanced, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, 10x IntelliZoom, 17 preset positions, invertible, Spotlight Compensation Mode, 70.2° field of view |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 4.4 mm - 88.4 mm |
| Lens Iris | F/2.0-3.8 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.1 in |
| Image Sensor | |
| Type | 8.6 MP Exmor R CMOS 1/2.5" |
| Interfaces | |
| Network Interface | HDBaseT |
| Network Protocols | RTSP, Telnet, RTMP |
| Panning | |
| Range (degree) | -160 to +160 |
| Speed (degree/sec) | Up to 120 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
