Type 4 - battery enclosure - for P/N: GVSUPS25KFS, GVSUPS40K, GVSUPS40KGS, GVSUPS50KGS, GVSUPS60KGS, GVSUPS80KGS
| Main Specifications | |
|---|---|

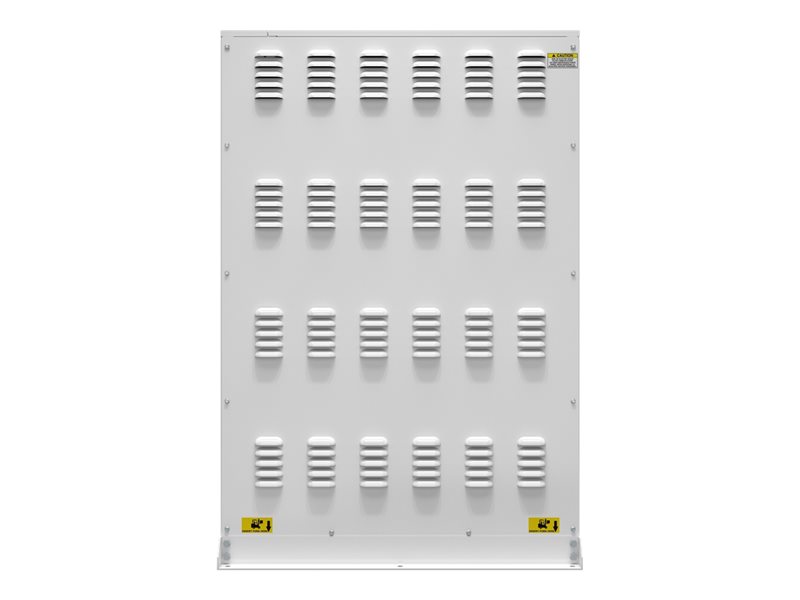

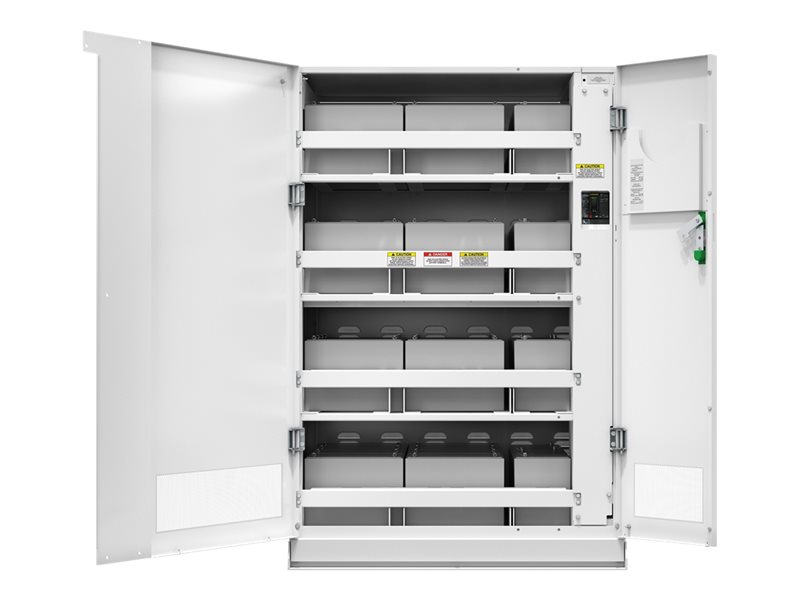

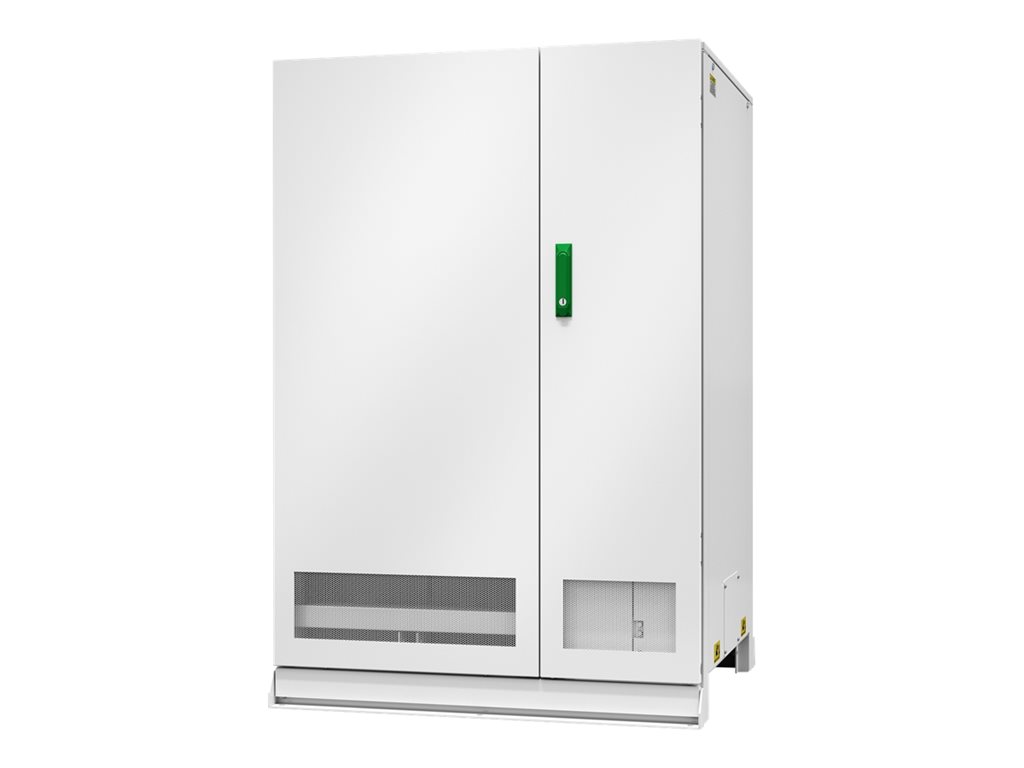

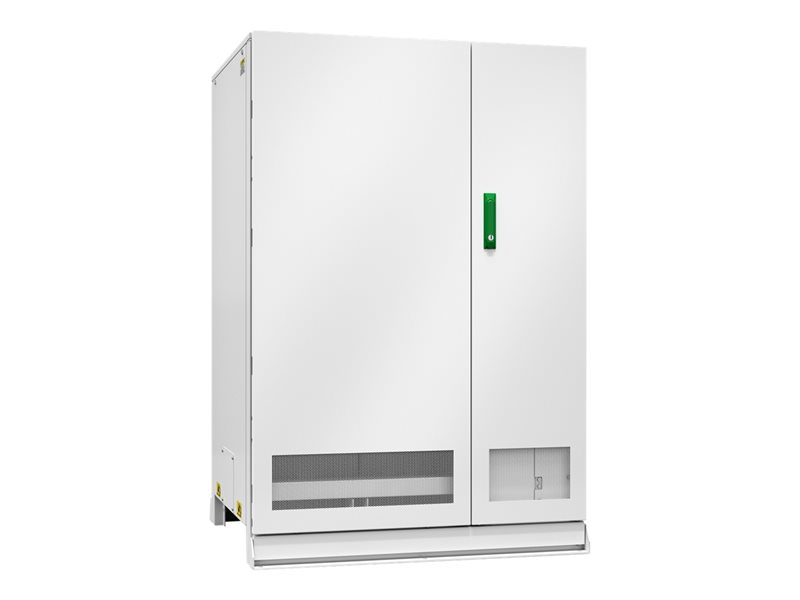

| Product Description | APC Galaxy VS Classic Battery Cabinet - Type 4 - battery enclosure |
| Device Type | Battery enclosure - external |
| Weight | 303.57 lbs |
| Dimensions (WxDxH) | 39.4 in x 33.1 in x 58.5 in |
| Designed For | P/N: GVSUPS100KGS, GVSUPS10KFS, GVSUPS15KFS, GVSUPS20KFS, GVSUPS20KGS, GVSUPS25KFS, GVSUPS30KFS, GVSUPS30KGS, GVSUPS40K, GVSUPS40KFS, GVSUPS40KGS, GVSUPS50KFS, GVSUPS50KGS, GVSUPS60KGS, GVSUPS80KGS |
| General | |
| Device Type | Battery enclosure - external |
| Miscellaneous | |
| Features | Seismic raiting, VRLA battery support |
| Compliant Standards | EU RoHS, Mercury-free, NEMA Type 4, REACH, UL |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight | |
| Width | 39.4 in |
| Depth | 33.1 in |
| Height | 58.5 in |
| Weight | 303.57 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 54 in |
| Shipping Depth | 39.3 in |
| Shipping Height | 66.5 in |
| Shipping Weight | 313.49 lbs |
| Compatibility Information | |
| Designed For | P/N: GVSUPS100KGS, GVSUPS10KFS, GVSUPS15KFS, GVSUPS20KFS, GVSUPS20KGS, GVSUPS25KFS, GVSUPS30KFS, GVSUPS30KGS, GVSUPS40K, GVSUPS40KFS, GVSUPS40KGS, GVSUPS50KFS, GVSUPS50KGS, GVSUPS60KGS, GVSUPS80KGS |
