Motherboard - Socket SP3 - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

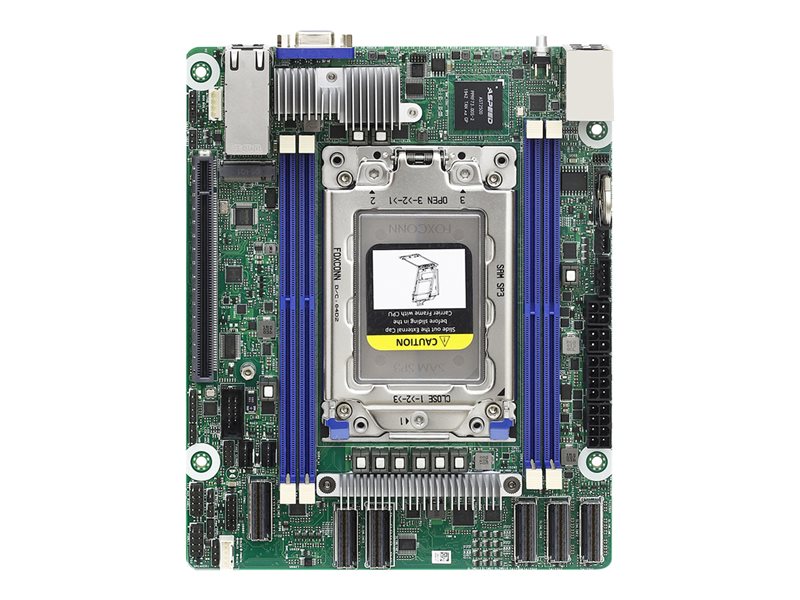

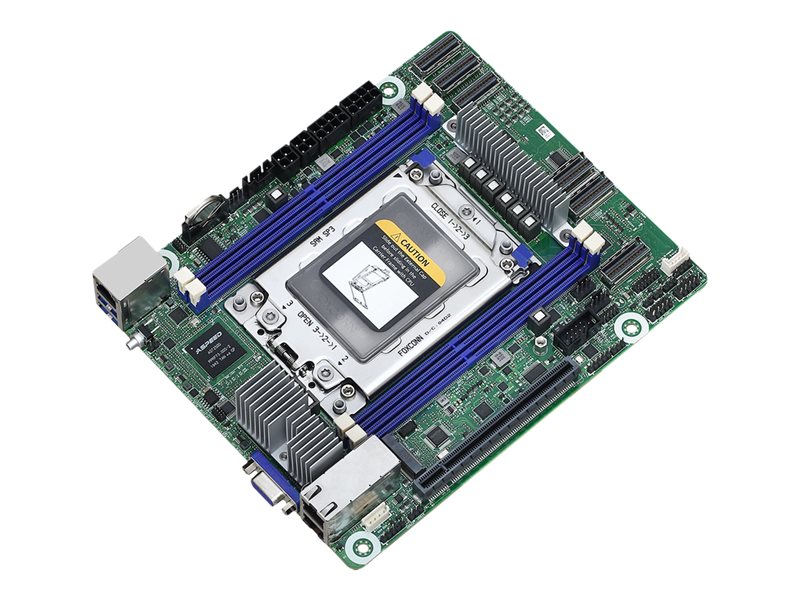

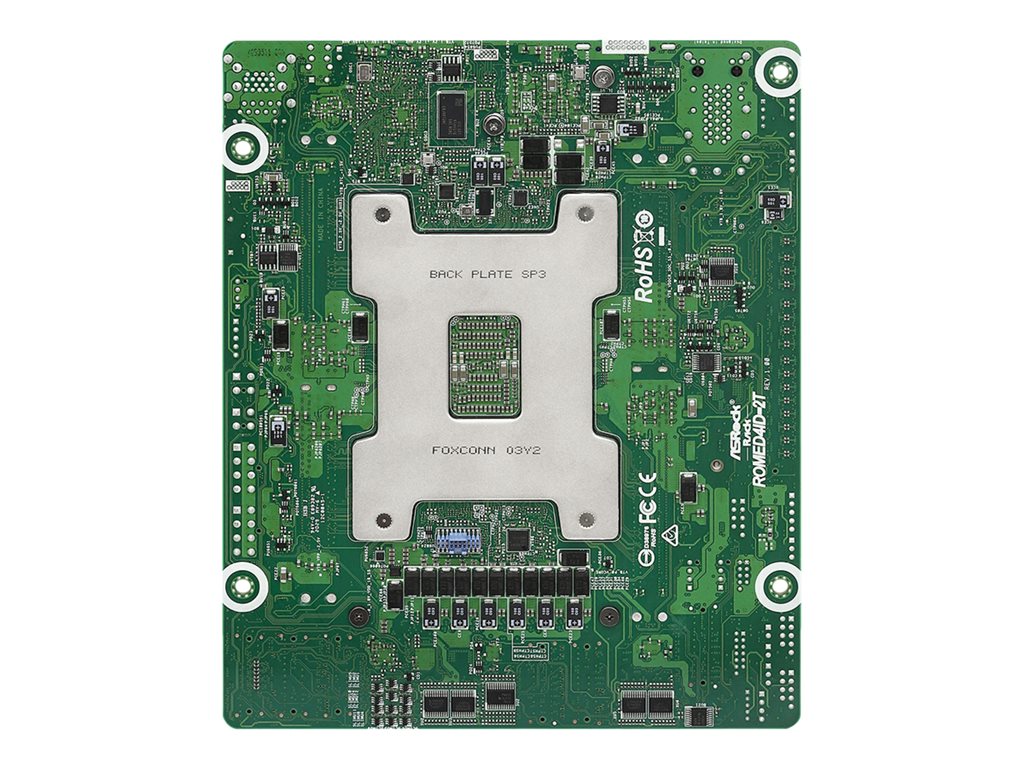

| Product Description | ASRock Rack ROMED4ID-2T - motherboard - Socket SP3 |
| Product Type | Motherboard |
| Processor Socket | 1 x Socket SP3 |
| Compatible Processors | EPYC |
| RAM Supported | 4 DIMM slots registered, Load-Reduced, Non-Volatile |
| Storage Ports | 6 x SlimSAS, 1 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + (2 x USB 2.0 via headers) |
| Graphics | ASPEED AST2500 |
| LAN | 2 x 10 Gigabit Ethernet |
| General | |
| Product Type | Motherboard |
| Processor Socket | Socket SP3 |
| Max Processors Qty | 1 |
| Compatible Processors | EPYC |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 4.0 x16 |
| Storage Interfaces | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x SlimSAS ¦ PCIe 4.0 -connectors: 4 x SlimSAS |

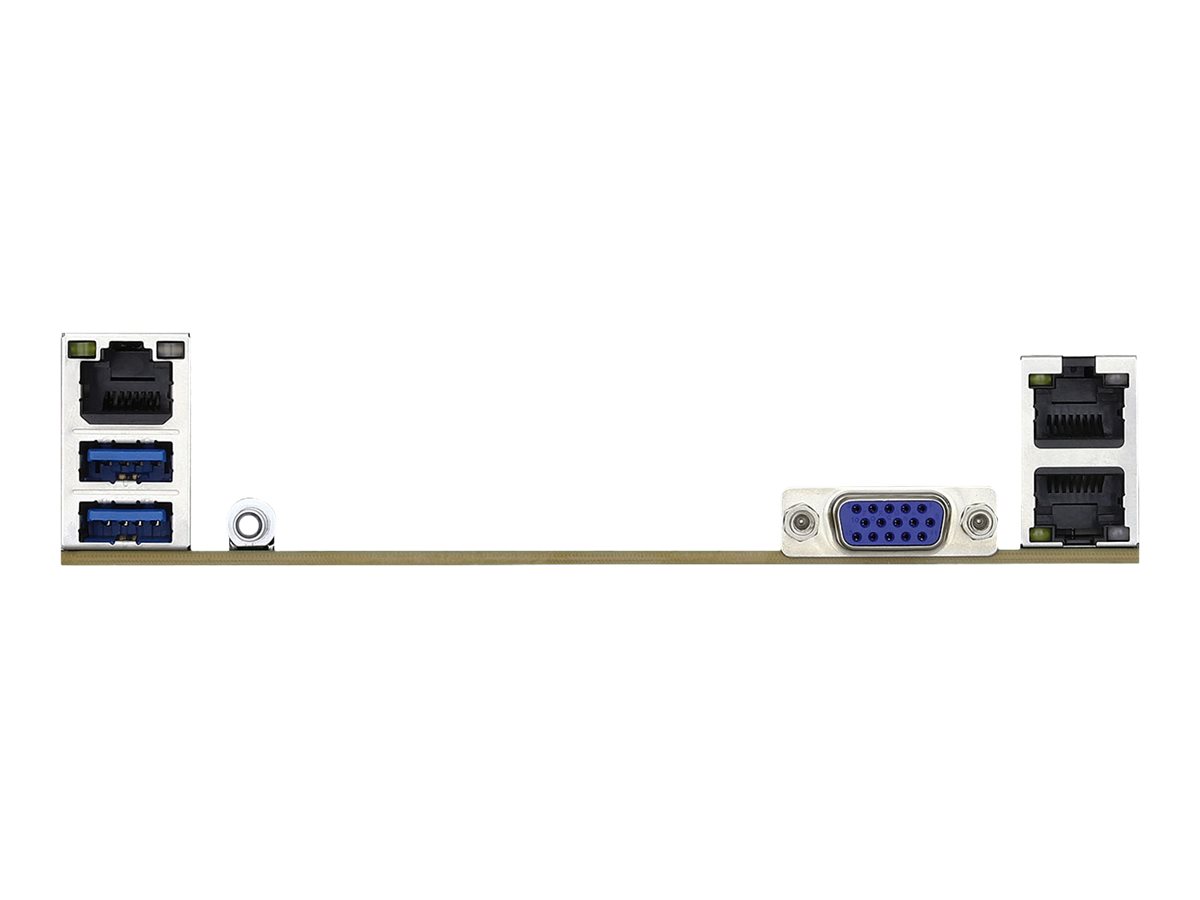

| Interfaces | 2 x LAN (10Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x management ¦ 2 x USB 3.2 Gen 1 |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x speaker - header |
| Power Connectors | 8-pin ATX12V connector, 4-pin ATX12V connector |
| Miscellaneous | |
| Width | 6.7 in |
| Depth | 8.2 in |
| Features | |
| BIOS Features | SPI BIOS flashing |
| Hardware Monitoring | CPU core temperature, CPU fan tachometer, CPU core voltage, system voltage |
| LAN | |
| Network Controller | Intel X550-AT2 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Registered or Buffered | Registered, Load-Reduced, Non-Volatile |
| Features | Quad channel memory architecture |
