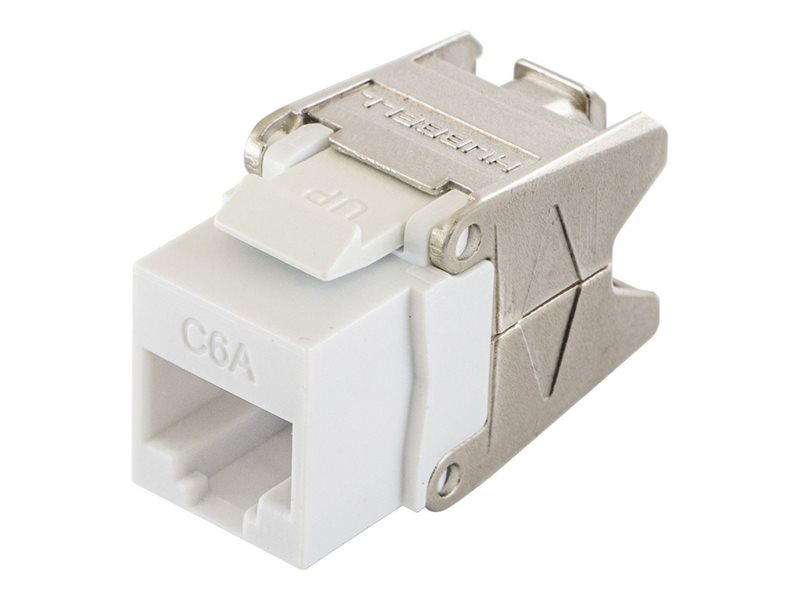

Modular insert - with cobra-lock termination - CAT 6a - RJ-45 - white
| Main Specifications | |
|---|---|
| Product Description | Hubbell modular insert - with cobra-lock termination |
| Product Type | Modular insert - CAT 6a - RJ-45 - with cobra-lock termination |
| Dimensions (WxDxH) | 0.7 in x 1.4 in x 0.9 in |
| Product Material | Thermoplastic, die-cast zinc |
| Color | White |
| Port Qty | 1 port |
| Compliant Standards | EU RoHS, UL 94V-0, ANSI/TIA/EIA-568 Category 6A, UL 1863, IEC 60512-99-002, UL 2043, RoHS |
| General | |
| Product Type | Modular insert - CAT 6a - with cobra-lock termination |
| Product Material | Thermoplastic, die-cast zinc |
| Width | 0.7 in |
| Depth | 1.4 in |
| Height | 0.9 in |
| Enclosure Color | White |
| Miscellaneous | |
| Features | Copper alloy contacts, snap-in installation, 750 cycles insertion rating |
| Compliant Standards | EU RoHS, UL 94V-0, ANSI/TIA/EIA-568 Category 6A, UL 1863, IEC 60512-99-002, UL 2043, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Cabling & Wiring | |
| Port Qty | 1 port |
| Termination Type | Cobra-Lock |
| Features | Up to 10 Gbps, phosphor bronze contacts |
| Connector Provided | 1 x RJ-45 female |
