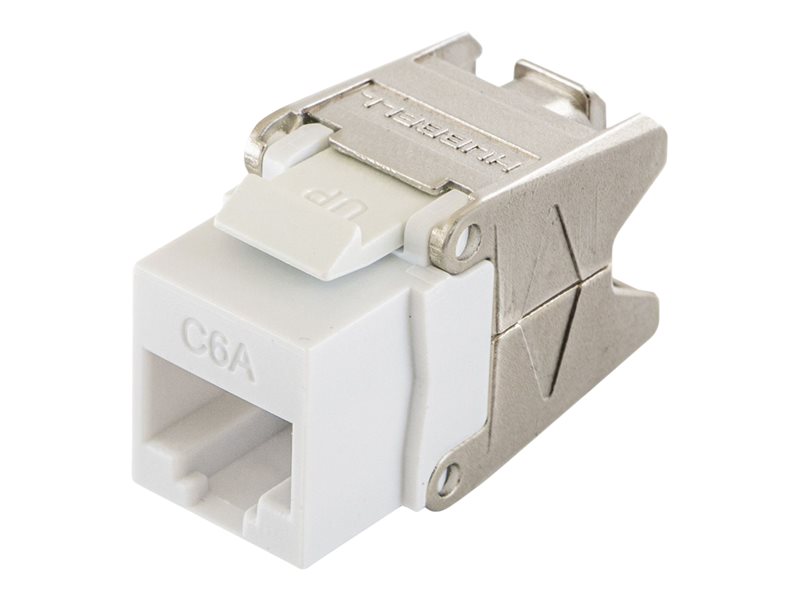

Network connector - RJ-45 (M) - UTP - CAT 6a - IEEE 802.3bt - snap-fit - white (pack of 24)
| Main Specifications | |
|---|---|
| Product Description | Hubbell NEXTSPEED AsCent - network connector - white |
| Type | Network connector - CAT 6a - IEEE 802.3bt |
| Packaged Quantity | 24 (specifications are for single item) |
| Technology | UTP |
| Features | Snap-fit, PoE ready, for solid 22 to 24 AWG cable, Cobra-Lock termination, copper alloy contacts, modular connector |
| Connector | RJ-45 - male |
| Color | White |
| General | |
| Packaged Quantity | 24 (specifications are for single item) |
| Network Cable Type | Network connector - CAT 6a - IEEE 802.3bt |
| Technology | UTP |
| Plated Connector | Gold, bronze |
| Features | Snap-fit, PoE ready, for solid 22 to 24 AWG cable, Cobra-Lock termination, copper alloy contacts, modular connector |
| Width | 0.7 in |
| Depth | 1.4 in |
| Height | 0.9 in |
| Color | White |
| Miscellaneous | |
| Compliant Standards | UL 1863, UL 2043, RoHS, UL 94 V-0, ANSI/TIA/EIA 568, EU RoHS, IEC 60512-99-002 - up to 500 MHz |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Connectivity | |
| Connector | RJ-45 - male |
