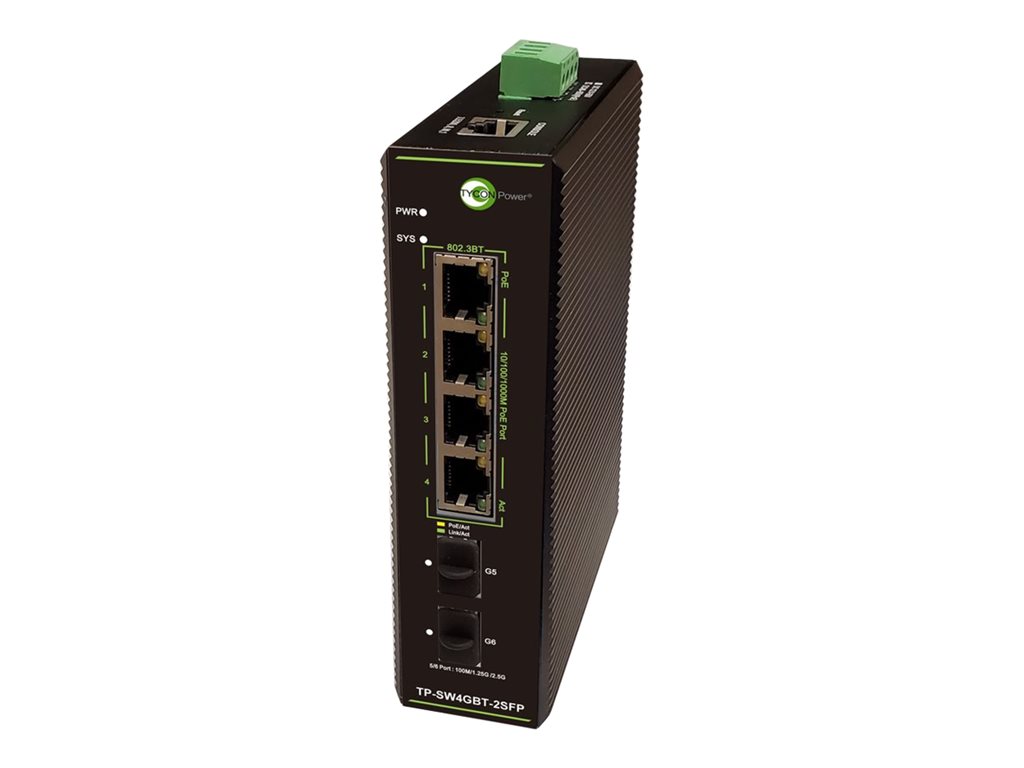

Switch - L2+ - managed - 4 x 10/100/1000 (PoE++) + 2 x 155/1.25G/2.5G SFP - DIN rail mountable - PoE++ - DC power
| Main Specifications | |
|---|---|
| Product Description | Tycon Power TP-SW4GBT-2SFP - switch - 6 ports - managed |
| Device Type | Switch - 6 ports - L2+ - managed |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE++) + 2 x 155/1.25G/2.5G SFP |
| Power Over Ethernet (PoE) | PoE++ |
| Max Transfer Distance | 74.6 miles |
| Performance | Switching capacity: 18 Gbps ¦ Packet forwarding rate: 13.39 Mpps |
| Capacity | VLANs supported: 4096 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9.6KB |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, static IP routing |
| Remote Management Protocol | SSH, CLI, Telnet, SNMP, HTTP |
| Features | Surge protection, SSH support, QoS, VLAN support, port mirroring, DHCP snooping, IGMP snooping, port isolation, ARP inspection, LLDP support, ACL support, Cable Diagnostics Function, Green Ethernet, IP source guard, Jumbo Frames support, STP support, Storm Control, over-current protection, over-voltage protection, short circuit protection, 2KV Surge protection, 6KV Surge protection, 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge), port-based VLAN, tagged VLAN, broadcast storm protection, flow control, Multicast Storm Protection, speed limiting, Unicast Storm protection, MSTP support, RSTP support, ERPS, IGMP support, LACP support, Link Aggregation, LACP, MAC address filtering, MAC address learning, CoS, DSCP support, CPU protection, DoS attack prevention, NTP support, Port Security, SNMP trap, store and forward, SGMII, auto-negotiation |
| Compliant Standards | IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, ITU-T G.8032 |
| Power | DC 46 - 57 V |
| Dimensions (WxDxH) | 4.6 in x 6.1 in x 1.5 in |
| Weight | 21.16 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Switch - 6 ports - L2+ - managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE++) + 2 x 155/1.25G/2.5G SFP |
| Power Over Ethernet (PoE) | PoE++ |
| Max Transfer Distance | 74.6 miles |
| Performance | Switching capacity: 18 Gbps ¦ Packet forwarding rate: 13.39 Mpps |
| Capacity | VLANs supported: 4096 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9.6KB |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, static IP routing |
| Remote Management Protocol | SSH, CLI, Telnet, SNMP, HTTP |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH) |
| Features | Surge protection, SSH support, QoS, VLAN support, port mirroring, DHCP snooping, IGMP snooping, port isolation, ARP inspection, LLDP support, ACL support, Cable Diagnostics Function, Green Ethernet, IP source guard, Jumbo Frames support, STP support, Storm Control, over-current protection, over-voltage protection, short circuit protection, 2KV Surge protection, 6KV Surge protection, 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge), port-based VLAN, tagged VLAN, broadcast storm protection, flow control, Multicast Storm Protection, speed limiting, Unicast Storm protection, MSTP support, RSTP support, ERPS, IGMP support, LACP support, Link Aggregation, LACP, MAC address filtering, MAC address learning, CoS, DSCP support, CPU protection, DoS attack prevention, NTP support, Port Security, SNMP trap, store and forward, SGMII, auto-negotiation |
| Compliant Standards | IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, ITU-T G.8032 |
| RAM | 128 MB |
| Flash Memory | 16 MB |
| Status Indicators | Power, system, PoE, fiber, link/activity |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T RJ-45 PoE++ - 90 W ¦ 2 x 155/1.25G/2.5G SFP ¦ 1 x console RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Compliant Standards | SSL, CISPR Class A, EMI, EN 55032, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, FCC Part 15, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP40, FCC, RoHS |
| Power | |
| Voltage Required | DC 46 - 57 V |
| Power Consumption Operational | 5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 176 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 4.6 in |
| Depth | 6.1 in |
| Height | 1.5 in |
| Weight | 21.16 oz |
