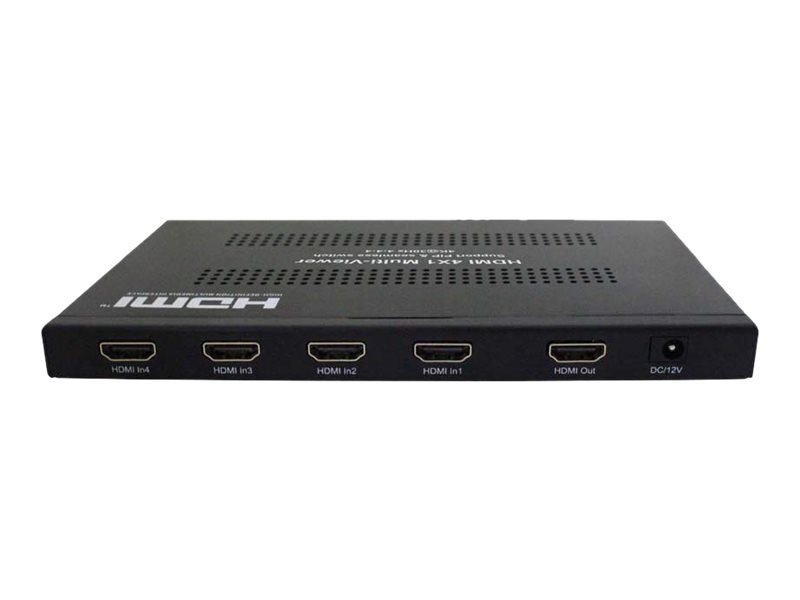

Video/audio splitter - 4 x HDMI - desktop
| Main Specifications | |
|---|---|
| Product Description | NTI SPLITMUX SPLITMUX-4K6GB-4LC - video/audio splitter - 4 ports |
| Device Type | Video/audio splitter - 4 ports |
| Subtype | HDMI |
| Ports | 4 x HDMI |
| Performance | Throughput: 6.75 Gbps |
| Features | Wall mountable, Picture in Picture function, quad view, full screen, 36-bit Deep Color support, Dolby support, DTS support, dual view |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 7.5 in x 4.4 in x 0.7 in |
| Weight | 17.07 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video/audio splitter - 4 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Ports | 4 x HDMI |
| Performance | Throughput: 6.75 Gbps |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Features | Wall mountable, Picture in Picture function, quad view, full screen, 36-bit Deep Color support, Dolby support, DTS support, dual view |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Status Indicators | Port status, power |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input ¦ 1 x HDMI output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Wireless remote control, mounting brackets |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 1 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 8 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.5 in |
| Depth | 4.4 in |
| Height | 0.7 in |
| Weight | 17.07 oz |
