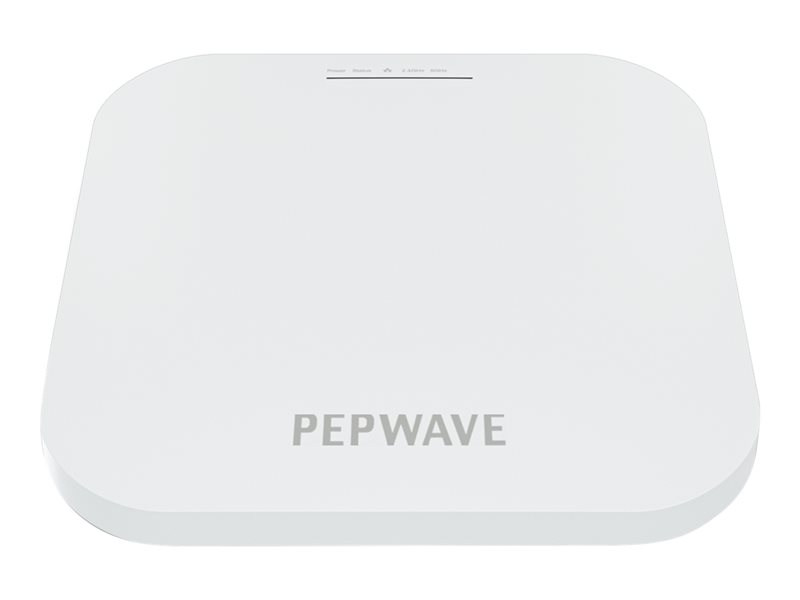

Wireless access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - in-ceiling
| Main Specifications | |
|---|---|
| Product Description | Peplink Pepwave AP One AX - wireless access point - Wi-Fi 6 |
| Device Type | Wireless access point |
| Form Factor | In-ceiling |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 1148 Mbps ¦ Maximum data rate (5 GHz): 2400 Mbps |
| Capacity | Concurrent users per radio: 256 ¦ SSIDs per radio: 16 |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 8.1 in x 8.1 in x 1.3 in |
| Weight | 27.69 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless access point |
| Width | 8.1 in |
| Depth | 8.1 in |
| Height | 1.3 in |
| Weight | 27.69 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5 GBase-T (PoE+) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Form Factor | In-ceiling |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Network / Transport Protocol | PPPoE, DHCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 1148 Mbps ¦ Maximum data rate (5 GHz): 2400 Mbps |
| Capacity | Concurrent users per radio: 256 ¦ SSIDs per radio: 16 |
| Features | IGMP snooping, MAC address filtering, Wireless Distribution System (WDS) support, bandwidth control, Multicast filtering function, router mode, 4x4 MU-MIMO technology, bridge mode, InControl Cloud Management, Layer 2 Client Isolation, VLAN with VLAN Pool |
| Encryption Algorithm | WPA-PSK, WPA2-PSK, WPA2-Enterprise, WPA3-Personal |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.11k, IEEE 802.3at, IEEE 802.11r, IEEE 802.11v |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 24 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Gain Level | 5 dBi |
