Wireless router - WWAN 1GbE Dual Band
| Main Specifications | |
|---|---|
| Product Description | Pepwave UBR LTE - wireless router - WWAN - Wi-Fi - desktop |
| Device Type | Wireless router - wireless cellular modem |
| Enclosure Type | Desktop |
| Cellular Protocol | WCDMA, HSPA+ |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B29, LTE B8, LTE B66, LTE B30, LTE B41, LTE B14, LTE B71, DC-HSPA+ B1, DC-HSPA+ B2, DC-HSPA+ B4, DC-HSPA+ B5, DC-HSPA+ B8 |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Routing throughput: 120 Mbps ¦ PepVPN/SpeedFusion throughput: 40 Mbps ¦ PepVPN/SpeedFusion throughput (256-bit AES): 20 Mbps |
| Capacity | Recommended users: 1-60 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Power | AC 120/230 V / DC 12 - 28 V |
| Dimensions (WxDxH) | 5.1 in x 4.3 in x 1.6 in |
| Weight | 18.16 oz |
| Localization | Americas |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless router |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Routing throughput: 120 Mbps ¦ PepVPN/SpeedFusion throughput: 40 Mbps ¦ PepVPN/SpeedFusion throughput (256-bit AES): 20 Mbps |
| Capacity | Recommended users: 1-60 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IC, FCC, RoHS, E Mark, EN 61000 |
| Expansion / Connectivity | |

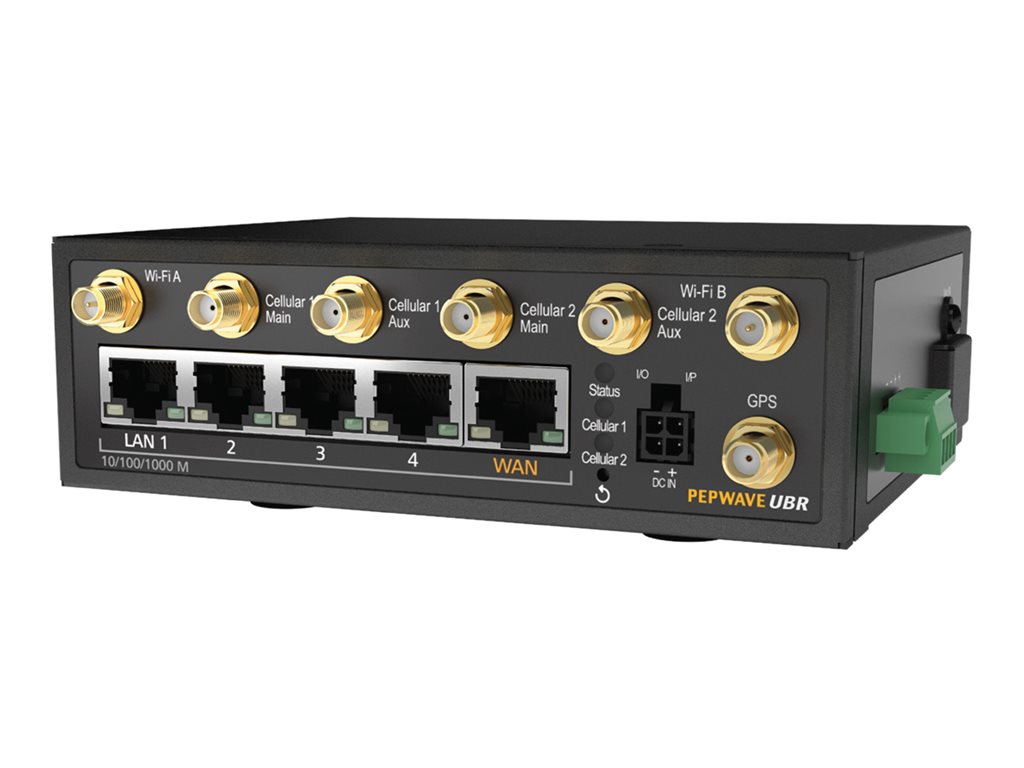

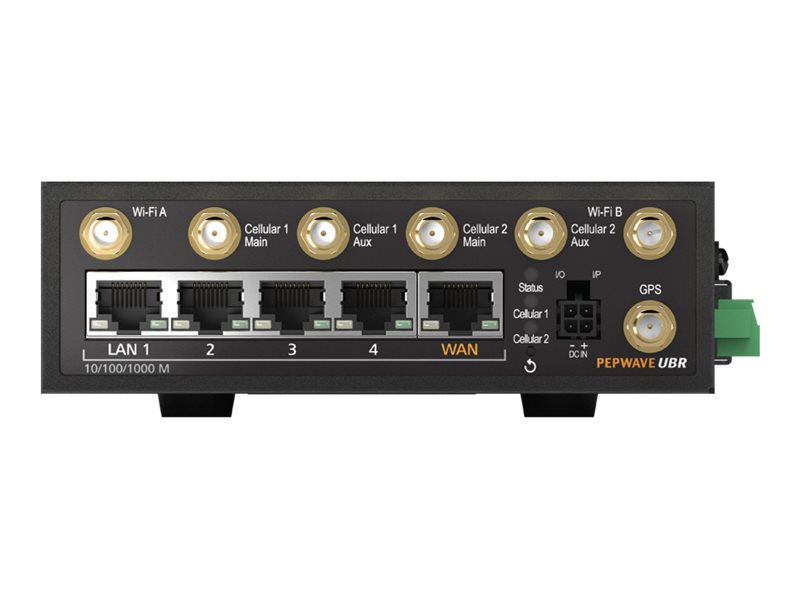

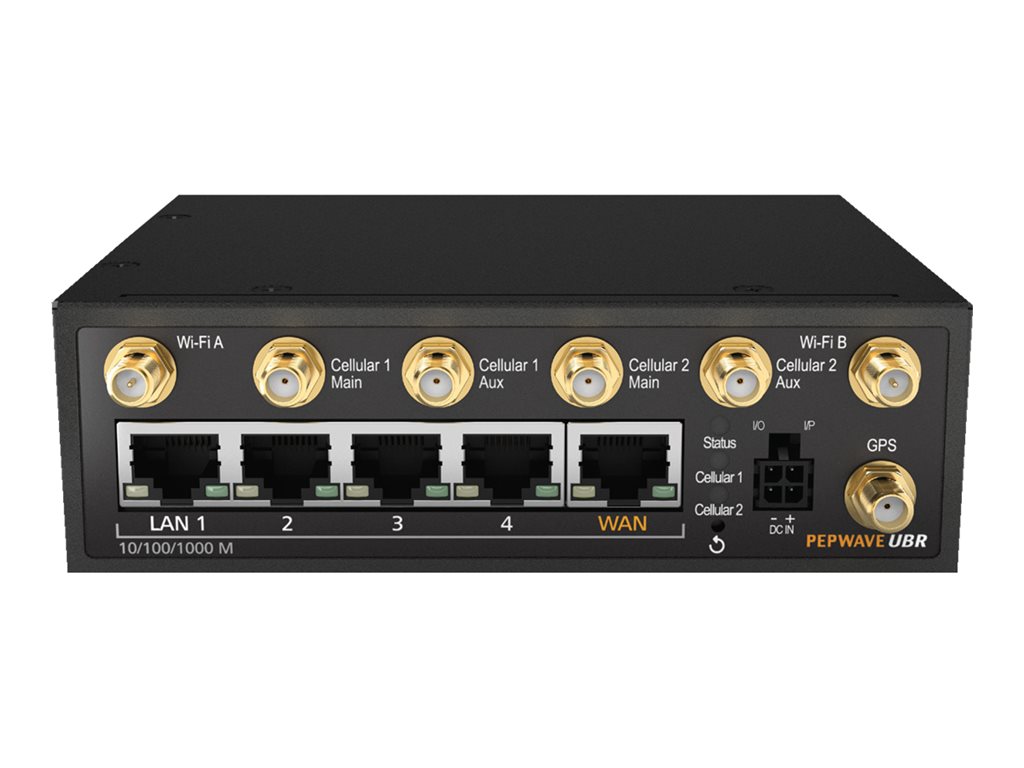

| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Antenna: 4 x SMA ¦ Antenna: 2 x SMA - Wi-Fi ¦ Antenna: 1 x SMA - GPS |

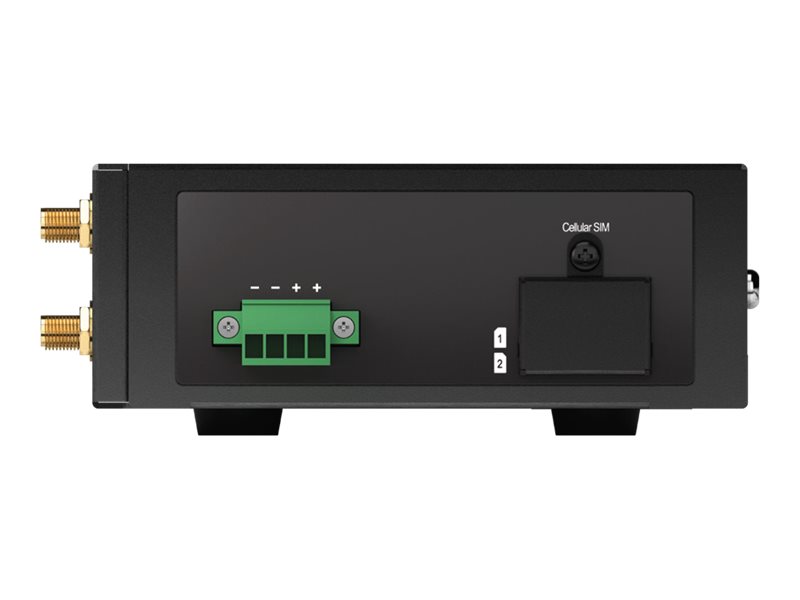

| Expansion Slots | 2 SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Localization | Americas |
| Power | |
| Voltage Required | AC 120/230 V / DC 12 - 28 V |
| Power Consumption Operational | 24 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Communications | |
| Type | 2 x wireless cellular modem |
| Cellular Protocol | WCDMA, HSPA+ |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B29, LTE B8, LTE B66, LTE B30, LTE B41, LTE B14, LTE B71, DC-HSPA+ B1, DC-HSPA+ B2, DC-HSPA+ B4, DC-HSPA+ B5, DC-HSPA+ B8 |
| Max Transfer Rate | 150 Mbps |
| Dimensions & Weight | |
| Width | 5.1 in |
| Depth | 4.3 in |
| Height | 1.6 in |
| Weight | 18.16 oz |
