Amplifier
| Main Specifications | |
|---|---|

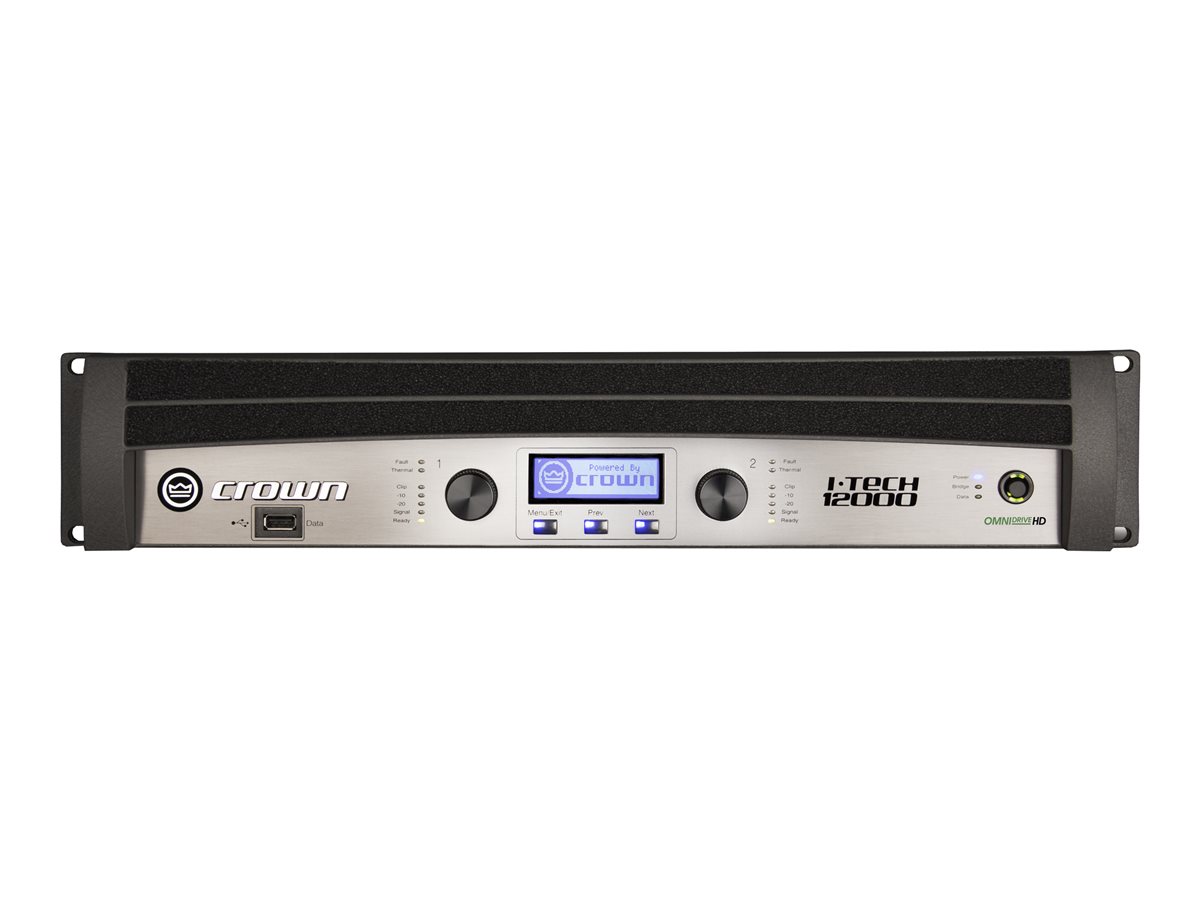

| Product Description | Crown I-Tech HD Series 12000HD - amplifier |
| Product Type | Amplifier |
| Audio Specifications | Amplifier - 20 - 20000 Hz - 112 dB 0.1% |
| Display | LCD display |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 19 in x 16.2 in x 3.5 in |
| Weight | 28 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Amplifier |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Display | |
| Display Type | LCD display - color |
| Functions | Touchscreen |
| Connections | |
| Connectors | USB (4 pin USB Type A) - front ¦ 2 x balanced audio input (XLR) - rear ¦ 2 x balanced audio output (XLR) - rear ¦ AES/EBU input (XLR) - rear ¦ AES/EBU output (XLR) - rear ¦ CobraNet (RJ-45 etherCON) - rear ¦ 2 x speakers output (Speakon) - rear ¦ 2 x speakers output (banana/spade x 2) - rear |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 16.2 in |
| Height | 3.5 in |
| Weight | 28 lbs |
| Audio System | |
| Functions | Amplifier |
| Audio D/A Converter | 24bit / 192kHz |
| Digital Sound Processor (DSP) | Yes |
| Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 112 dB - THD - 0.1% |
| Amplifier Output Details | 3750 Watt - 2 Ohm - 2 channels ¦ 5400 Watt - 2.7 Ohm - 2 channels ¦ 4500 Watt - 4 Ohm - 2 channels ¦ 2100 Watt - 8 Ohm - 2 channels ¦ 7500 Watt - 4 Ohm - 1 channels (bridged) ¦ 9000 Watt - 8 Ohm - 1 channels (bridged) |
| Features | Cooling fan, bridged output capability, rack mountable, CobraNet compatible, HiQnet compatible |
| Dimensions & Weight (Shipping) | |
| Weight (Shipping) | 35.93 lbs |
