Wireless access point - Wi-Fi 5 - 2.4 GHz, 5 GHz
| Main Specifications | |
|---|---|

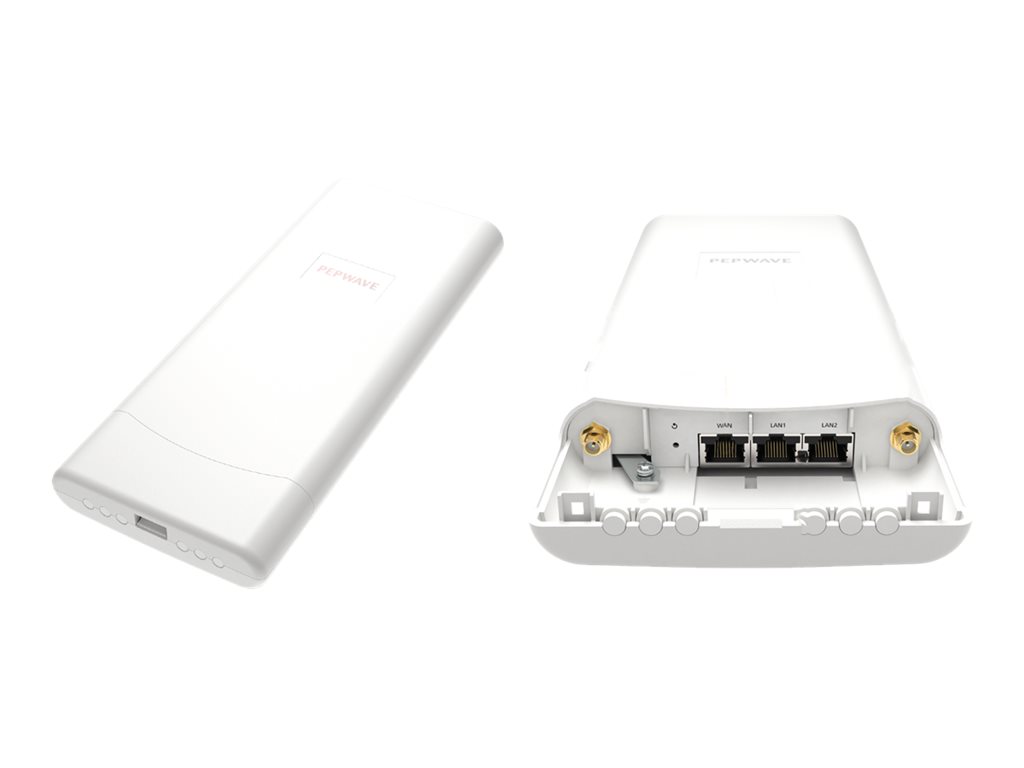

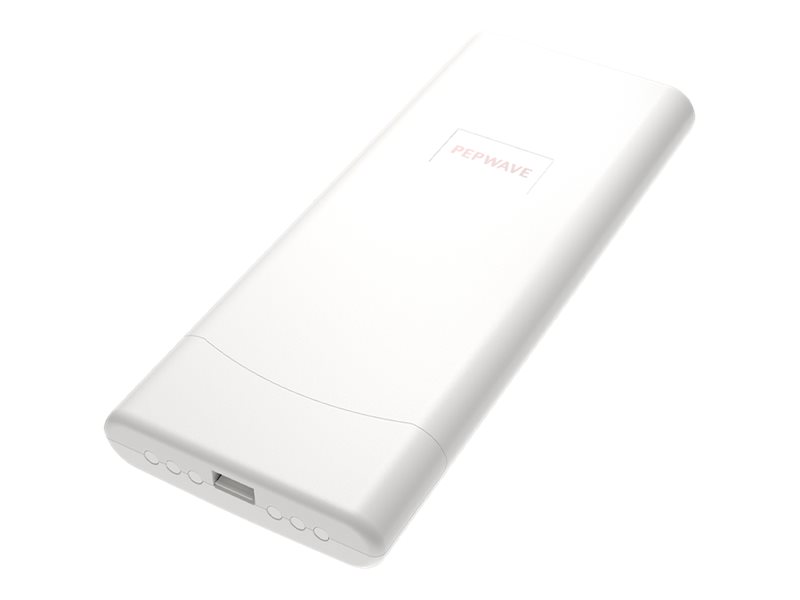

| Product Description | Pepwave AP One Flex - wireless access point - Wi-Fi 5 |
| Device Type | Wireless access point |
| Form Factor | External - outdoor |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | SSIDs per radio: 16 ¦ Concurrent users: 60 |
| Included Accessories | Cable tie |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 4.9 in x 1.9 in x 11.8 in |
| Weight | 18.34 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Width | 4.9 in |
| Depth | 1.9 in |
| Height | 11.8 in |
| Weight | 18.34 oz |
| Expansion / Connectivity | |

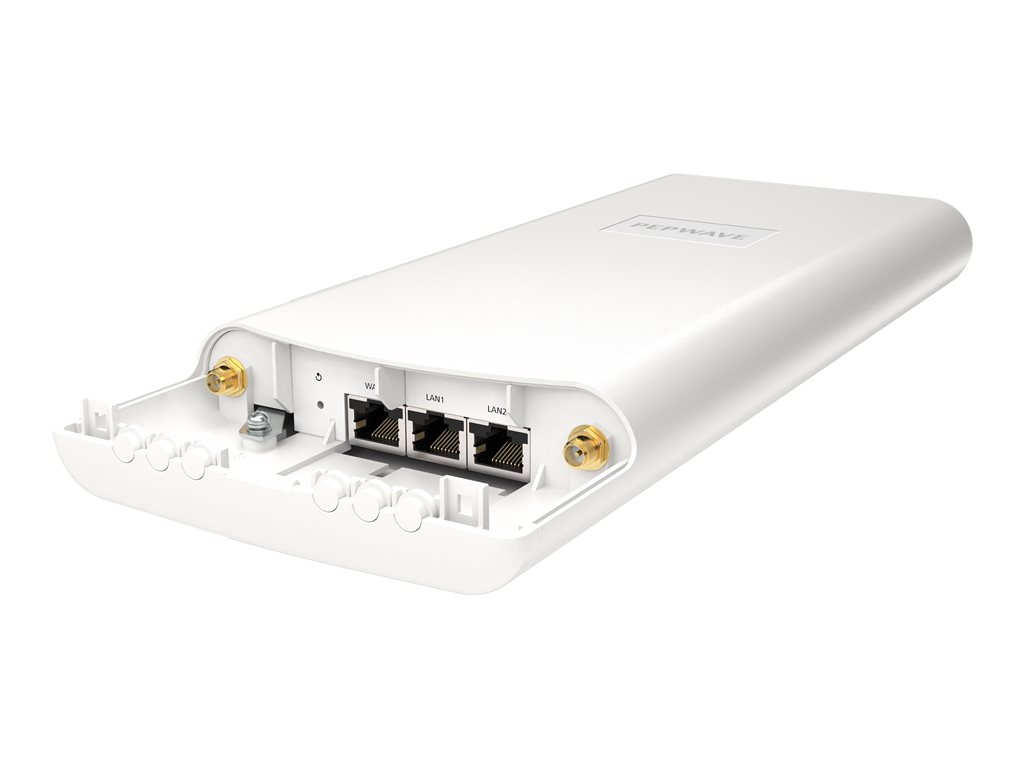

| Interfaces | 1 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 (WAN) ¦ 2 x antenna - RP-SMA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Cable tie |
| Compliant Standards | FCC, RoHS, IP55 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1166 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Network / Transport Protocol | PPPoE, DHCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | SSIDs per radio: 16 ¦ Concurrent users: 60 |
| Features | DHCP support, NAT support, power over Ethernet (PoE), VPN support, VLAN support, IGMP snooping, MAC address filtering, Wireless Distribution System (WDS) support, wall mountable, Spanning Tree Protocol (STP) support, Auto Channel Select (ACS), Quality of Service (QoS), Multiple SSID support, static IP mode, bandwidth control, Multicast filtering function, Pre-Shared Key (PSK), Hotspot Access Point Capability, router mode, VLAN management, 2x2 MU-MIMO technology, client isolation, waterproof, bridge mode, adjustable transmission power, outdoor enclosure, IGMP support |
| Encryption Algorithm | WPA2, WPA-PSK, 256-bit AES, WPA2-PSK |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 13 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Directional |
