Remote control device - 1GbE
| Main Specifications | |
|---|---|
| Product Description | ATEN Altusen CN9950 - remote control device |
| Device Type | Remote control device |
| Form Factor | External |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Included Accessories | Removable terminal block, foot pad set, mounting kit |
| Dimensions (WxDxH) | 7.9 in x 5.9 in x 1.1 in |
| Weight | 29.98 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Remote control device |
| Width | 7.9 in |
| Depth | 5.9 in |
| Height | 1.1 in |
| Weight | 29.98 oz |
| Expansion / Connectivity | |

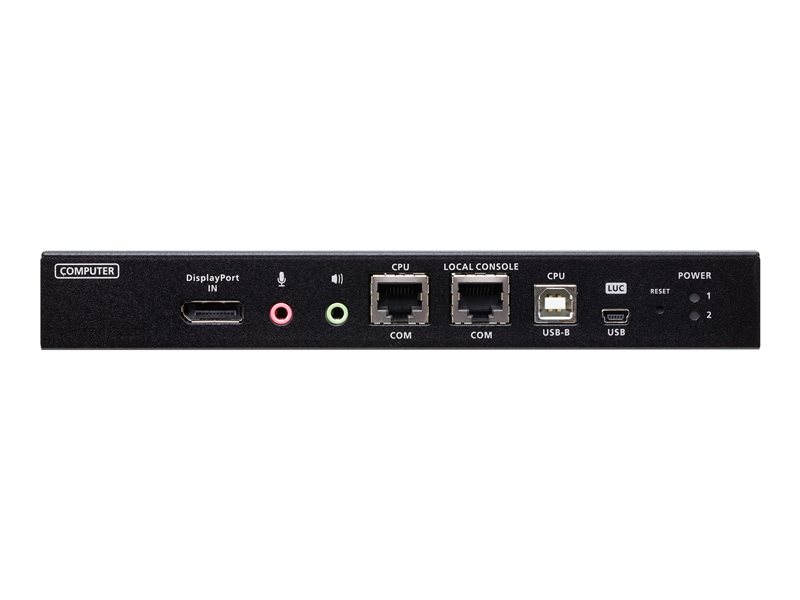

| Interfaces | 1 x DisplayPort input ¦ 1 x DisplayPort output ¦ 2 x RS-232 - RJ-45 ¦ 1 x USB - Type B ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x audio line-out - mini-jack ¦ 2 x microphone - mini-jack ¦ 2 x USB - Type A ¦ 1 x console - mini-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Removable terminal block, foot pad set, mounting kit |
| Cables Included | 1 x DisplayPort cable ¦ 2 x USB cable |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | Telnet, HTTP, SSH |
| Status Indicators | Power |
| Features | MAC address filtering, IPv6 support, IP address filtering, firmware upgradable, Virtual Media support, event log, reset button |
| Encryption Algorithm | DES, Triple DES, RC4, 256-bit AES, 2048-bit RSA, TLS 1.2 |
| Authentication Method | RADIUS, LDAP, Active Directory |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 9.76 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
