Remote control device - 1GbE
| Main Specifications | |
|---|---|

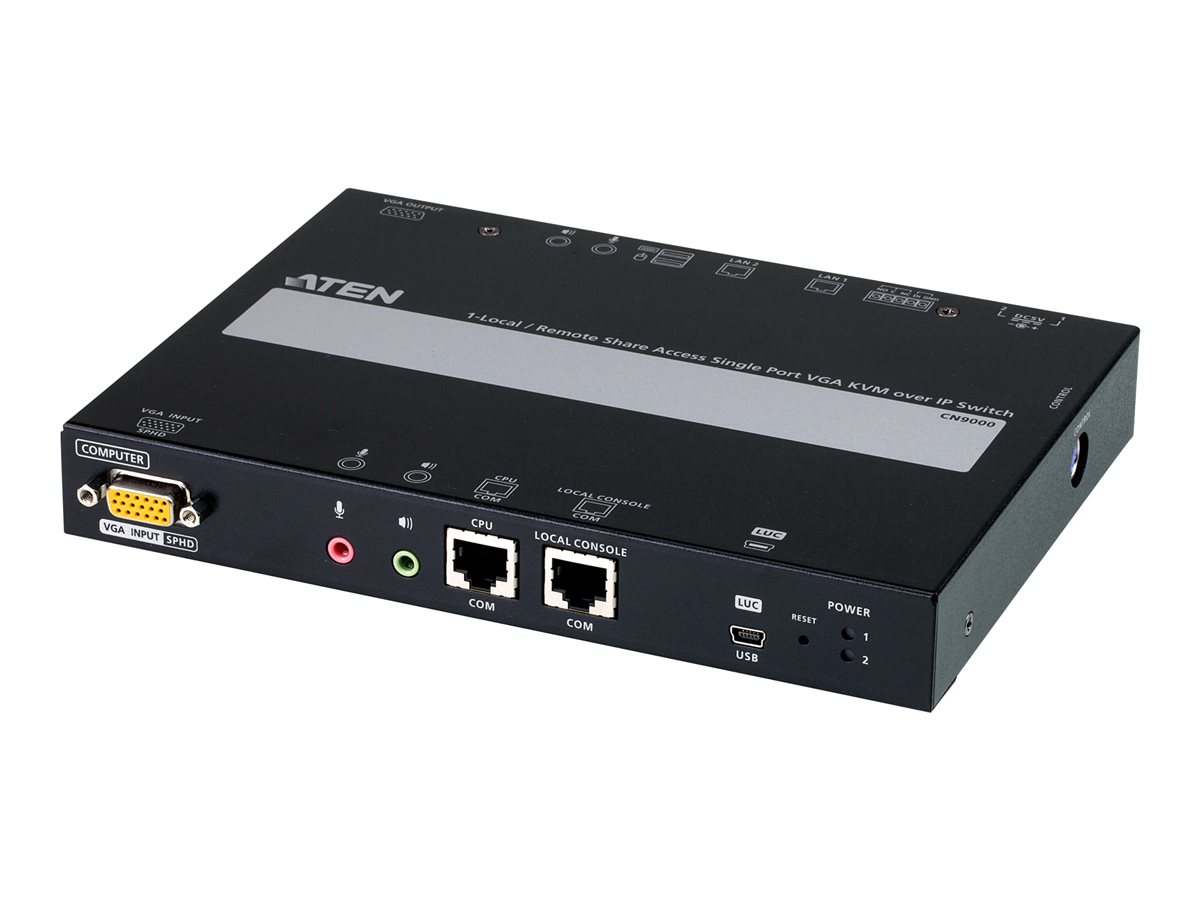

| Product Description | ATEN CN9000 - remote control device |
| Device Type | Remote control device |
| Form Factor | External |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Included Accessories | Foot pad set, terminal block connector, mounting kit |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 7.9 in x 6.1 in x 1.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Remote control device |
| Width | 7.9 in |
| Depth | 6.1 in |
| Height | 1.1 in |
| Expansion / Connectivity | |

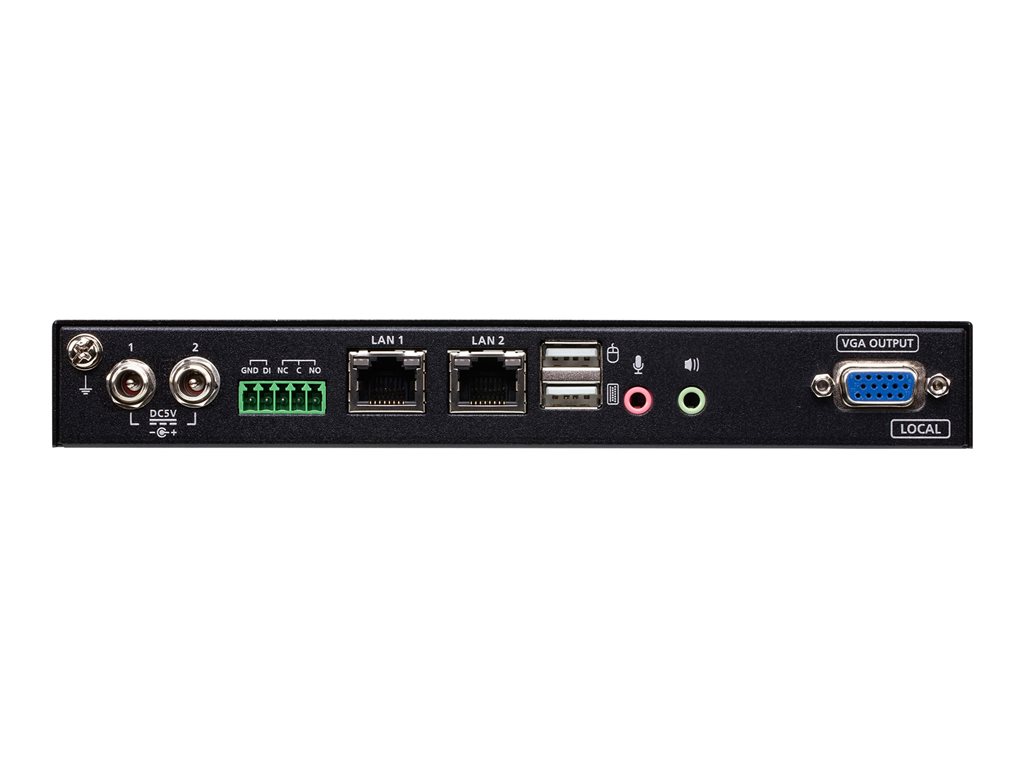

| Interfaces | 2 x USB - Type A ¦ 1 x VGA output - HD-15 ¦ 2 x microphone - mini-jack ¦ 2 x audio line-out - mini-jack ¦ 1 x keyboard / video / mouse (KVM) - SPHD-18 ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x mini-USB ¦ 2 x serial - RJ-45 ¦ 1 x management - 6 pin mini-DIN (PS/2 style) ¦ 1 x digital input/output - terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Foot pad set, terminal block connector, mounting kit |
| Cables Included | 1 x keyboard / mouse / video / USB cable ¦ 1 x mini-USB to USB cable |
| Compliant Standards | FCC Part 15, ICES-003 Class A, RoHS, KCC, NMB-3 Class A |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | DDNS, IPv6 |
| Remote Management Protocol | SNMP, Telnet, SSH |
| Status Indicators | Power 1, power 2 |
| Features | Syslog support, MAC address filtering, IP address filtering, firmware upgradable, event log, reset button, SNMP trap, e-mail notification, metal housing, password protection |
| Encryption Algorithm | DES, Triple DES, RC4, 256-bit AES, 2048-bit RSA, TLS 1.2 |
| Authentication Method | RADIUS, LDAP, Active Directory |
| Compliant Standards | USB 1.1, USB 2.0 |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Consumption Operational | 7.46 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
