Wi-Fi system - (router) - up to 2,100 sq.ft - mesh 1GbE - Wi-Fi 5 - Dual Band
| Main Specifications | |
|---|---|
| Product Description | QNAP QMiro-201W - Wi-Fi system - Wi-Fi 5, Bluetooth - desktop |
| Device Type | Wi-Fi system - mesh |
| Enclosure Type | Desktop |
| Wi-Fi System Components | Router |
| Wi-Fi System Coverage | Up to 2,100 sq.ft |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 400 Mbps ¦ Maximum data rate (5 GHz): 1734 Mbps |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, PPPoE, FTP, DHCP |
| Features | NAT support, ALG support, parental control, Access Point operational mode, event log, DHCP server, reset button, IPv4 support, MU-MIMO technology, DNS filtering, Tri-Band mesh support with dedicated backhaul channel, OpenVPN client, SD-WAN support |
| Dimensions (WxDxH) | 2.7 in x 3.9 in x 6.9 in |
| Weight | 0.97 lbs |
| General | |
| Device Type | Wi-Fi system - mesh |
| Wi-Fi System Components | Router |
| Wi-Fi System Coverage | Up to 2,100 sq.ft |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 400 Mbps ¦ Maximum data rate (5 GHz): 1734 Mbps |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, PPPoE, FTP, DHCP |
| Wi-Fi Rating | AC2200 |
| Mesh Networking | Yes |
| Features | NAT support, ALG support, parental control, Access Point operational mode, event log, DHCP server, reset button, IPv4 support, MU-MIMO technology, DNS filtering, Tri-Band mesh support with dedicated backhaul channel, OpenVPN client, SD-WAN support |
| Compliant Standards | VCCI, BSMI, JATE, IC, FCC, SRRC, NCC, RCM |
| Processor | 1 x Qualcomm IPQ4019 716.8 MHz |
| RAM | 512 MB |
| Flash Memory | 4 GB |
| Expansion / Connectivity | |

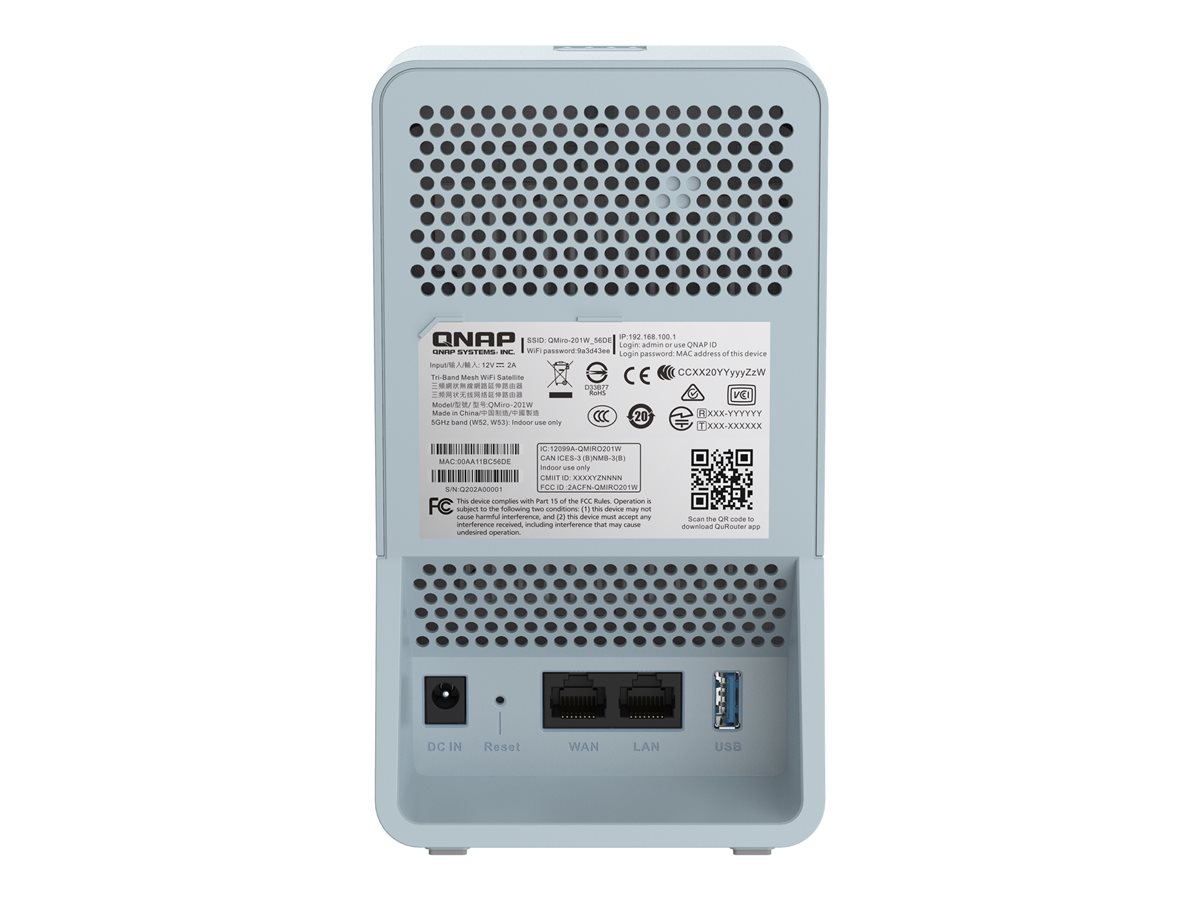

| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.2 Gen 1: 1 x |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 24 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.7 in |
| Depth | 3.9 in |
| Height | 6.9 in |
| Weight | 0.97 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.45 lbs |
| Antenna | |
| Antenna | Internal |
| Gain Level | 4 dBi |
