Video/audio/infrared/serial extender - up to 230 ft
| Main Specifications | |
|---|---|

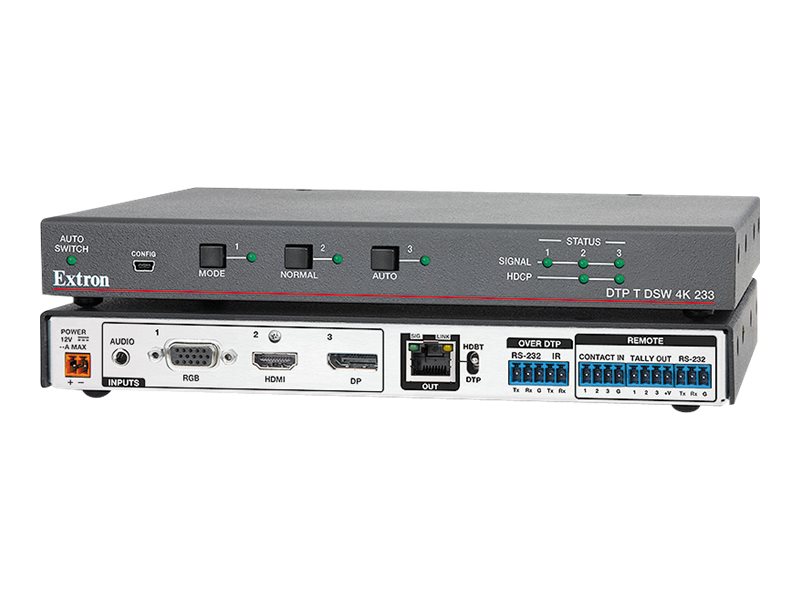

| Product Description | Extron DTP T DSW 4K 233 - video/audio/infrared/serial extender |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Max Transfer Distance | 230 ft |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 8.7 in x 6 in x 1 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A ¦ 1 x audio (input) - mini jack ¦ 1 x DisplayPort (input) ¦ 1 x RS-232 - terminal block ¦ 1 x IrDA - terminal block ¦ 1 x remote control - terminal block ¦ 1 x HDBaseT (output) - RJ-45 ¦ 1 x VGA (input) - HD-15 ¦ 1 x USB - mini-USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Rack Mounting Kit | Optional |
| Compliant Standards | FCC Class A certified, UL, C-Tick, cUL, ICES, VCCI |
| Networking | |
| Connectivity Technology | Wired |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Video Bandwidth | 300 MHz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Power, link/activity |
| Features | HDCP compliant |
| Compliant Standards | HDCP 1.4 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 6 in |
| Height | 1 in |
