Network surveillance camera - PTZ - color - 8.5 MP - 1920 x 1080 - 1080/60p - HDMI - HDBaseT - H.264 - PoE Plus - with Vaddio OneLINK HDMI
| Main Specifications | |
|---|---|

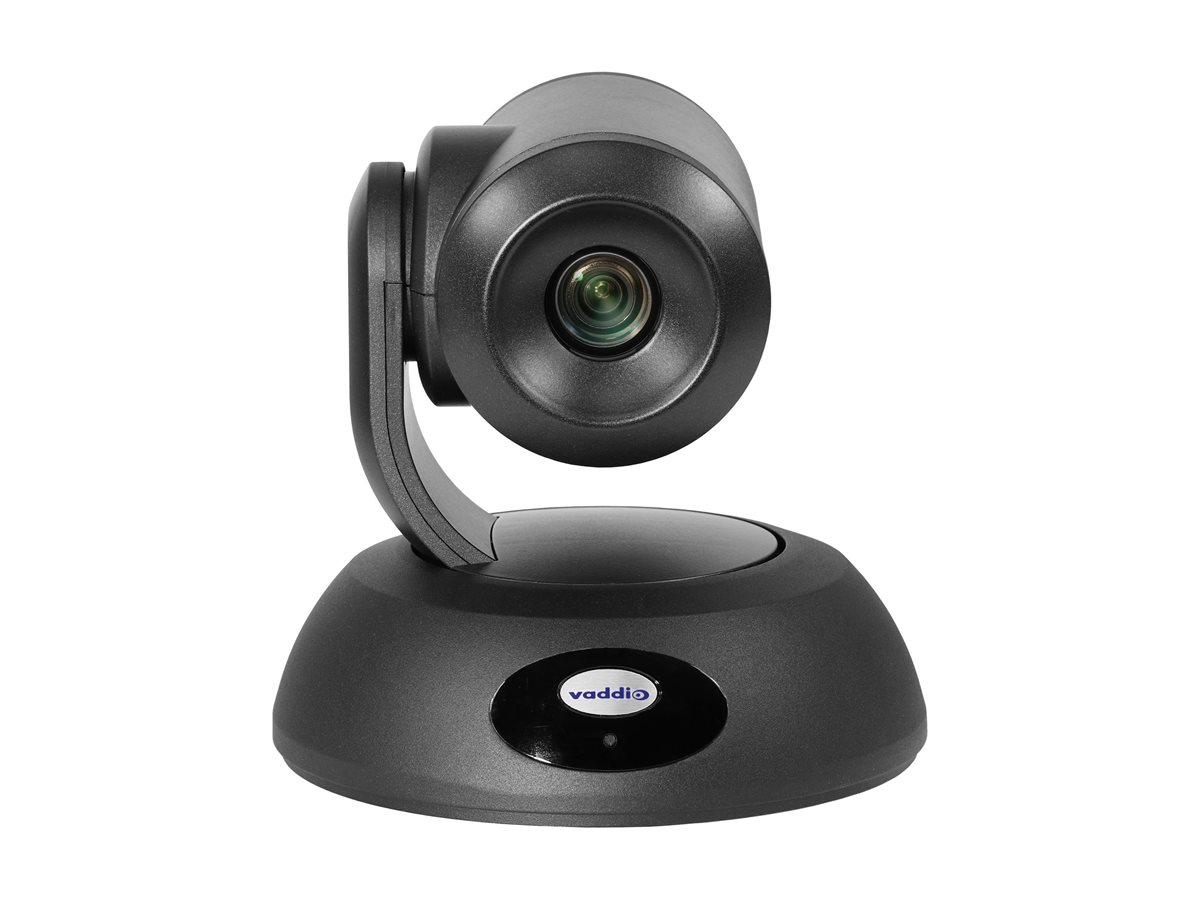

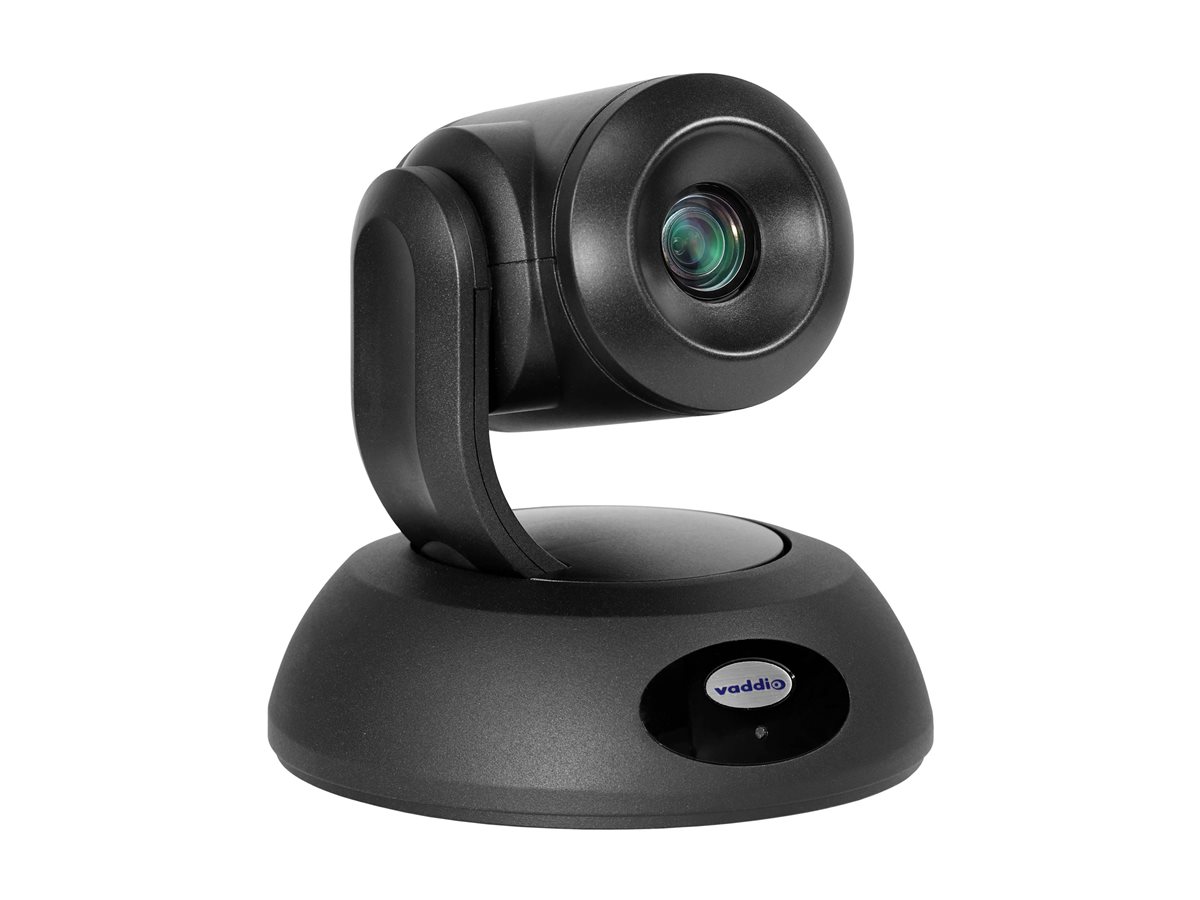

| Product Description | Vaddio RoboSHOT 30E HDBT HDMI Conference Camera System - Includes PTZ Camera and Receiver - Black - network surveillance camera - with Vaddio OneLINK HDMI |
| Device Type | Network surveillance camera - pan / tilt / zoom |

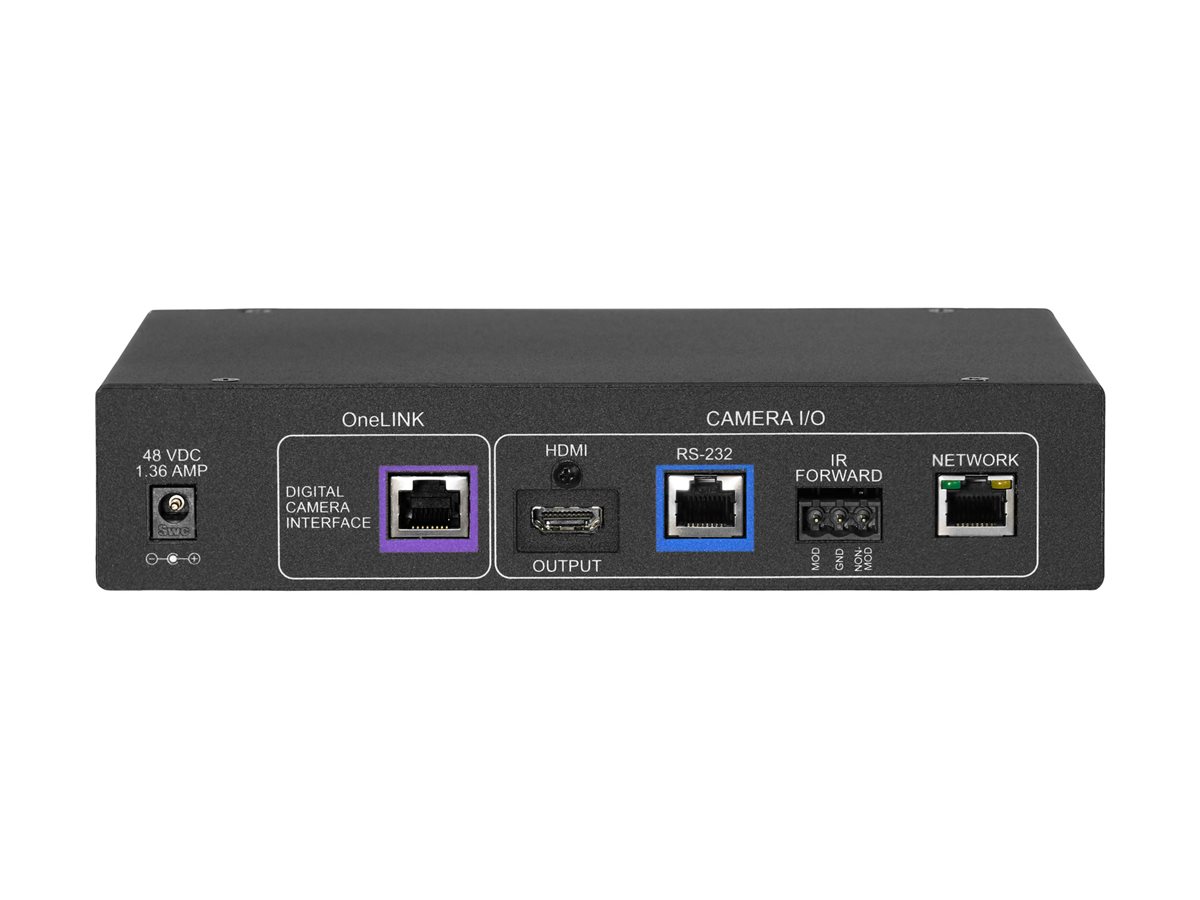

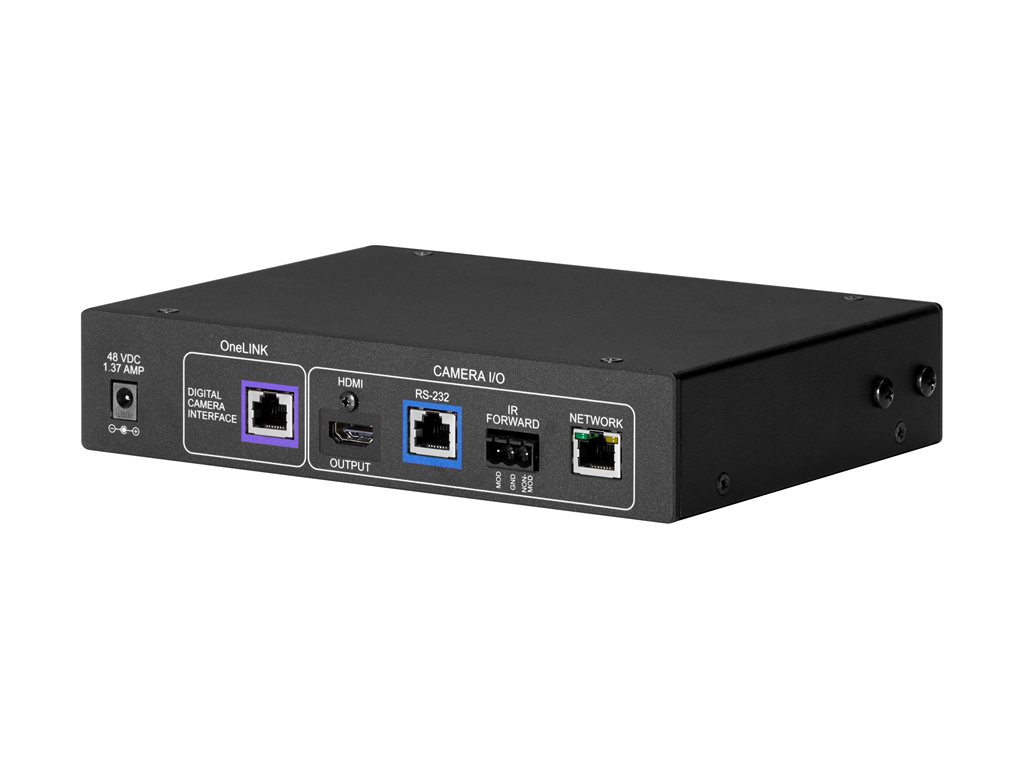

| Bundled with | Vaddio OneLINK HDMI |
| Dimensions (WxDxH) | 7.1 in x 6.8 in x 6.9 in |
| Weight | 4.85 lbs |
| Color | Black |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 30 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080/60p |
| Optical Sensor Type | Exmor R CMOS - 1/2.5" - 8.5 MP |
| Minimum Illumination | 1.6 lux - color |
| Focal Length | 4.4 mm - 88.4 mm |
| Focus Adjustment | Automatic, manual |
| Lens Iris | F/2.0-3.8 |
| Panning Range (degree) | -150 to +150 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | HDMI, HDBaseT |
| Control Interface | RS-232 |
| Voltage | PoE Plus |
| Manufacturer Warranty | 2-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 7.1 in |
| Depth | 6.8 in |
| Height | 6.9 in |
| Weight | 4.85 lbs |
| Localization | United States |
| Bundled with | Vaddio OneLINK HDMI |
| Expansion / Connectivity | |

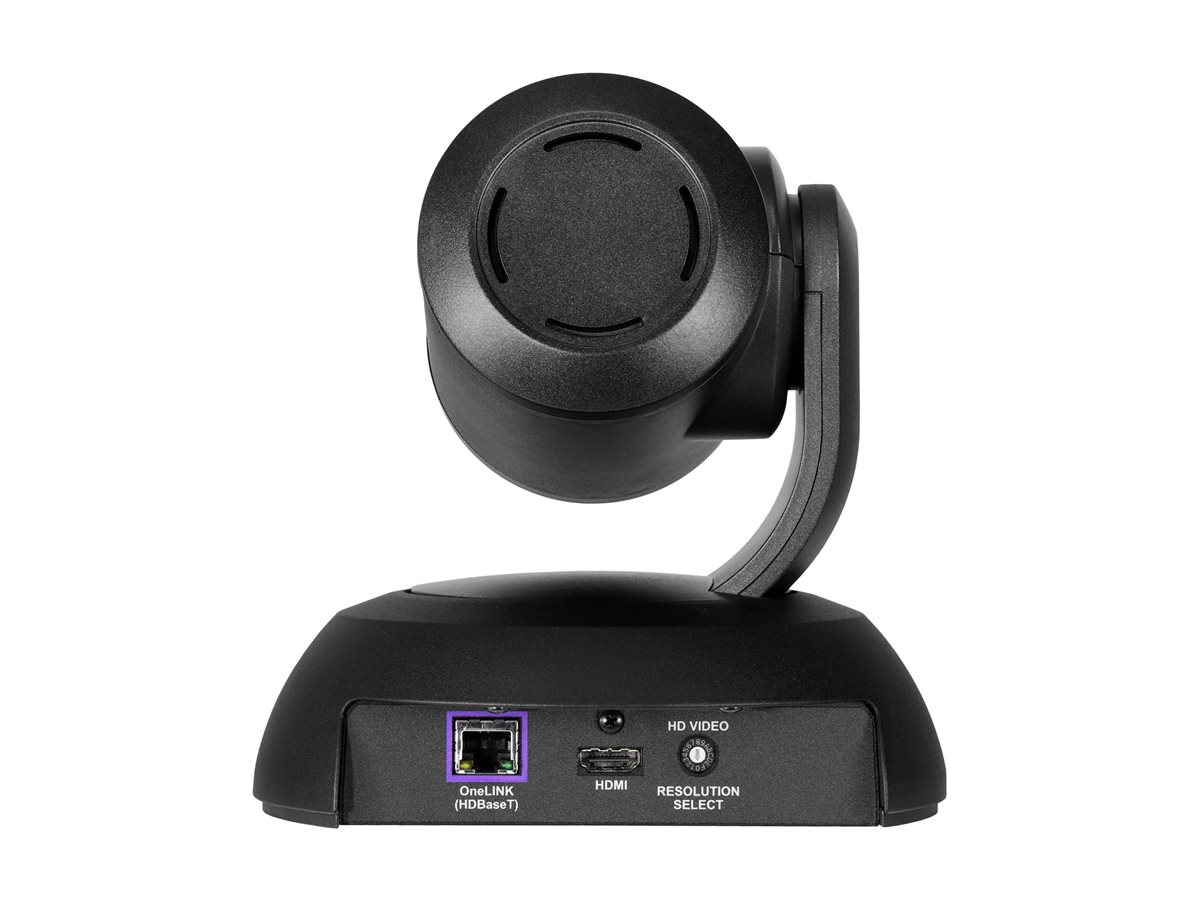

| Ports | HDMI ¦ HDBase-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

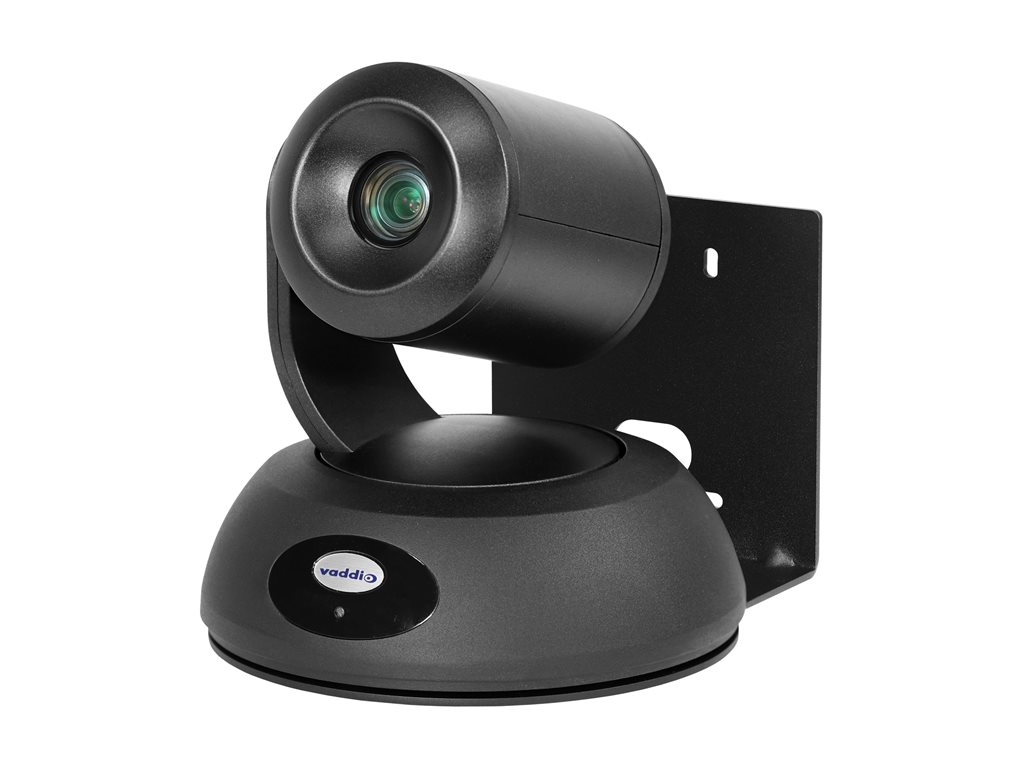

| Included Accessories | Wall mount kit, Vaddio IR Remote Commander |
| Color | Black |
| Power | |
| Power Requirements | PoE Plus |
| Power Device | Power injector - external |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264 |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080/60p |
| Exposure Range | 1/1 sec - 1/10000 sec |
| Minimum Illumination | 1.6 lux - color |
| Frame Rate (max) | 60 frames per second |
| Lens Construction | |
| Optical Zoom | 30 x |
| Focal Length | 4.4 mm - 88.4 mm |
| Lens Iris | F/2.0-3.8 |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 3.1 - 70.2 |
| Image Sensor | |
| Type | 8.5 MP Exmor R CMOS 1/2.5" |
| Interfaces | |
| Video | HDMI |
| Network Interface | HDBaseT |
| Network Protocols | RTSP, RTMP |
| Control Interface | RS-232 |
| Panning | |
| Range (degree) | -150 to +150 |
| Speed (degree/sec) | Up to 0.35 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
