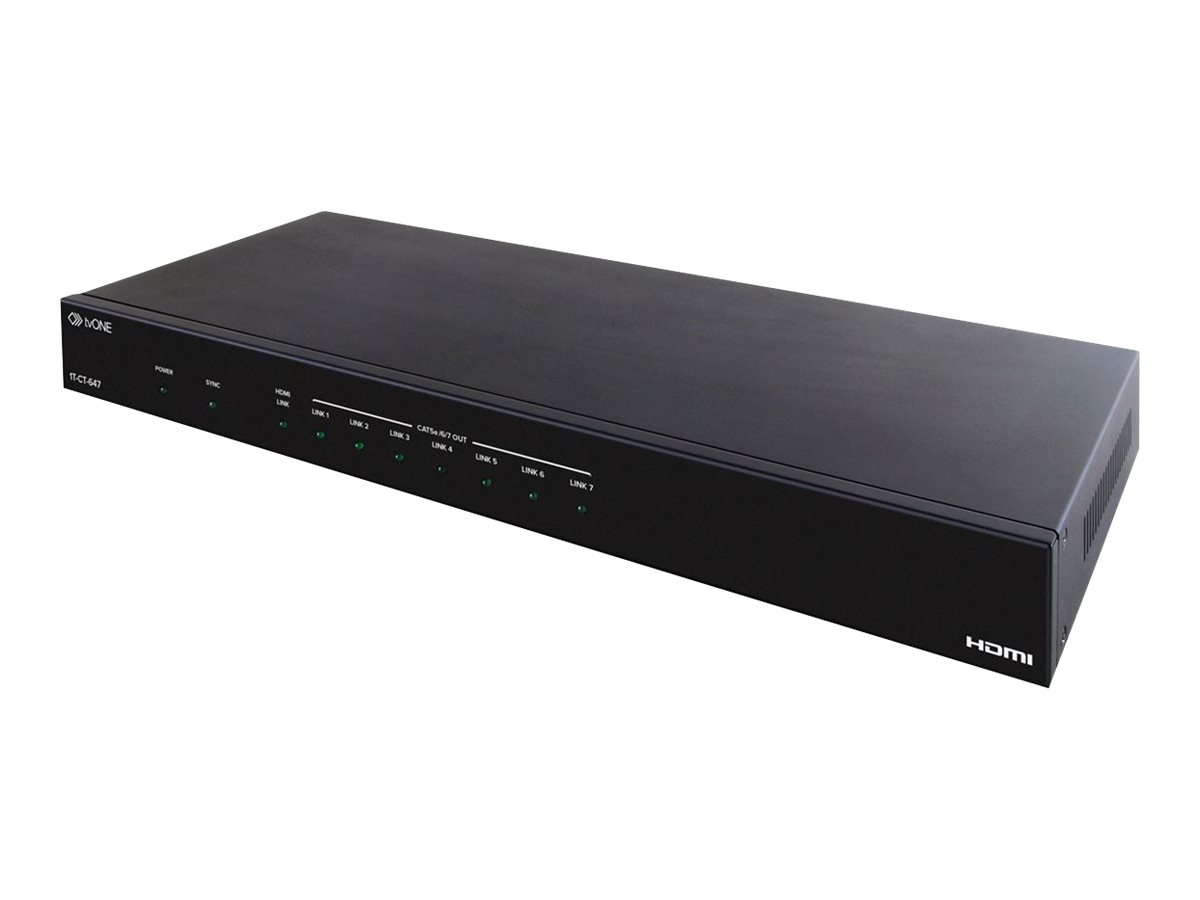

Video/audio extender - transmitter - 7 ports - up to 197 ft - 1U
| Main Specifications | |
|---|---|
| Product Description | TV One 1T-CT-647 Transmitter - video/audio extender |
| Device Type | Video/audio extender (transmitter) |
| Ports Qty | 7 |
| Form Factor | External - 1U |
| Max Transfer Distance | 197 ft |
| Dimensions (WxDxH) | 19 in x 7 in x 1.7 in |
| Weight | 4.68 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio extender (transmitter) |
| Form Factor | External - 1U |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - Type A female ¦ 1 x HDMI (output) - Type A female ¦ 7 x network - RJ-45 female ¦ 1 x mini-USB ¦ 1 x IrDA (input) - mini jack female ¦ 1 x IrDA (output) - mini jack female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | UL, TUV GS, cUL, FCC, RoHS, PSE Mark |
| Networking | |
| Ports Qty | 7 |
| Connectivity Technology | Wired |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Video Bandwidth | 300 MHz |
| Max Transfer Distance | 197 ft |
| Status Indicators | Power, link/activity |
| Features | HDCP compliant, 3D support, 4K resolution support |
| Compliant Standards | HDCP 1.1, DVI 1.0 |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 7 in |
| Height | 1.7 in |
| Weight | 4.68 lbs |
