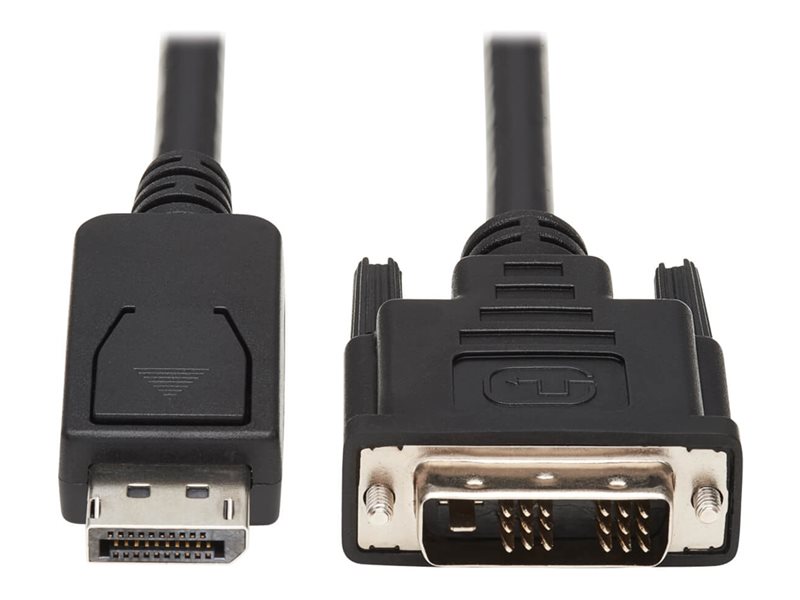

Adapter cable - single link - DisplayPort (M) latched to DVI-D (M) locking - DisplayPort 1.1/DisplayPort++ - 6 ft - passive, thumbscrews, 1080p support - black
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Safe-IT DisplayPort to DVI Antibacterial Adapter Cable (DP to DVI-D Single Link M/M), 1080p 60 Hz, Black, 6 ft. (1.8 m) - video adapter cable - DisplayPort to DVI-D - 1.8 m |
| Type | Video adapter cable - single link |
| Features | Passive cable, thumbscrews, 1080p support, strain relief, EMI/RFI protection, 24-bit deep color |
| Cable Length | 1.8 m |

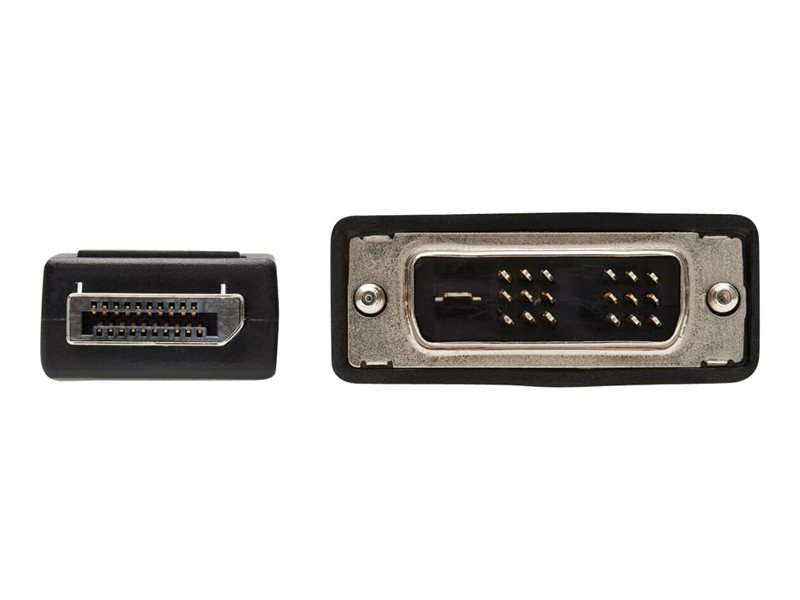

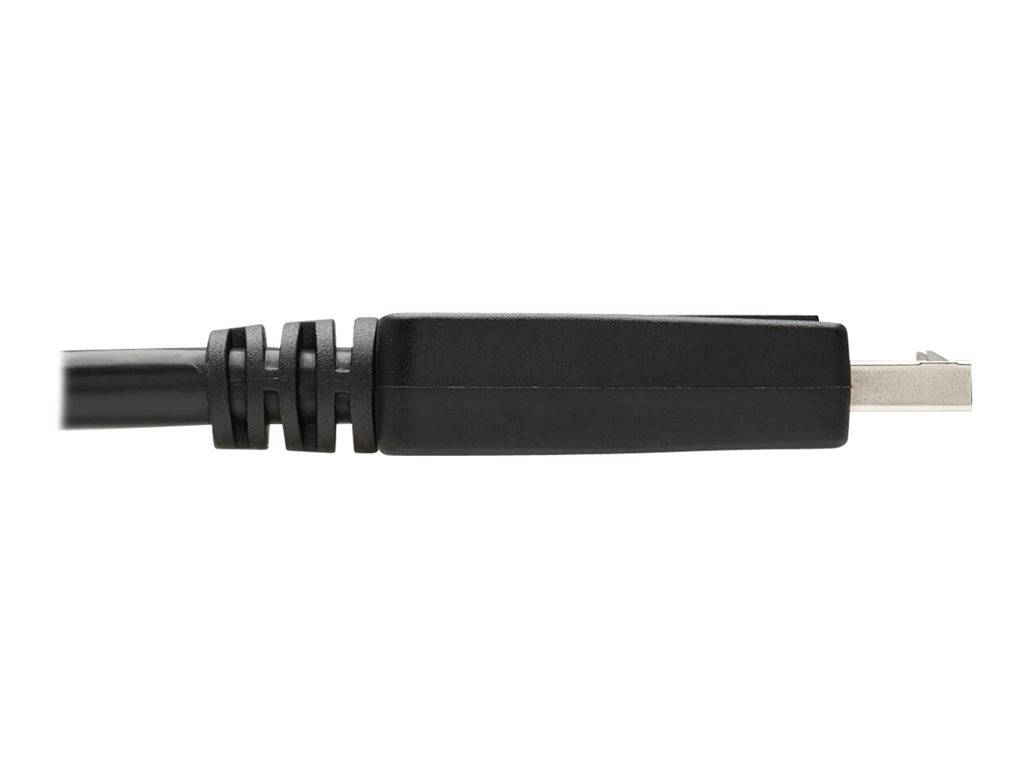

| Connector | 20 pin DisplayPort - male - latched |
| Connector (Second End) | 24+1 pin digital DVI - male - locking |
| Compliant Standards | DisplayPort 1.1/DisplayPort++ |
| Color | Black |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Type | Video adapter cable |
| Shielding Material | Foil with braid |
| Jacket Material | PVC/ABS |
| American Wire Gauge (AWG) | 28 |
| TMDS Links | Single link |
| Plated Connector | Nickel |
| Features | Passive cable, thumbscrews, 1080p support, strain relief, EMI/RFI protection, 24-bit deep color |
| Cable Length | 1.8 m |
| Outside Diameter | 0.29 in |
| Color | Black |
| Miscellaneous | |
| Compliant Standards | DisplayPort 1.1/DisplayPort++, FCC, RoHS, REACH, HDCP 1.3 |
| Connectivity | |
| Connector | 20 pin DisplayPort - male - latched |
| Connector (Second End) | 24+1 pin digital DVI - male - locking |
| Dimensions & Weight (Shipping) | |
| Service & Support | 3-year warranty |
