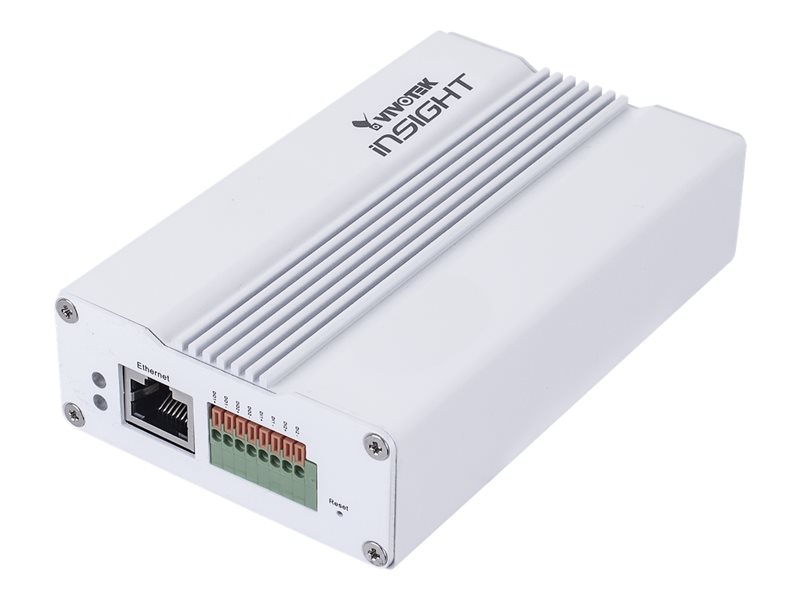

Edge computing device - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Vivotek IN Series IE9111-O - edge computing device |
| Device Type | Edge computing device |
| Form Factor | External |
| Processor | 1 x Qualcomm Kryo 300 - 2.5 GHz |
| RAM | 4 GB |
| Flash Memory | 16 GB |
| Graphics Processor | Qualcomm Adreno 615 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Power Over Ethernet (PoE) Supported | PoE Class 3 |
| Dimensions (WxDxH) | 4.8 in x 2.9 in x 1.2 in |
| Weight | 8.11 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Edge computing device |
| Width | 4.8 in |
| Depth | 2.9 in |
| Height | 1.2 in |
| Weight | 8.11 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000 (PoE) - RJ-45 ¦ 2 x digital input - terminal block ¦ 2 x digital output - terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, CB, EN 45545-2, EN 50155, IEC 60571 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Digital Video Format | H.264, H.265 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, NTP, DHCP, DNS, RTP, RTCP, RTSP, HTTP, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | MQTT |
| Features | 4K resolution support, Qualcomm Neural Processing SDK support, ONNX support, TensorFlow support, Android NN support, Qualcomm Hexagon 685 DSP integrated |
| Compliant Standards | IEEE 802.3af |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE Class 3 |
| Power Device | Power injector |
| Power Consumption Operational | 12 Watt |
| Software / System Requirements | |
| OS Provided | S&ST OS (based on Android 8.1) |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 131 °F |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Qualcomm Kryo 300 2.5 GHz |
| Max Supported Qty | 1 |
| RAM | 4 GB |
| Flash Memory | 16 GB |
| Graphics Processor | Qualcomm Adreno 615 |
